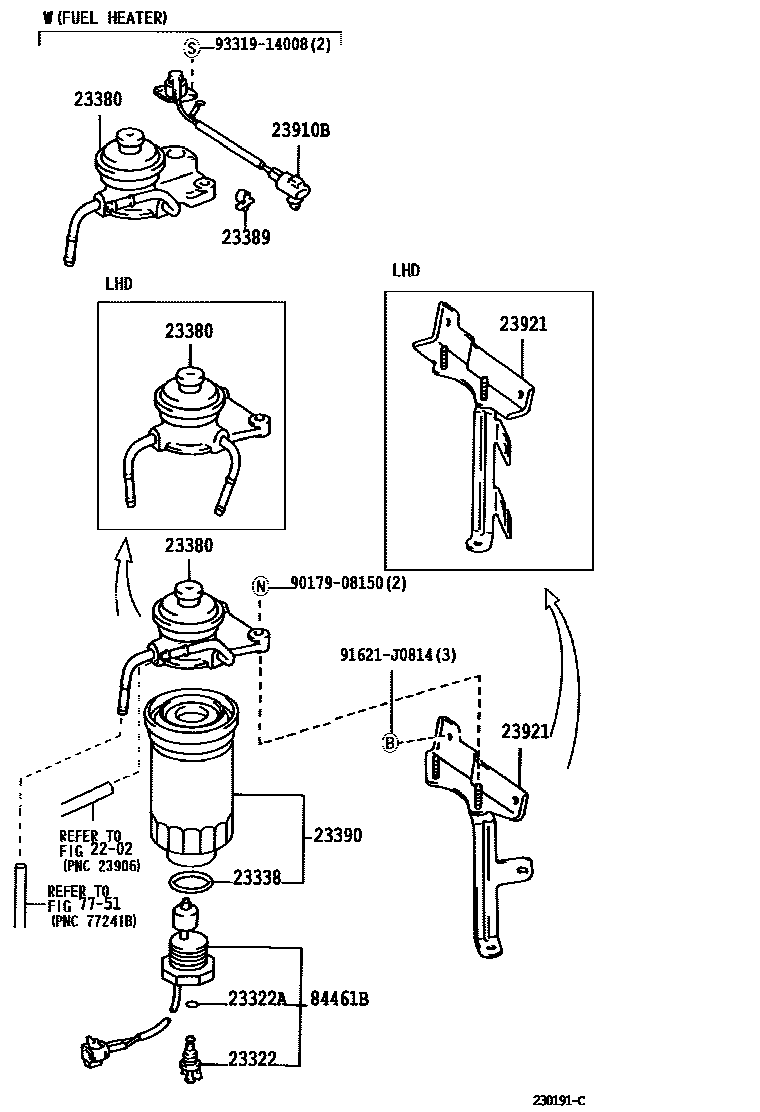

FUEL FILTER

0001 1 0002 1

2202

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i2KDFTV..KDN145,150,165,170,190199708-200108

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L#..LN145,150,165,170,190199708-200108

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L#..LN145,150,165,170,190199708-200108

23380CAP ASSY, FUEL FILTER

main23380-30100i2KDFTV..KDN145,150,165..RHD200108-200404

sub23380-30101

main23380-30110i2KDFTV..KDN165..LHD..DCB;2KDFTV..KDN145,150,170,190..LHD200108-200404

sub23380-30111

main23380-30120i2KDFTV..KDN145..LHD..DLX;2KDFTV..KDN150,165,170..LHD200108-200404

COLD SPEC

sub23380-30121

main23380-5B110i2LT..LN165..LHD..DCB;2L#..LN145,150,170,190..LHD199708-200108

sub23380-5B111

main23380-5B120i2L#..LN145,165..RHD199708-200108

W(FUEL HEATER)

sub23380-5B121

main23380-5B130i2L#..LN145,150,165,170,190..LHD199708-200108

W(FUEL HEATER)

sub23380-5B131

main23380-5B150i2L..LN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

sub23380-5B151

23389CLAMP, FUEL FILTER

main23389-64490i2LT..LN190199908-200404

main23389-64490i2L#..LN145,150,165,170199708-200108

W(FUEL HEATER)

23390ELEMENT ASSY, FUEL FILTER

main23390-30180i2KDFTV..KDN145,150,165,170,190200405

main23390-64450i2L#..LN145,150,165,170,190199708-200108

sub23390-33030

main23390-64480i2L..LN145..DCB..DLX..CBU200010-200108

TURKEY SPEC

main23390-64480i2KDFTV..KDN145,150,165,170,190200108-200405

23910BHEATER ASSY, FUEL

main23910-30010i2KDFTV..KDN145..LHD..DLX;2KDFTV..KDN150,165,170..LHD200108

main23910-54140i2L#..LN145,165..RHD199708-200108

W(FUEL HEATER)

main23910-54150i2LT..LN190199908-200108

main23910-54150i2L#..LN145,150,165,170..LHD199708-200108

W(FUEL HEATER)

main23910-67060i2KDFTV..KDN145,150,165..RHD200108

23921SUPPORT, FUEL FILTER

main23921-54451i2KDFTV..KDN145,150,165..RHD199708-200108

main23921-54462i2L#..LN145,150,165,170,190..LHD199708-200108

7751

84461BSWITCH, LEVEL WARNING

main84461-28040iLN145,150,165,170,190199708-200108

sub84461-28041

9017908150

main90179-08150

91621J0814

main91621-J0814

9331914008

main93319-14008

14 parts on this diagram · 2 diagrams in section
