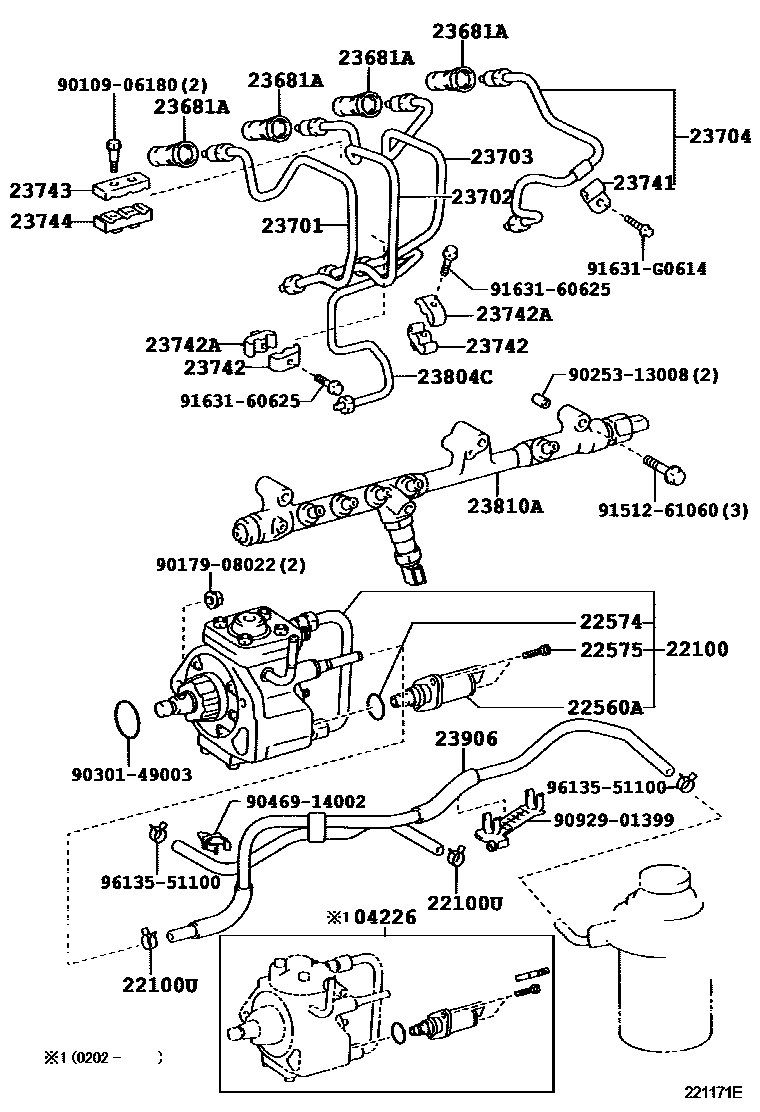

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

04226VALVE KIT, SUCTION CONTROL

main04226-30020i2KDFTV..KDN145,150,165,170,190200202-200508

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-30020i2KDFTV..KDN145,150,165,170,190200108-200202

main22100-30021i2KDFTV..KDN145,150,165,170,190200202

main22100-5B320i2L..LN145,150199708-199805

main22100-5B360i2L..LN150199711-199805

W(TACHO METER PICK UP SENSOR)

main22100-5B460i2LT..LN170;2LT..LN165..SR199708-199805

W(HIGH ALTITUDE COMPENSATOR & TACHO MEYER PICK UP SENSOR)

main22100-5B670i2LT..LN165,170..DLX199708-199805

W(HIGH ALTITUDE COMPENSATOR)

main22100-5B820i2L..LN145,150..LHD..DLX199908-200108

main22100-5B830i2L..LN145,150199805-200108

W(ENGINE IMMOBILIZER SYSTEM)

main22100-5B850i2LT..LN165,170..LHD199805-200108

main22100-5B860i2LT..LN165,170199805-200108

W(ENGINE IMMOBILIZER SYSTEM)

main22100-5B870i2LT..LN190199908-200108

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-13050×2i2L#..LN145,150,165,170,190199708-200108

main96135-51300×2i2KDFTV..KDN145,150,165,170,190200108

22560AVALVE ASSY, SUCTION CONTROL

main22560-30020i2KDFTV..KDN145,150,165,170,190200202-200508

22574GASKET, SUCTION CONTROL VALVE SOLENOID

main22574-30040i2KDFTV..KDN145,150,165,170,190200202-200508

22575BOLT, SUCTION CONTROL VALVE

main22395-54270×2i2KDFTV..KDN145,150,165,170,190200202-200508

23681ASEAL, NOZZLE HOLDER

main23681-30010×4i2KDFTV..KDN145,150,165,170,190200108

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-30010i2KDFTV..KDN145,150,165,170,190200108

main23701-54140i2L#..LN145,150,165,170,190199708-200108

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-30010i2KDFTV..KDN145,150,165,170,190200108

main23702-54140i2L#..LN145,150,165,170,190199708-200108

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-30010i2KDFTV..KDN145,150,165,170,190200108

main23703-54100i2L#..LN145,150,165,170,190199708-200108

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-39015i2KDFTV..KDN145,150,165,170,190200108

main23704-54100i2L#..LN145,150,165,170,190199708-200108

23741CLAMP, INJECTION PIPE, NO.1

main23741-30010i2KDFTV..KDN145,150,165,170,190200108

main23741-54030×2i2L#..LN145,150,165,170,190199708-200108

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010×2i2KDFTV..KDN145,150,165,170,190200108

23742ACLAMP, INJECTION PIPE, NO.3

main23742-58020×2i2KDFTV..KDN145,150,165,170,190200108

23743CLAMP, INJECTION PIPE, NO.3

main23743-30010i2KDFTV..KDN145,150,165,170,190200108-200205

main23743-30011i2KDFTV..KDN145,150,165,170,190200205

23744CLAMP, INJECTION PIPE, NO.4

main23743-30020i2KDFTV..KDN145,150,165,170,190200108-200205

main23743-30021i2KDFTV..KDN145,150,165,170,190200205

23804CPIPE SUB-ASSY, FUEL INLET

main23804-30020i2KDFTV..KDN145,150,165,170,190200108

23810ARAIL ASSY, COMMON

main23810-30070i2KDFTV..KDN145,150,165,170,190200108-200111

main23810-30071i2KDFTV..KDN145,150,165,170,190200111

23906HOSE SUB-ASSY, FUEL

main23906-30010i2KDFTV..KDN145,150,165..RHD200108

main23906-30020i2KDFTV..KDN145,150,165,170,190..LHD200108

main23906-54090i2L..LN145,150..LHD199708-200108

9010906180

main90109-06180

9017908022

main90179-08022

9025313008

main90253-13008

9030149003

main90301-49003

9046914002

main90469-14002

9092901399

main90929-01399

9151261060

main91512-61060

9163160625

main91631-60625

91631G0614

main91631-G0614

9613551100

main96135-51100

29 parts on this diagram · 4 diagrams in section
