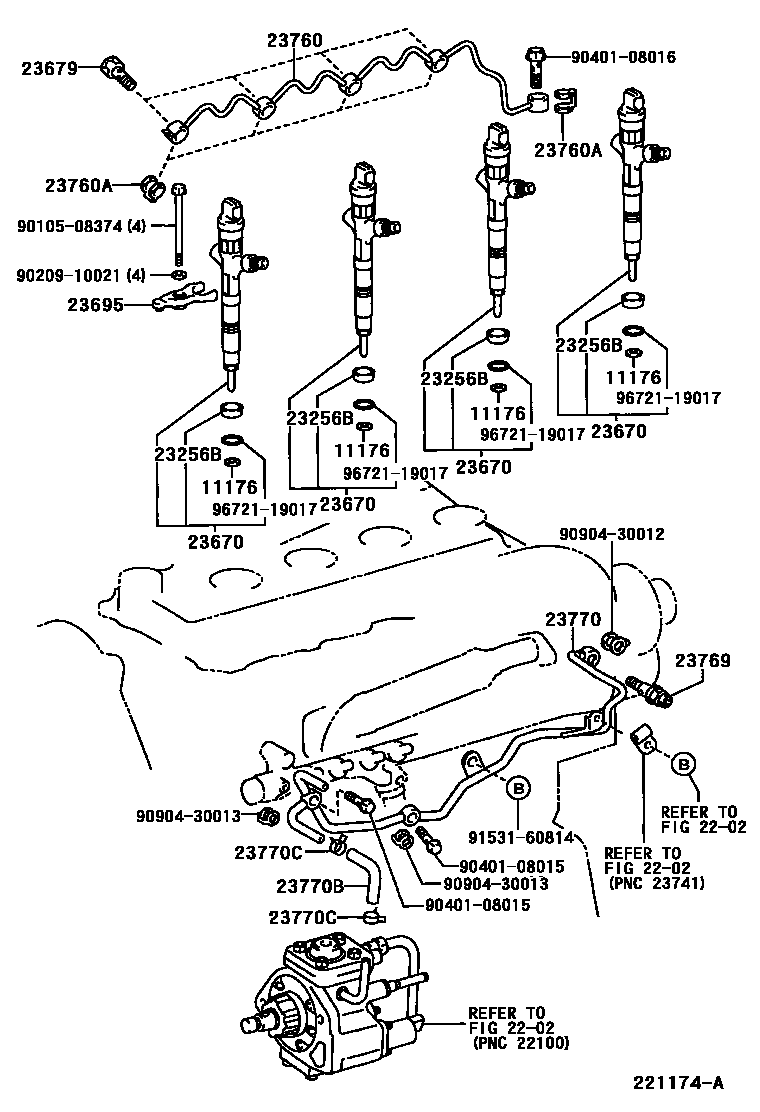

INJECTION NOZZLE

0001 1 0002 1

11176SEAT, INJECTION NOZZLE

main11176-30010i2KDFTV..KDN145,150,165,170,190¥410200108

sub11176-30011¥240

main11176-64010i2L#..LN145,150,165,170,190¥250199708-200108

2202

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-30010i2KDFTV..KDN145,150,165,170,190¥480200108

23670INJECTOR ASSY

main23670-39035i2KDFTV..KDN145,150,165,170,190¥80,100200108

sub23670-39036¥80,100

23679SCREW, INJECTOR FOLLOW

main23679-27020i2KDFTV..KDN145,150,165,170,190200108

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-30010i2KDFTV..KDN145,150,165,170,190¥1,390200108

sub23695-30011¥950

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-30020i2KDFTV..KDN145,150,165,170,190¥3,380200108

main23760-54030i2L#..LN145,150,165,170,190¥2,460199708-200108

23760AGASKET

main90904-30013i2KDFTV..KDN145,150,165,170,190¥300200108

23769VALVE, FUEL CHECK

main23769-30010i2KDFTV..KDN145,150,165,170,190¥2,210200108

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-30030i2KDFTV..KDN145,150,165,170,190¥6,300200108-200206

main23770-30031i2KDFTV..KDN145,150,165,170,190¥6,300200206

23770BHOSE, FUEL

main95333-04020i2L#..LN145,150,165,170,190¥510199708-200108

L=200(*H,L=120),ID=4

main95333-06020i2KDFTV..KDN145,150,165,170,190¥480200108-200508

L=200(*H,L=150)

sub95337-06020¥570

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96133-41000i2L#..LN145,150,165,170,190¥130199708-200108

sub96132-51000¥160

main96135-51100i2KDFTV..KDN145,150,165,170,190¥130200108

9010508374

main90105-08374¥260

9020910021

main90209-10021¥90

9040108015

main90401-08015¥320

9040108016

main90401-08016¥260

9090430012

main90904-30012¥360

9090430013

main90904-30013¥300

9153160814

main91531-60814¥130

9672119017

main96721-19017¥160

20 parts on this diagram · 2 diagrams in section
