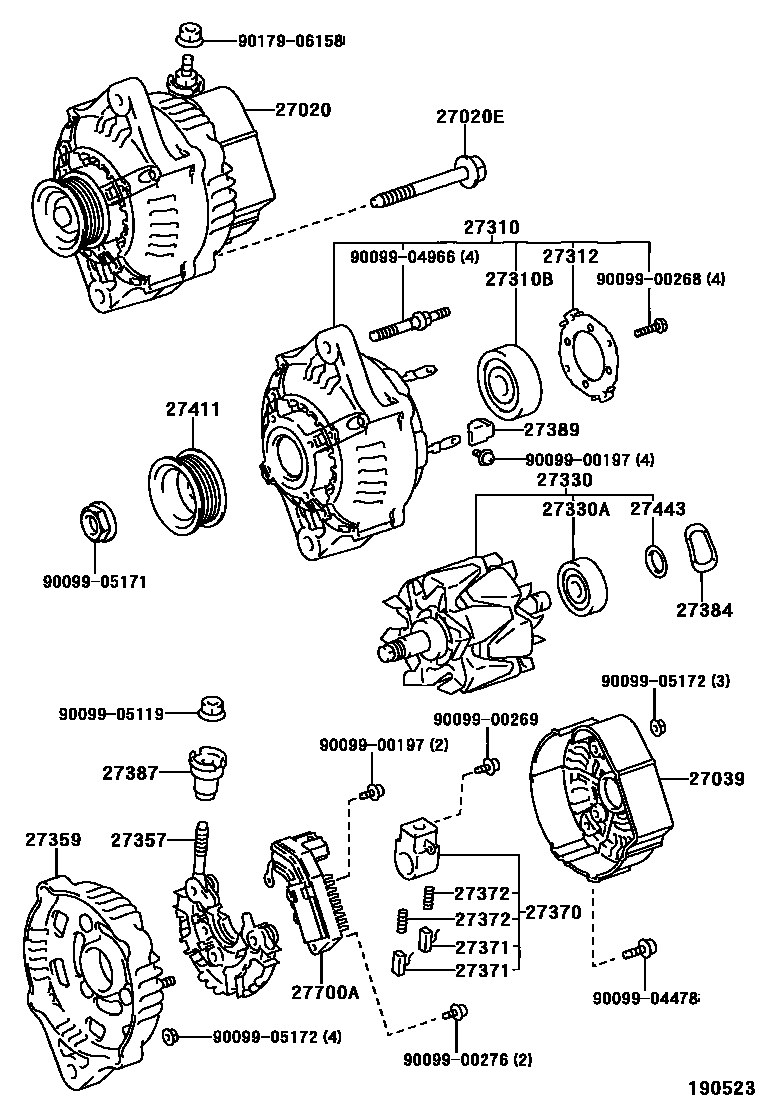

ALTERNATOR

0001 1 0002 1 0003 1

27020ALTERNATOR ASSY

main27060-30020i2KDFTV..KDN145,150,165,170,190200108

12V 70A

main27060-54290i2L#..LN145,150,165,170,190199708-200108

12V 70A

sub27060-54440

main27060-75190i2RZFE..RZN168,173199708-200108

12V 55A

27020EBOLT(FOR ALTERNATOR)

main90101-10231i2L..LN145,150..LHD;2LT..LN165..LHD..SCB;2LT..LN165,170..LHD..(DCB,XTR)..CBU199708-199812

W(POWER STEERING)

main90101-10231i2LT..LN165,170..(DCB,XTR)..IV3199805-199812

main90105-10092i2KDFTV..KDN145,150,165,170,190200108

main90105-10221i2RZFE..RZN168,173199708-200108

main90105-10239i2L#..LN145,150,165,170..LHD199812-200108

W(POWER STEERING)

main90105-10239i2LT..LN190199908-200108

main90105-10287i2L..LN145,150;2LT..LN165..RHD199708-200108

27039COVER, ALTERNATOR REAR END

main27039-16380i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54630i2L#..LN145,150,165,170,190199708-200108

sub27310-54500

main27310-75040i2RZFE..RZN168,173199708-200108

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i2L#..LN145,150,165,170,190199708-200108

main90099-10178i2RZFE..RZN168,173199708-200108

27312PLATE, RETAINER

main27312-64130i2L#..LN145,150,165,170,190199708-200108

main27312-70200i2RZFE..RZN168,173199708-200108

27330ROTOR ASSY, ALTERNATOR

main27330-11250i2RZFE..RZN168,173199708-200108

main27330-64130i2L#..LN145,150,165,170,190199708-200108

main27330-67100i2KDFTV..KDN145,150,165,170,190200108

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-13360i2RZFE..RZN168,173199708-200108

main27357-16380i2L#..LN145,150,165,170,190199708-200108

main27357-67100i2KDFTV..KDN145,150,165,170,190200108

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16182i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i2RZFE..RZN168,173199708-200108

main27370-58320i2L#..LN145,150,165,170,190199708-200108

27371BRUSH, ALTERNATOR

main27371-70300i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

27372SPRING, ALTERNATOR BRUSH

main27372-87501i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

27384WASHER

main27384-16380i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

27387INSULATOR, TERMINAL

main27387-70171i2L#,2RZFE..LN145,150,165,170,190,RZN173199708-200108

27389INSULATOR, TERMINAL

main27389-63020i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

27411PULLEY, ALTERNATOR

main27411-16150i2RZFE..RZN168,173199708-200108

27443COVER, ALTERNATOR BEARING

main27443-63020i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

27700AREGULATOR ASSY, GENERATOR

main27700-30070i2KDFTV..KDN145,150,165,170,190200108

main27700-50030i2L#,2RZFE..LN145,150,165,170,190,RZN168,173199708-200108

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158
