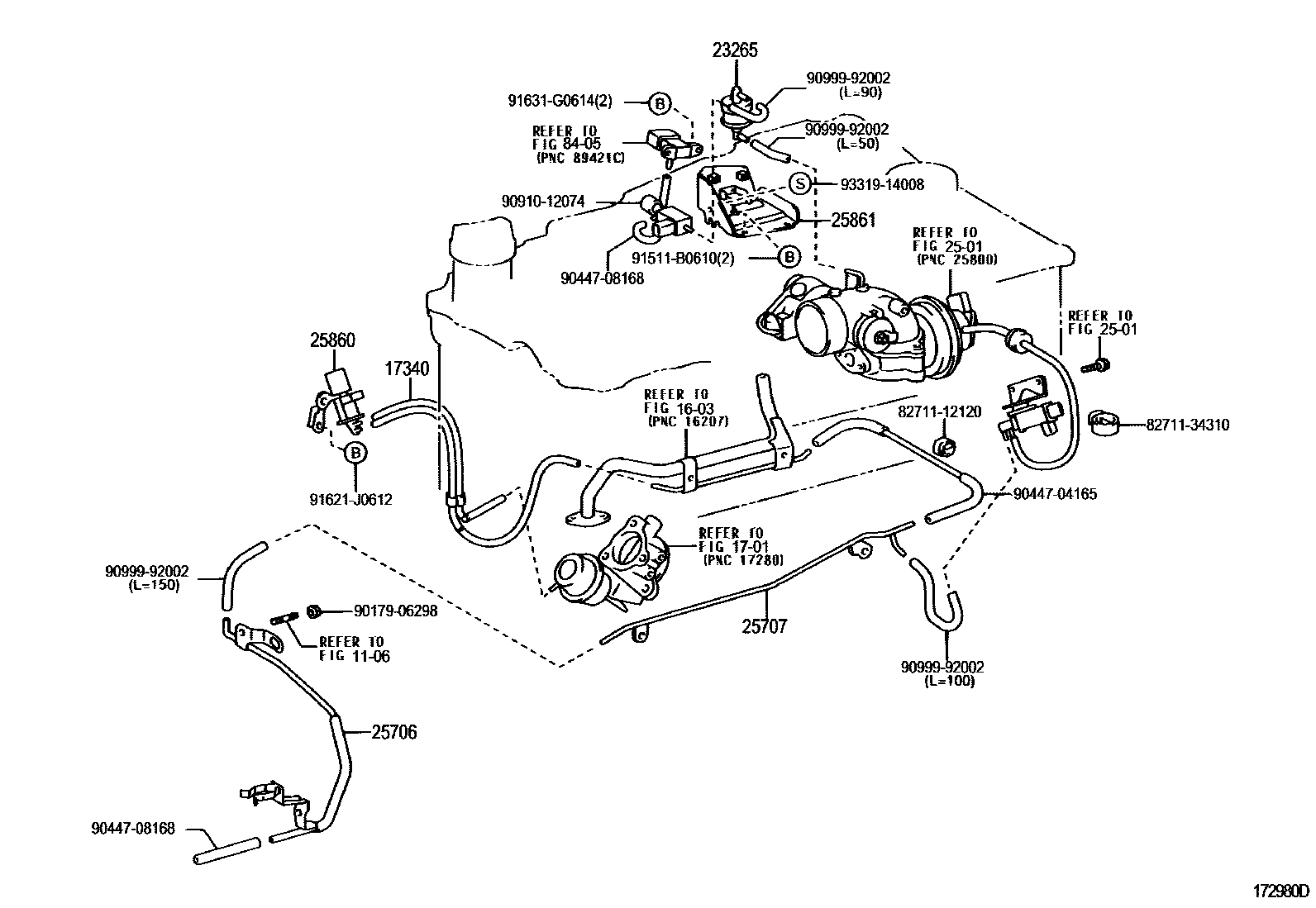

VACUUM PIPING

0001 1 0002 1 0003 1W(AIR CODITIONER) 0004 1 0005 1 0006 1 0007 1

1106

1603

1701

17340HOSE ASSY, VACUUM SWITCHING VALVE

main17340-30010i2KDFTV..KDN145,150,165,170,190200108

23265FILTER, GAS, NO.1

main90917-11033i2LT..LN165,170,190199708-200108

main90917-11036i2KDFTV..KDN145,150,165,170,190200108

2501

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-30020i2KDFTV..KDN145,150,165,170,190200108

main25706-54040i2L..LN145..RHD199708-200009

sub25706-54041

main25706-54041i2L..LN145,150200009-200108

main25706-54070i2LT..LN165,170,190199805-200108

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-67011i2KDFTV..KDN145,150,165,170,190200108

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30030i2KDFTV..KDN145,150,165,170,190200108

main25860-54150i2L..LN145,150..LHD199708-200108

main25860-54160i2LT..LN165,170..LHD199708-199805

main25860-54190i2LT..LN165,170,190..LHD199805-200108

25861BRACKET, VACUUM SWITCHING VALVE

main25862-30020i2KDFTV..KDN145,150,165,170,190200108

8405

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9017906298

main90179-06298

9044704165

main90447-04165

9044708168

main90447-08168

9091012074

main90910-12074

9099992002

main90999-92002

91511B0610

main91511-B0610

91621J0612

main91621-J0612

91631G0614

main91631-G0614

9331914008

main93319-14008

22 parts on this diagram · 7 diagrams in section
