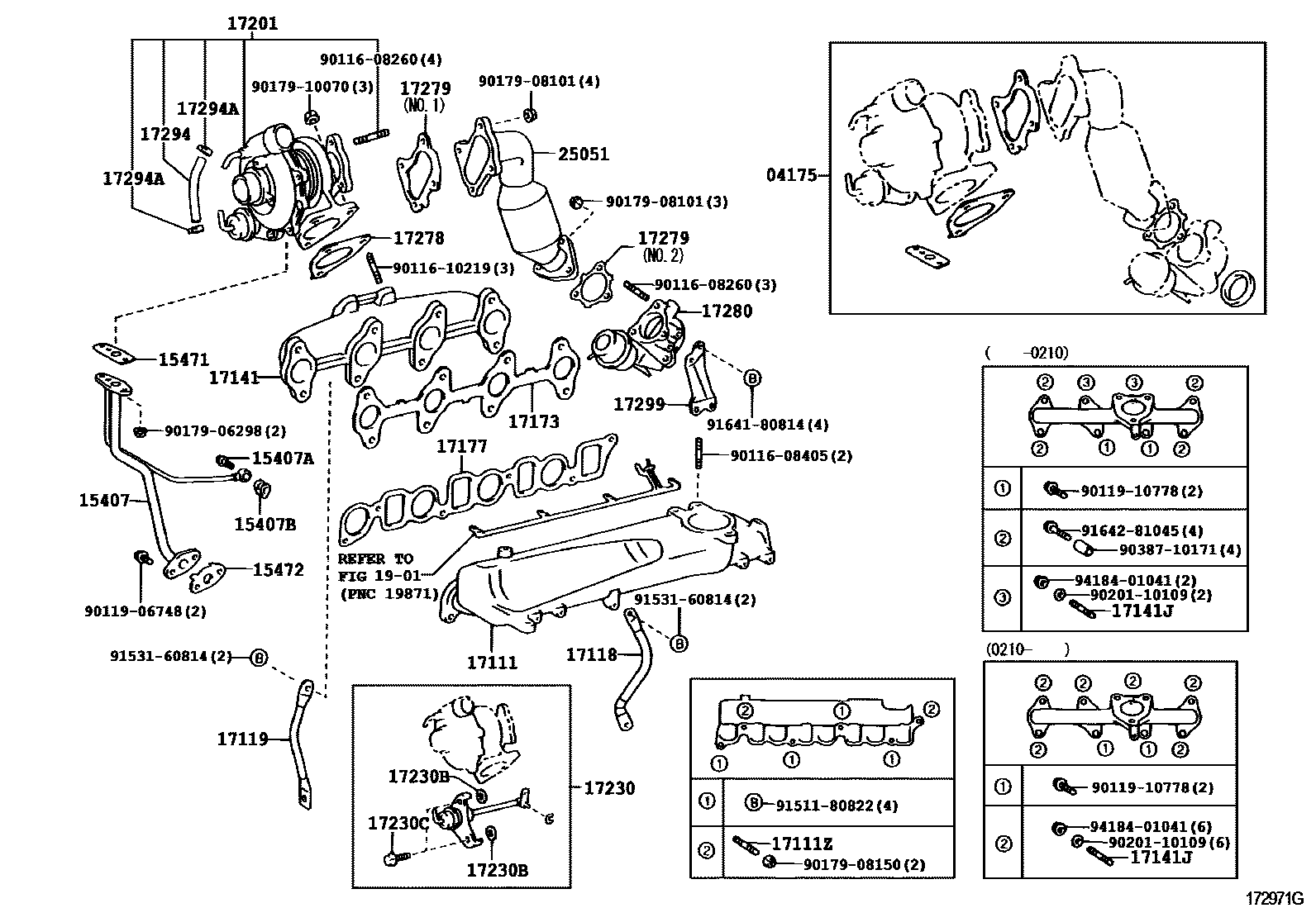

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04175GASKET KIT, TURBOCHARGER

main04175-30020i2KDFTV..KDN145,150,165,170,190200108

main04175-54021i2LT..LN165,170199708-199805

main04175-54030i2LT..LN165,170,190199805-200108

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-30030i2KDFTV..KDN145,150,165,170,190200108-200207

sub15407-30031

main15407-30031i2KDFTV..KDN145,150,165,170,190200207-200508

sub15407-30032

main15407-54040i2LT..LN165,170199708-199805

main15407-54041i2LT..LN165,170,190199805-200108

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i2LT..LN165,170,190199805-200108

main96341-11000i2LT..LN165,170199708-199805

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-10035i2LT..LN165,170199708-199805

main90904-30004i2LT..LN165,170,190199805-200108

15471GASKET, TURBO OIL INLET

main15471-30010i2KDFTV..KDN145,150,165,170,190200108

sub15471-30011

main15471-58010i2LT..LN165,170,190199708-200108

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-67010i2KDFTV..KDN145,150,165,170,190200108

sub15472-30010

17111MANIFOLD, INTAKE

main17101-54092i2L#..LN145,150,165,170,190199805-200108

main17101-54101i2L#..LN145,150,165,170199708-199805

main17111-30070i2KDFTV..KDN145,150,165,170,190200108-200202

sub17111-30071

main17111-30071i2KDFTV..KDN145,150,165,170,190200202

main17111-75031i2RZFE..RZN168,173199708-200108

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08220i2L#..LN145,150,165,170,190199708-200108

main92122-80822i2KDFTV..KDN145,150,165,170,190200108

17118STAY, MANIFOLD

main17118-30030i2KDFTV..KDN145,150,165,170,190200108

main17118-54040i2LT..LN165,170,190199708-200108

17119STAY, MANIFOLD, NO.2

main17118-30020i2KDFTV..KDN145,150,165,170,190200108

17141MANIFOLD, EXHAUST

main17141-30030i2KDFTV..KDN145,150,165,170,190200108-200210

sub17141-30031

sub90126-10017

sub90201-10109

sub94184-01041

main17141-30031i2KDFTV..KDN145,150,165,170,190200210

main17141-54100i2LT..LN165,170,190199805-200108

main17141-54111i2L..LN145,150199708-199805

main17141-54121i2L..LN145,150199805-200108

main17141-54140i2LT..LN165,170199708-199805

main17141-75070i2RZFE..RZN168,173199708-199908

main17141-75080i2RZFE..RZN168,173199908-200108

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-10017i2KDFTV..KDN145,150,165,170,190200108-200503

main90126-10037i2KDFTV..KDN145,150,165,170,190200503

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-30020i2KDFTV..KDN145,150,165,170,190200108

main17173-54030i2L..LN145,150199708-200108

main17173-54050i2LT..LN165,170,190199708-200108

main17173-75020i2RZFE..RZN168,173199708-200108

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-30010i2KDFTV..KDN145,150,165,170,190200108-200405

sub17177-30011

main17177-30011i2KDFTV..KDN145,150,165,170,190200405

main17177-54021i2L#..LN145,150,165,170,190199708-200108

main17177-75020i2RZFE..RZN168,173199708-200108

17201TURBOCHARGER SUB-ASSY

main17201-30030i2KDFTV..KDN145,150,165,170,190200108

main17201-54060i2LT..LN165,170199708-199805

main17201-54090i2LT..LN165,170,190199805-200108

17230ACTUATOR ASSY, W/BRACKET

main17230-39025i2KDFTV..KDN145,150,165,170,190200108

17230BWASHER, PLATE(FOR REPAIR ACTUATOR SET)

main90201-06042i2KDFTV..KDN145,150,165,170,190200108

T=0.5

main90201-06043i2KDFTV..KDN145,150,165,170,190200108

T=1.0

main90201-06044i2KDFTV..KDN145,150,165,170,190200108

T=2.0

main90201-06045i2KDFTV..KDN145,150,165,170,190200108

T=3.0

main90201-08081i2LT..LN165,170,190199708-200108

T=0.5

main90201-08082i2LT..LN165,170,190199708-200108

T=1.0

main90201-08086i2LT..LN165,170,190199708-200108

T=2.0

main90201-08087i2LT..LN165,170,190199708-200108

T=3.0

17230CBOLT, W/WASHER(FOR REPAIR ACTUATOR SET)

main91621-60620i2KDFTV..KDN145,150,165,170,190200108

main91621-60822i2LT..LN165,170,190199708-200108

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-54021i2LT..LN165,170,190199708-200108

main17278-67010i2KDFTV..KDN145,150,165,170,190200108

17279GASKET, TURBINE OUTLET ELBOW

main17279-30020i2KDFTV..KDN145,150,165,170,190200108

NO.1

main17279-30030i2KDFTV..KDN145,150,165,170,190200108

NO.2

sub17279-30031

main17279-54020i2LT..LN165,170,190199805-200108

main17279-64010i2LT..LN165,170199708-199805

17280VALVE ASSY, EXHAUST GAS CONTROL

main17280-30010i2KDFTV..KDN145,150,165,170,190200108

17294HOSE, ACTUATOR

main90445-12111i2LT..LN165,170,190199708-200108

main90445-12151i2KDFTV..KDN145,150,165,170,190200108

17294ACLIP(FOR ACTUATOR HOSE)

main96132-41100i2LT..LN165,170,190199708-200108

sub96132-51100

main96132-51100i2KDFTV..KDN145,150,165,170,190200108

17299STAY, TURBINE OUTLET ELBOW

main17299-30020i2KDFTV..KDN145,150,165,170,190200108

1901

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-30020i2KDFTV..KDN145,150,165,170,190200108

*114=TOYOTA/30020/N

9011608260

main90116-08260

9011608405

main90116-08405

9011610219

main90116-10219

9011906748

main90119-06748

9011910778

main90119-10778

9017906298

main90179-06298

9017908101

main90179-08101

9017908150

main90179-08150

9017910070

main90179-10070

9020110109

main90201-10109

9038710171

main90387-10171

9151180822

main91511-80822

9153160814

main91531-60814

9164180814

main91641-80814

9164281045

main91642-81045

9418401041

main94184-01041

42 parts on this diagram · 6 diagrams in section
