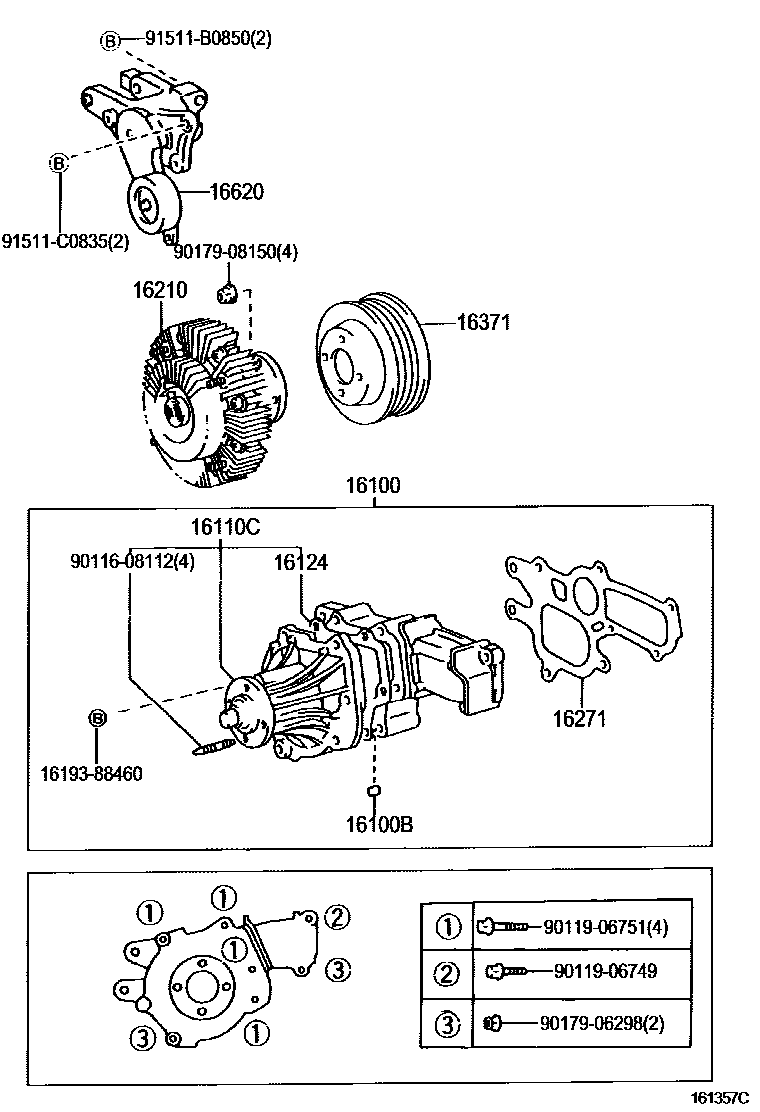

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-59255i2L..LN145..RHD..IV3199708-200008

sub16100-59256

main16100-59257i2L#..LN145,150,165,170,190200008-200108

main16100-69356i2KDFTV..KDN145,150,165,170,190200108-200508

sub16100-69357

main16100-79255i2RZFE..RZN168,173199708-200108

sub16100-79445

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i2KDFTV..KDN145,150,165,170,190200108

16110CPUMP ASSY, WATER, W/O COVER

main16110-69045i2KDFTV..KDN145,150,165,170,190200108

16124GASKET, WATER PUMP COVER

main16124-67010i2KDFTV..KDN145,150,165,170,190200108

main16124-75030i2RZFE..RZN168,173199708-200108

16210COUPLING ASSY, FLUID

main16210-30010i2KDFTV..KDN145,150,165,170,190200108

sub16210-30011

main16210-54210i2L#..LN145,150,165,170199708-200108

main16210-54230i2LT..LN190199908-200108

main16210-75060i2RZFE..RZN168,173199708-200108

16271GASKET, WATER PUMP

main16271-54020i2L#..LN145,150,165,170,190199708-200008

sub16271-54030

main16271-54030i2L#..LN145,150,165,170,190200008-200108

main16271-67020i2KDFTV..KDN145,150,165,170,190200108

16371PULLEY, FAN

main16371-30020i2KDFTV..KDN145,150,165,170,190200108

main16371-54030i2L#..LN145,150,165,170,190199708-200108

main16371-75030i2RZFE..RZN168,173199708-200108

16620TENSIONER ASSY, V-RIBBED BELT

main16620-30020i2KDFTV..KDN145,150,165,170,190200108-200308

sub16620-30030

main16620-30030i2KDFTV..KDN145,150,165,170,190200308-200408

sub16620-30031

main16620-30031i2KDFTV..KDN145,150,165,170,190200408

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9011608112

main90116-08112

9011906749

main90119-06749

9011906751

main90119-06751

9017906298

main90179-06298

9017908150

main90179-08150

91511B0850

main91511-B0850

91511C0835

main91511-C0835

16 parts on this diagram · 3 diagrams in section
