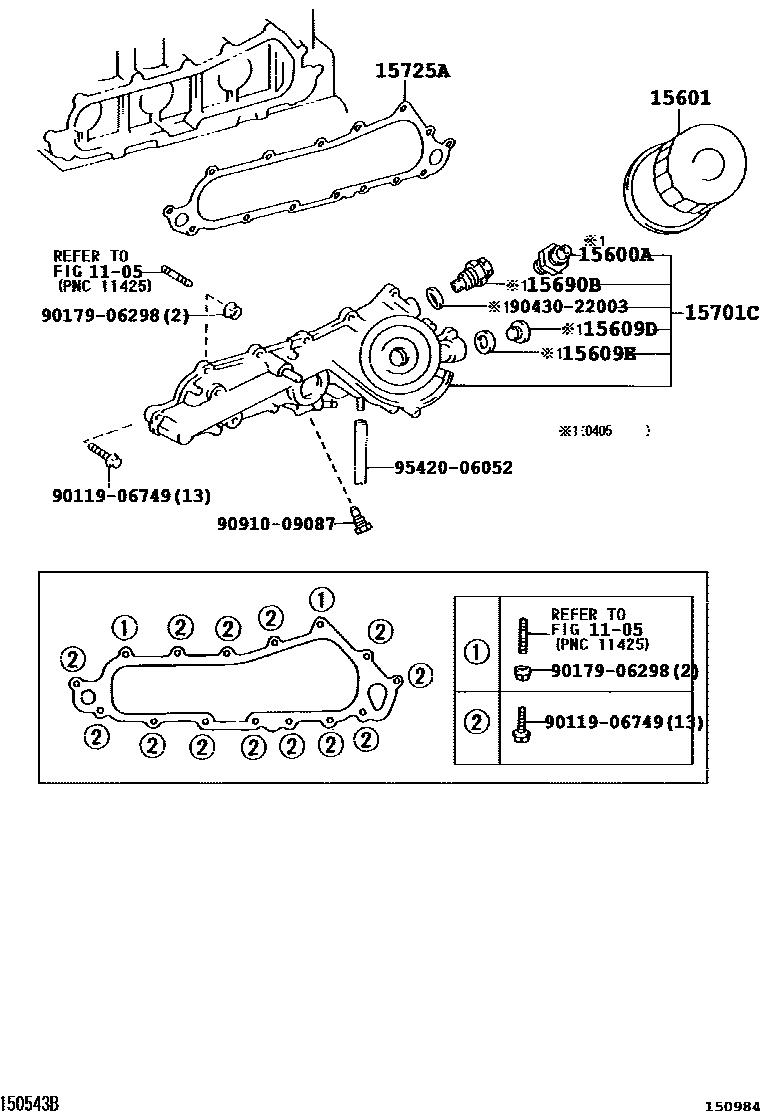

OIL FILTER

0001 1 0002 1 0003 1 0004 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54021i2L#..LN145,150,165,170,190199708-200108

main90404-19002i2KDFTV..KDN145,150,165,170,190200405

15601FILTER SUB-ASSY, OIL

main90915-20001i2RZFE..RZN168,173199708-199908

sub90915-20003

main90915-20003i2RZFE..RZN168,173199908-200108

sub90915-20005

main90915-30002i2L#..LN145,150,165,170,190199708-200108

main90915-40001i2KDFTV..KDN145,150,165,170,190200108-200408

sub90915-20003

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54072i2L..LN145,150199708-200108

main15609-54101i2LT..LN165,170199708-199805

main15609-54102i2LT..LN165,170,190199805-200108

main15609-75010i2RZFE..RZN168,173199708-200108

sub15609-75050

sub90404-19015

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i2KDFTV..KDN145,150,165,170,190200405

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i2KDFTV..KDN145,150,165,170,190200405

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i2KDFTV..KDN145,150,165,170,190200405

sub15690-64011

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30030i2KDFTV..KDN145,150,165,170,190200108-200405

sub15701-30031

sub95420-06052

main15701-30031i2KDFTV..KDN145,150,165,170,190200405

15725AGASKET, OIL COOLER COVER

main15725-67010i2KDFTV..KDN145,150,165,170,190200108

9011906749

main90119-06749

9017906298

main90179-06298

9043022003

main90430-22003

9091009087

main90910-09087

9542006052

main95420-06052

14 parts on this diagram · 4 diagrams in section
