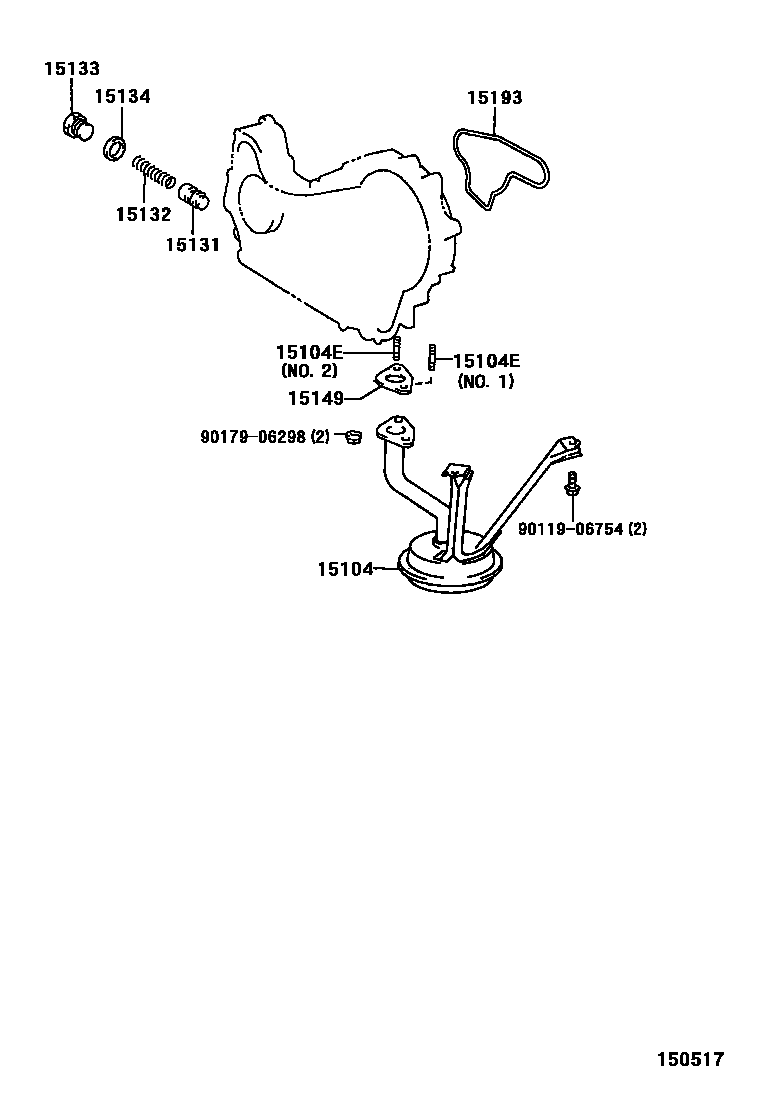

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-30020i2KDFTV..KDN145,150200108

main15104-54170i2LT..LN165,170,190199708-200108

main15104-54220i2L..LN145,150199708-200108

main15104-67050i2KDFTV..KDN165,170,190200108

main15104-75080i2RZFE..RZN168,173199708-200108

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i2KDFTV..KDN145,150200108

NO.1 & NO.2

main90116-06140i2KDFTV..KDN165,170,190200108

NO.1

main92122-40816i2L#..LN145,150,165,170,190199708-200108

main92122-60650i2KDFTV..KDN165,170,190200108

NO.2

15131VALVE, OIL PUMP RELIEF

main15131-24010i2RZFE..RZN168,173199708-200108

main15131-46040i2KDFTV..KDN145,150,165,170,190200108-200508

main15131-54010i2L#..LN145,150,165,170,190199708-200108

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i2KDFTV..KDN145,150,165,170,190200108-200508

main15132-54010i2L#..LN145,150,165,170,190199708-200108

main15132-75010i2RZFE..RZN168,173199708-200108

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2KDFTV..KDN145,150,165,170,190200108-200508

main15133-54010i2L#..LN145,150,165,170,190199708-200108

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i2KDFTV..KDN145,150,165,170,190200108-200508

15149GASKET, OIL STRAINER FLANGE

main15149-67010i2KDFTV..KDN145,150,165,170,190200108

15193GASKET, OIL PUMP

main15193-67011i2KDFTV..KDN145,150,165,170,190200108

9011906754

main90119-06754

9017906298

main90179-06298

10 parts on this diagram · 3 diagrams in section
