CAMSHAFT & VALVE

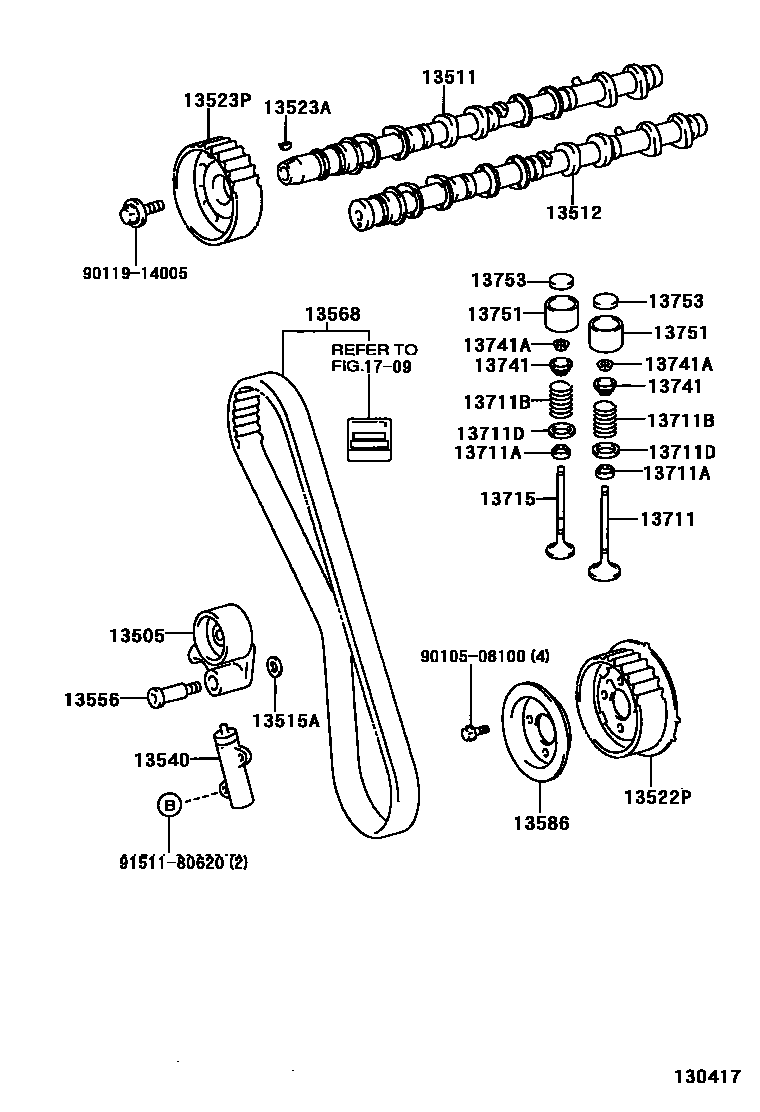

Parts diagram
13505IDLER SUB-ASSY, TIMING BELT, NO.1
main13505-54021i199708-200108
main13505-67040i200108-200406
sub13505-67041
main13505-67041i200406
sub13505-67042
13511CAMSHAFT
main13501-30030i200108
main13501-54050i199708-200108
main13501-54060i199708-199805
main13501-54070i199805-200108
main13501-75030i199708-200108
sub13501-75903
13512CAMSHAFT, NO.2
main13502-30020i200108
main13502-75010i199708-200108
sub13502-75901
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
main90201-10124i200108
13522PPULLEY, PUMP DRIVE SHAFT
main13524-30010i200108
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-75020i199708-200108
13523AKEY, WOODRUFF(FOR TIMING GEAR)
main90280-05004i199708-200108
13523PPULLEY, CAMSHAFT TIMING
main13523-17010i200108
main13523-54040i199708-200108
13540TENSIONER ASSY, CHAIN, NO.1
main13540-67020i200108
main13540-75020i199708-200108
13556SHAFT, TIMING BELT IDLER
main13556-67010i200108
13568BELT, TIMING
main13568-39015i200108
sub13568-39016
main13568-59066i199708-200108
sub13568-59067
sub13568-59106
13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2
main13586-17020i200108
13711VALVE, INTAKE
main13711-17010i199708-199805
main13711-30040i200108
main13711-54020i199708-199805
main13711-54030i199805-200108
main13711-54040i199805-200108
main13711-75060i199708-200108
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02090i199708-200108
NO.1
main90913-02103i199708-200108
NO.2
main90913-02117i199708-200108
main90913-02121i200108
13711BSPRING, COMPRESSION(FOR INNER)
main90501-31017i199708-200108
main90504-49001i199708-200108
main90905-01077i200108
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
main90201-16023i200108
main90201-23003i199708-200108
13715VALVE, EXHAUST
main13715-17010i199708-199805
main13715-30040i200108
main13715-54040i199708-199805
main13715-54050i199805-200108
main13715-54060i199805-200108
main13715-75050i200005-200108
main13715-76030i199708-200005
13741RETAINER, VALVE SPRING
main13741-15020i200108
main13741-46020i199708-200108
main13741-54020i199708-200108
13741ALOCK, VALVE SPRING RETAINER
main90913-03014i199708-200108
main90913-03021i199708-200108
13751LIFTER, VALVE
main13751-46030i200205
T=5.06
main13751-46040i200205
T=5.08
main13751-46050i200205
T=5.10
main13751-46060i200205
T=5.12
main13751-46070i200205
T=5.14
main13751-46080i200205
T=5.16
main13751-46090i200205
T=5.18
main13751-46100i200205
T=5.20
main13751-46110i200205
T=5.22
main13751-46120i200205
T=5.24
main13751-46130i200205
T=5.26
main13751-46140i200205
T=5.28
main13751-46150i200205
T=5.30
main13751-46160i200205
T=5.32
main13751-46170i200205
T=5.34
main13751-46180i200205
T=5.36
main13751-46190i200205
T=5.38
main13751-46200i200205
T=5.40
main13751-46210i200205
T=5.42
main13751-46220i200205
T=5.44
main13751-46230i200205
T=5.46
main13751-46240i200205
T=5.48
main13751-46250i200205
T=5.50
main13751-46260i200205
T=5.52
main13751-46270i200205
T=5.54
main13751-46280i200205
T=5.56
main13751-46290i200205
T=5.58
main13751-46300i200205
T=5.60
main13751-46310i200205
T=5.62
main13751-46320i200205
T=5.64
main13751-46330i200205
T=5.66
main13751-46340i200205
T=5.68
main13751-46350i200205
T=5.70
main13751-46360i200205
T=5.72
main13751-46370i200205
T=5.74
main13751-54010i199708-200108
main13751-74020i199708-200205
13753SHIM, VALVE ADJUSTING
main13753-30010i200108-200205
T=2.525
main13753-30020i200108-200205
T=2.550
main13753-30030i200108-200205
T=2.575
main13753-30040i200108-200205
T=2.600
main13753-30050i200108-200205
T=2.625
main13753-30060i200108-200205
T=2.650
main13753-30070i200108-200205
T=2.675
main13753-30080i200108-200205
T=2.700
main13753-30090i200108-200205
T=2.725
main13753-30100i200108-200205
T=2.750
main13753-30110i200108-200205
T=2.775
main13753-30120i200108-200205
T=2.800
main13753-30130i200108-200205
T=2.825
main13753-30140i200108-200205
T=2.850
main13753-30150i200108-200205
T=2.875
main13753-30160i200108-200205
T=2.900
main13753-30170i200108-200205
T=2.925
main13753-30180i200108-200205
T=2.950
main13753-30190i200108-200205
T=2.975
main13753-30200i200108-200205
T=3.000
main13753-30210i200108-200205
T=3.025
main13753-30220i200108-200205
T=3.050
main13753-30230i200108-200205
T=3.075
main13753-30240i200108-200205
T=3.100
main13753-30250i200108-200205
T=3.125
main13753-30260i200108-200205
T=3.150
main13753-30270i200108-200205
T=3.175
main13753-30280i200108-200205
T=3.200
main13753-30290i200108-200205
T=3.225
main13753-30300i200108-200205
T=3.250
main13753-30310i200108-200205
T=3.275
main13753-30320i200108-200205
T=3.300
main13753-54010i199708-200108
T=2.50,MARK=T01
main13753-54060i199708-200108
T=2.60,MARK=T06
main13753-54110i199708-200108
T=2.70,MARK=T11
main13753-54160i199708-200108
T=2.80,MARK=T16
main13753-54210i199708-200108
T=2.90,MARK=T21
main13753-54260i199708-200108
T=3.00,MARK=T26
main13753-54310i199708-200108
T=3.10,MARK=T31
main13753-54360i199708-200108
T=3.20,MARK=T36
main13753-54410i199708-200108
T=3.30,MARK=T41
main13753-54420i199708-200108
T=2.55,MARK=T42
main13753-54430i199708-200108
T=2.65,MARK=T43
main13753-54440i199708-200108
T=2.75,MARK=T44
main13753-54450i199708-200108
T=2.85,MARK=T45
main13753-54460i199708-200108
T=2.95,MARK=T46
main13753-54470i199708-200108
T=3.05,MARK=T47
main13753-54480i199708-200108
T=3.15,MARK=T48
main13753-54490i199708-200108
T=3.25,MARK=T49
main13753-74010i199708-200108
T=2.50
main13753-74030i199708-200108
T=2.55
main13753-74050i199708-200108
T=2.60
main13753-74070i199708-200108
T=2.65
main13753-74090i199708-200108
T=2.70
main13753-74110i199708-200108
T=2.75
main13753-74130i199708-200108
T=2.80
main13753-74150i199708-200108
T=2.85
main13753-74170i199708-200108
T=2.90
main13753-74190i199708-200108
T=2.95
main13753-74210i199708-200108
T=3.00
main13753-74230i199708-200108
T=3.05
main13753-74250i199708-200108
T=3.10
main13753-74270i199708-200108
T=3.15
main13753-74290i199708-200108
T=3.20
main13753-74310i199708-200108
T=3.25
main13753-74330i199708-200108
T=3.30
1709
9010508100
main90105-08100
9011914005
main90119-14005
9151180620
main91511-80620

25 parts on this diagram · 3 diagrams in section
