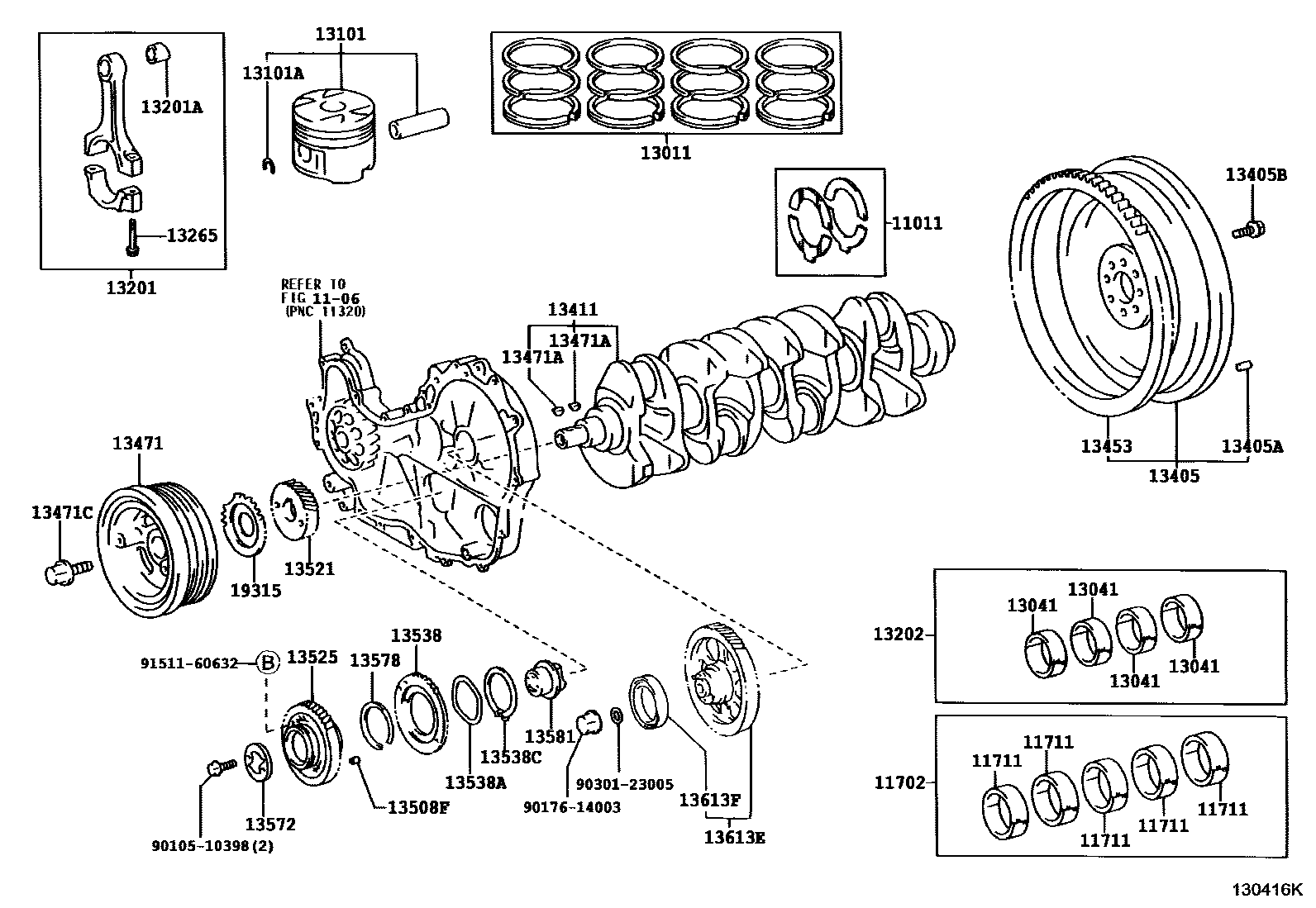

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD
STD
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
1106
11711BEARING, CRANKSHAFT
MARK 2,REFER REPAIR MANUAL
sub11701-30020
MARK 3,REFER REPAIR MANUAL
sub11701-30020
MARK 4,REFER REPAIR MANUAL
sub11701-30020
MARK 5,REFER REPAIR MANUAL
sub11701-30020
MARK 6,REFER REPAIR MANUAL
sub11701-30020
13011RING SET, PISTON
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
MARK 1,MARK 1
MARK 2,MARK 2
MARK 3,MARK 3
MARK 2,REFER REPAIR MANUAL
sub13041-30020
MARK 3,REFER REPAIR MANUAL
sub13041-30020
MARK 4,REFER REPAIR MANUAL
sub13041-30020
MARK 5,REFER REPAIR MANUAL
sub13041-30020
MARK 6,REFER REPAIR MANUAL
sub13041-30020
REFER TO REPAIR MANUAL,MARK 4,MARK 4
sub13041-75022
REFER TO REPAIR MANUAL,MARK 5,MARK 5
sub13041-75022
REFER TO REPAIR MANUAL,MARK 6,MARK 6
sub13041-75022
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1,REFER REPAIR MANUAL
sub13101-30081
STD,MARK 2,REFER REPAIR MANUAL
sub13101-30081
STD,MARK 3,REFER REPAIR MANUAL
sub13101-30081
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.50
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
L=23,OD=8
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
(L)
TYPE B:REFER TO ILLUSTRATION
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13508FPIN, STRAIGHT(FOR IDLE GEAR)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13538GEAR, IDLE SUB, NO.2
13538AWASHER, WAVE
13538CRING, SHAFT SNAP
13572PLATE, IDLE GEAR THRUST
13578SPRING, IDLE GEAR
13581SHAFT, IDLE GEAR, NO.1
13613EGEAR, INJECTION
13613FBEARING, RADIAL BALL
19315PLATE, CRANK ANGLE SENSOR, NO.1
9010510398
main90105-10398
9017614003
main90176-14003
9030123005
main90301-23005
9151160632
main91511-60632
36 parts on this diagram · 3 diagrams in section
