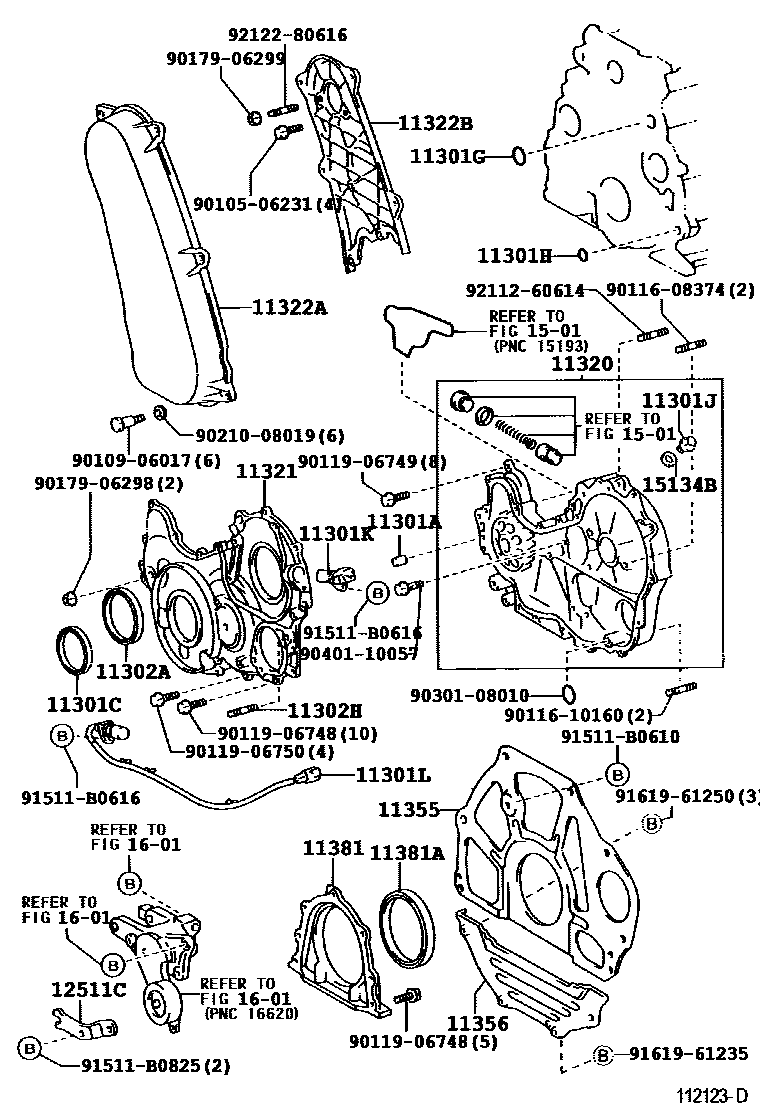

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-75030i2RZFE..RZN168,173199708-200108

main11311-54052i2L#..LN145,150,165,170,190199708-200108

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i2KDFTV..KDN145,150,165,170,190200108

L=18,OD=8

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42031i2L#..LN145,150,165,170,190199708-200108

main90311-48014i2RZFE..RZN168,173199708-200009

main90311-48020i2RZFE..RZN168,173200009-200108

NOK

main90311-48021i2RZFE..RZN168,173200009-200108

KOYO

sub90311-48020

main90311-50017i2KDFTV..KDN145,150,165,170,190200108

sub90311-50051

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i2KDFTV..KDN145,150,165,170,190200108

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i2KDFTV..KDN145,150,165,170,190200108

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i2KDFTV..KDN145,150,165,170,190200108-200403

11301KSENSOR, CRANK POSITION

main90919-05016i2RZFE..RZN168,173199708-200108

main90919-05052i2KDFTV..KDN145,150,165,170,190200108

sub90919-05025

11301LSENSOR, CRANK POSITION NO.2

main90919-05050i2KDFTV..KDN145,150,165,170,190200108-200407

main90919-05066i2KDFTV..KDN145,150,165,170,190200407

sub90919-05050

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54020i2L#..LN145,150,165,170,190199708-200108

sub11321-54021

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-65003i2KDFTV..KDN145,150,165,170,190200108

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08376i2KDFTV..KDN145,150,165,170,190200108-200508

sub90116-08377

11320CASE ASSY, TIMING GEAR

main11320-30021i2KDFTV..KDN145,150,165,170,190200108-200508

11321CASE, TIMING GEAR

main11321-30020i2KDFTV..KDN145,150,165,170,190200108

11322ACOVER, TIMING BELT, NO.1

main11332-30010i2KDFTV..KDN145,150,165,170,190200108-200406

sub11332-30011

main11332-30011i2KDFTV..KDN145,150,165,170,190200406

11322BCOVER, TIMING BELT, NO.2

main11322-30010i2KDFTV..KDN145,150,165,170,190200108

main11322-54021i2L#..LN145,150,165,170,190..LHD199708-200108

sub11322-54022

main11322-54031i2L#..LN145,165..RHD199708-200108

sub11322-54032

11355PLATE, REAR END

main11355-54030i2L#..LN145,150,165,170199708-200108

main11355-54110i2LT..LN190199908-200108

main11355-67010i2KDFTV..KDN145,150,165,170,190200108-200502

main11355-67011i2KDFTV..KDN145,150,165,170,190200502

main11355-75010i2RZFE..RZN168,173199708-200108

11356PLATE, REAR END, NO.2

main11356-30020i2KDFTV..KDN145,150,190200108-200508

sub11356-30021

main11356-67030i2KDFTV..KDN165,170200108-200508

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i2L#..LN145,150,165,170,190199708-199909

sub11381-54030

sub90116-08404

main11381-54030i2L#..LN145,150,165,170,190199909-200108

main11381-67020i2KDFTV..KDN145,150,165,170,190200108

main11381-75010i2RZFE..RZN168,173199708-200108

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-85008i2L#..LN145,150,165,170,190199708-200108

main90311-88003i2RZFE..RZN168,173199708-200009

main90311-88004i2RZFE..RZN168,173200009-200108

ARS

sub90311-88005

main90311-88005i2RZFE..RZN168,173200009-200108

NOK

sub90311-88006

main90311-95008i2KDFTV..KDN145,150,165,170,190200108

12511CBRACKET, ALTERNATOR

main12511-30030i2KDFTV..KDN145,150,165,170,190200108

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i2KDFTV..KDN145,150,165,170,190200108-200508

1601

9010506231

main90105-06231

9010906017

main90109-06017

9011608374

main90116-08374

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

9017906298

main90179-06298

9017906299

main90179-06299

9021008019

main90210-08019

9030108010

main90301-08010

9040110057

main90401-10057

91511B0610

main91511-B0610

91511B0616

main91511-B0616

91511B0825

main91511-B0825

9161961235

main91619-61235

9161961250

main91619-61250

9211260614

main92112-60614

9212280616

main92122-80616

42 parts on this diagram · 4 diagrams in section
