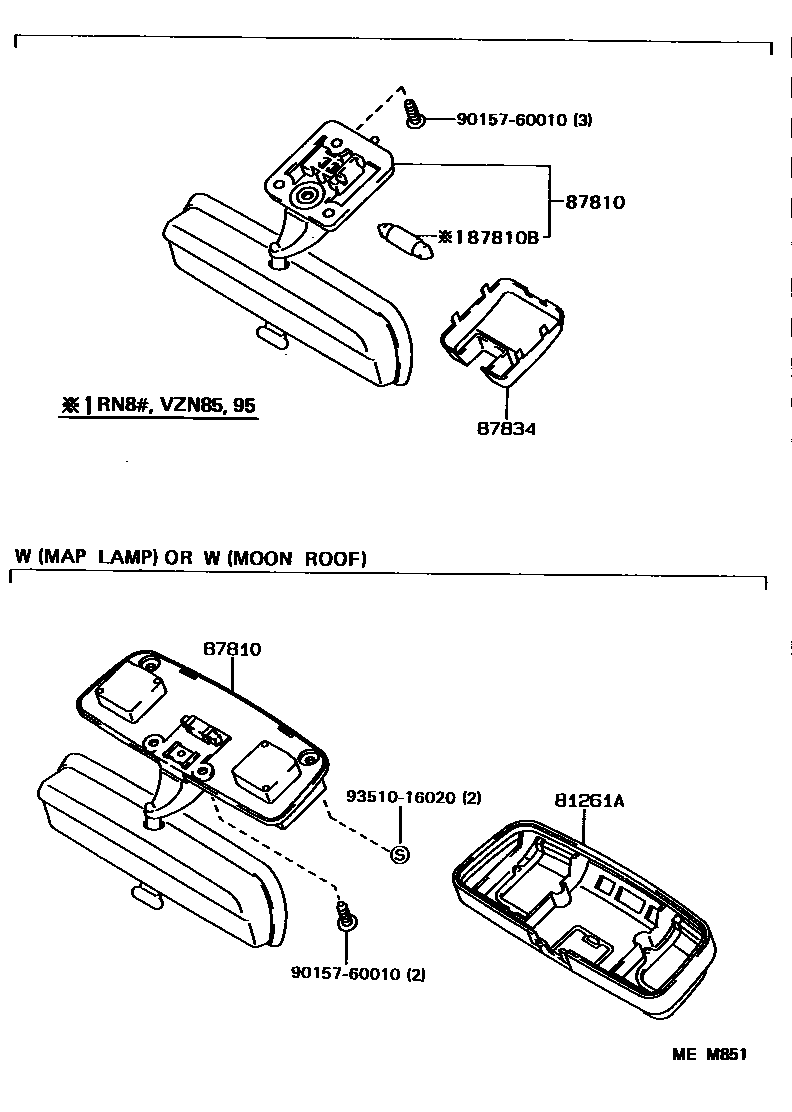

MIRROR

0001 1 0002 1

81261ALENS AND COVER, MAP LAMP

main81261-89104-02iRN12#,85,90,VZN120,90..SR5198808-199108

RED,TRIM3#

sub81261-89104

main81261-89104-03iRN12#,85,90,VZN120,90..SR5198808-199408

GRAY,TRIM1#

sub81261-89104

main81261-89104-04iRN12#,85,90,VZN120,90..SR5198808-199108

BLUE,TRIM8#

sub81261-89104

main81261-89104-06iRN12#,85,90,VZN120,90..SR5198808-199108

BROWN,TRIM4#

sub81261-89104

main81261-89104-E0iVZN120199108-199308

TAN,TRIM4#

sub81261-89104

main81261-89104-E1iVZN120199308-199408

OAK,TRIM4#

sub81261-89104

main81261-89104-J0iVZN120,90..SR5199108-199408

BLUE,TRIM8#

sub81261-89104

main87818-35010-B0iVZN120,90..SR5199408-199511

GRAY,TRIM1#

sub87818-35010

main87818-35010-E0iVZN120199408-199511

OAK,TRIM4#

sub87818-35010

main87818-35010-J0iVZN120199408-199511

BLUE,TRIM8#

sub87818-35010

87810MIRROR ASSY, INNER REAR VIEW

main87810-35020-B0iVZN120,90..SR5199408-199511

GRAY,TRIM1#

sub87810-35020

main87810-35020-E0iVZN120199408-199511

OAK,TRIM4#

sub87810-35020

main87810-35020-J0iVZN120199408-199511

BLUE,TRIM8#

sub87810-35020

main87810-89135iRN80..STD199008-199108

sub87810-89136

sub87810-89138

main87810-89135-02iRN80..5F..CBR;RN80..DLX..EFI;RN85,VZN85,95..DLX,STD198808-199108

RED,TRIM3#

sub87810-89135

sub87810-89136

sub87810-89138

main87810-89135-03iRN80..CBR;RN80..W..DLX;RN80..(4F,4HC)..EFI;RN85,VZN85,95..DLX,STD198808-199108

GRAY,TRIM1#

sub87810-89135

sub87810-89136

sub87810-89138

main87810-89135-04iRN80..CBR;RN80..W..DLX;RN80..(4F,4HC)..EFI;RN85,VZN85,95..DLX,STD198808-199108

BLUE,TRIM8#

sub87810-89135

sub87810-89136

sub87810-89138

main87810-89135-06iRN80..CBR;RN80..W..DLX;RN80..(4F,4HC)..EFI;RN85,VZN85,95..DLX,STD198808-199108

BROWN,TRIM4#

sub87810-89135

sub87810-89136

sub87810-89138

main87810-89135-B0iRN80,VZN85,95..STD199108-199501

SLATE GRAY,TRIM1#

sub87810-89135

sub87810-89136

sub87810-89138

main87810-89135-J1iRN80,VZN85,95..STD199109-199501

LIGHT BLUE,TRIM8#

sub87810-89135

sub87810-89136

sub87810-89138

main87810-89137-02iRN90,VZN90..DLX198808-199108

RED,TRIM3#

sub87810-89137

sub87810-89139

main87810-89137-03iRN90,VZN90..DLX198808-199108

GRAY,TRIM1#

sub87810-89137

sub87810-89139

main87810-89137-04iRN90,VZN90..DLX198808-199108

BLUE,TRIM8#

sub87810-89137

sub87810-89139

main87810-89137-06iRN90,VZN90..DLX198808-199108

BROWN,TRIM4#

sub87810-89137

sub87810-89139

main87810-89140iRN80..STD199008-199108

DAY/NIGHT TYPE

main87810-89140-02iRN8#,VZN85,95..(4HC,5F)..(DLX,STD)198808-199002

DAY/NIGHT TYPE,RED,TRIM3#

sub87810-89140

main87810-89140-02iRN80..5F..CBR;RN80..DLX..EFI;RN85,VZN85,95..DLX,STD199002-199108

DAY/NIGHT TYPE,RED,RED,TRIM3#

sub87810-89140

main87810-89140-02iRN85..SR5198808-199008

RED,TRIM3#

sub87810-89140

main87810-89140-03iRN80,VZN85,95..STD198808-199110

GRAY,TRIM1#

sub87810-89140

main87810-89140-03iRN8#,VZN85,95..DLX,STD198808-199002

DAY/NIGHT TYPE,GRAY,TRIM1#

sub87810-89140

main87810-89140-03iRN80..CBR;RN80..W..DLX;RN80..(4F,4HC)..EFI;RN85,VZN85,95..DLX,STD199002-199110

DAY/NIGHT TYPE,GRAY,GRAY,TRIM1#

sub87810-89140

main87810-89140-04iRN80..CBR;RN80..W..DLX;RN80..(4F,4HC)..EFI;RN85,VZN85,95..DLX,STD199002-199108

DAY/NIGHT TYPE,BLUE,BLUE,TRIM8#

sub87810-89140

main87810-89140-04iRN8#,VZN85,95..DLX,STD198808-199002

DAY/NIGHT TYPE,BLUE,TRIM8#

sub87810-89140

main87810-89140-04iRN85..SR5198808-199008

BLUE,TRIM8#

sub87810-89140

main87810-89140-06iRN8#,VZN85,95..DLX,STD198808-199002

DAY/NIGHT TYPE,BROWN,TRIM4#

sub87810-89140

main87810-89140-06iRN85..SR5198808-199008

BROWN,TRIM4#

sub87810-89140

main87810-89140-06iRN80..CBR;RN80..W..DLX;RN80..(4F,4HC)..EFI;RN85,VZN85,95..DLX,STD199002-199108

DAY/NIGHT TYPE,BROWN,BROWN,TRIM4#

sub87810-89140

main87810-89140-J0iRN8#,VZN85..DLX199108-199501

BLUE,TRIM8#

sub87810-89140

main87810-89140-J0iRN8#,VZN85..DLX199108-199501

DAY/NIGHT TYPE,BLUE,BLUE,TRIM8#

sub87810-89140

main87810-89140-S7iRN8#,VZN85,95199108-199501

DAY/NIGHT TYPE,SLATE GRAY,SLATE GRAY,TRIM1#

sub87810-89140

main87810-89140-S7iRN80,VZN85,95..STD199110-199501

SLATE GRAY,TRIM1#

sub87810-89140

main87810-89141iRN12#199008-199501

main87810-89141-02iRN90,VZN90..DLX198808-199108

DAY/NIGHT TYPE,RED,TRIM3#

sub87810-89141

main87810-89141-02iRN12#,90..SR5198808-199008

RED,TRIM3#

sub87810-89141

main87810-89141-03iRN12#,90..SR5198808-199303

GRAY,TRIM1#

sub87810-89141

main87810-89141-03iRN90,VZN90..DLX198808-199108

DAY/NIGHT TYPE,GRAY,TRIM1#

sub87810-89141

main87810-89141-04iRN12#,90..SR5198808-199008

BLUE,TRIM8#

sub87810-89141

main87810-89141-04iRN90,VZN90..DLX198808-199108

DAY/NIGHT TYPE,BLUE,TRIM8#

sub87810-89141

main87810-89141-06iRN90,VZN90..DLX198808-199108

DAY/NIGHT TYPE,BROWN,TRIM4#

sub87810-89141

main87810-89141-06iRN12#,90..SR5198808-199008

BROWN,TRIM4#

sub87810-89141

main87810-89141-J0iRN90,VZN90..DLX199108-199408

BLUE,TRIM8#

sub87810-89141

main87810-89141-S7iRN90,VZN90..DLX199303-199501

MEDIUM GRAY,TRIM1#

sub87810-89141

main87810-89142iRN12#199008-199108

W(MAP LAMP)

main87810-89142-02iRN12#,85,90..SR5198808-199008

W(MAP LAMP),RED,TRIM3#

sub87810-89142

main87810-89142-02iVZN120,90..SR5198808-199008

RED,TRIM3#

sub87810-89142

main87810-89142-03iVZN120,90..SR5198808-199008

W(MAP LAMP),GRAY,TRIM1#

sub87810-89142

main87810-89142-03iRN12#,85,90..SR5198808-199408

GRAY,TRIM1#

sub87810-89142

main87810-89142-04iRN12#,85,90..SR5198808-199008

BLUE,TRIM8#

sub87810-89142

main87810-89142-04iVZN120,90..SR5198808-199008

W(MAP LAMP),BLUE,TRIM8#

sub87810-89142

main87810-89142-06iVZN120,90..SR5198808-199008

W(MAP LAMP),BROWN,TRIM4#

sub87810-89142

main87810-89142-06iRN12#,85,90..SR5198808-199008

BROWN,TRIM4#

sub87810-89142

main87810-89142-E0iVZN120199108-199308

TAN,TRIM4#

sub87810-89142

main87810-89142-E1iVZN120199308-199408

OAK,TRIM4#

sub87810-89142

main87810-89142-J0iVZN120,90..SR5199108-199408

BLUE,TRIM8#

sub87810-89142

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050iRN8#,VZN85,95198808-199501

12V 5W

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-89104iRN8#,VZN85,95198808-199501

main87834-89105iRN12#199008-199501

main87834-89105-02iRN12#,90;VZN90..DLX198808-199108

RED,TRIM3#

sub87834-89105

main87834-89105-03iRN12#,90;VZN90..DLX198808-199303

GRAY,TRIM1#

sub87834-89105

main87834-89105-04iRN90,VZN90..DLX198808-199108

BLUE,TRIM8#

sub87834-89105

main87834-89105-06iRN90,VZN90..DLX198808-199108

BROWN,TRIM4#

sub87834-89105

main87834-89105-J0iRN90,VZN90..DLX199108-199408

BLUE,TRIM8#

sub87834-89105

main87834-89105-S7iRN90,VZN90..DLX199303-199501

MEDIUM GRAY,TRIM1#

sub87834-89105

9015760010

main90157-60010

9351016020

main93510-16020

6 parts on this diagram · 2 diagrams in section
