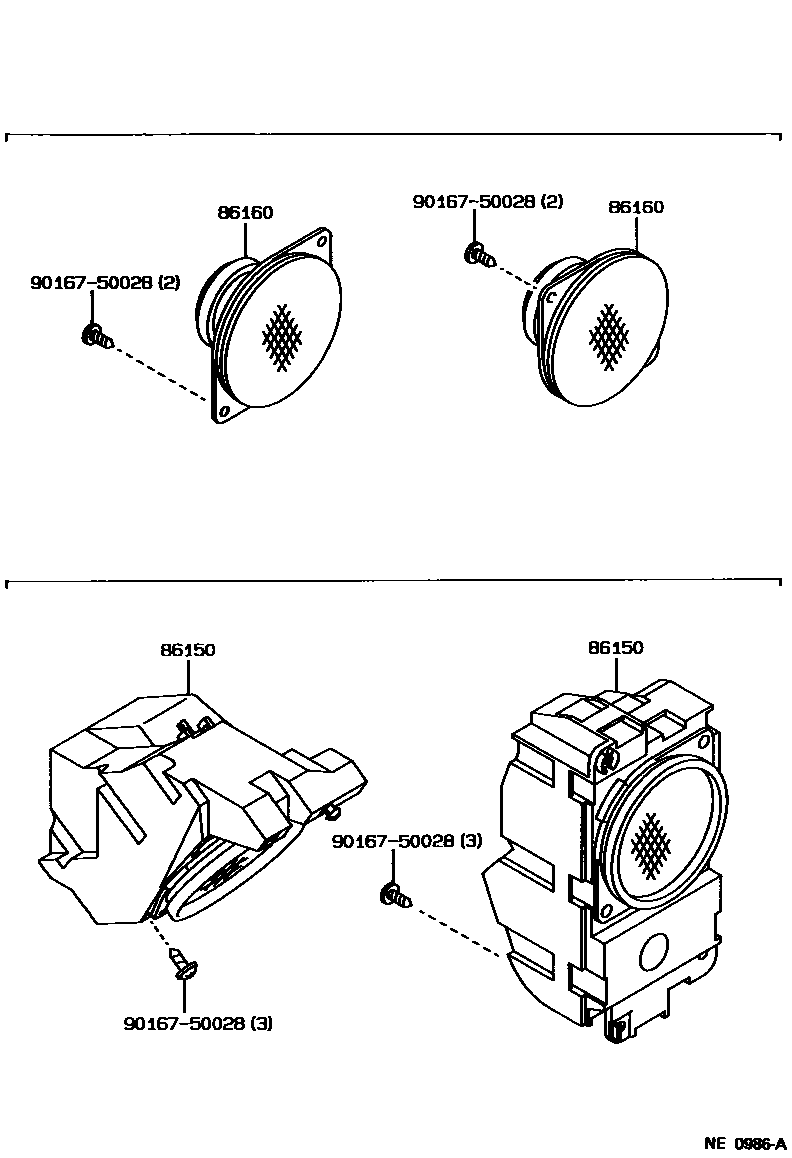

SPEAKER

0001 1FRONT 0002 1REAR 0003 1REAR

86150SPEAKER ASSY, W/BOX, NO.1

main86150-35060iRN8#,90,VZN120,85,9#199108-199511

FRONT,LH

main86150-35070iRN8#,90,VZN120,85,9#199108-199511

FRONT,RH

main86150-89103iRN121198904-199008

LH

main86150-89104iRN120199009-199108

RH

main86150-89107×2iVZN120198904-199008

RR

main86150-89108×2iVZN120199008-199108

W(AM/FM MPX ETR CST CD RADIO & 4SP),RR

86160SPEAKER ASSY, FRONT NO.1

main86160-16130×2iRN12#,8#,90,VZN120,85,9#198808-199108

main86160-35080×2iRN8#,90,VZN120,85,9#199108-199511

9016750028

main90167-50028

3 parts on this diagram · 3 diagrams in section
