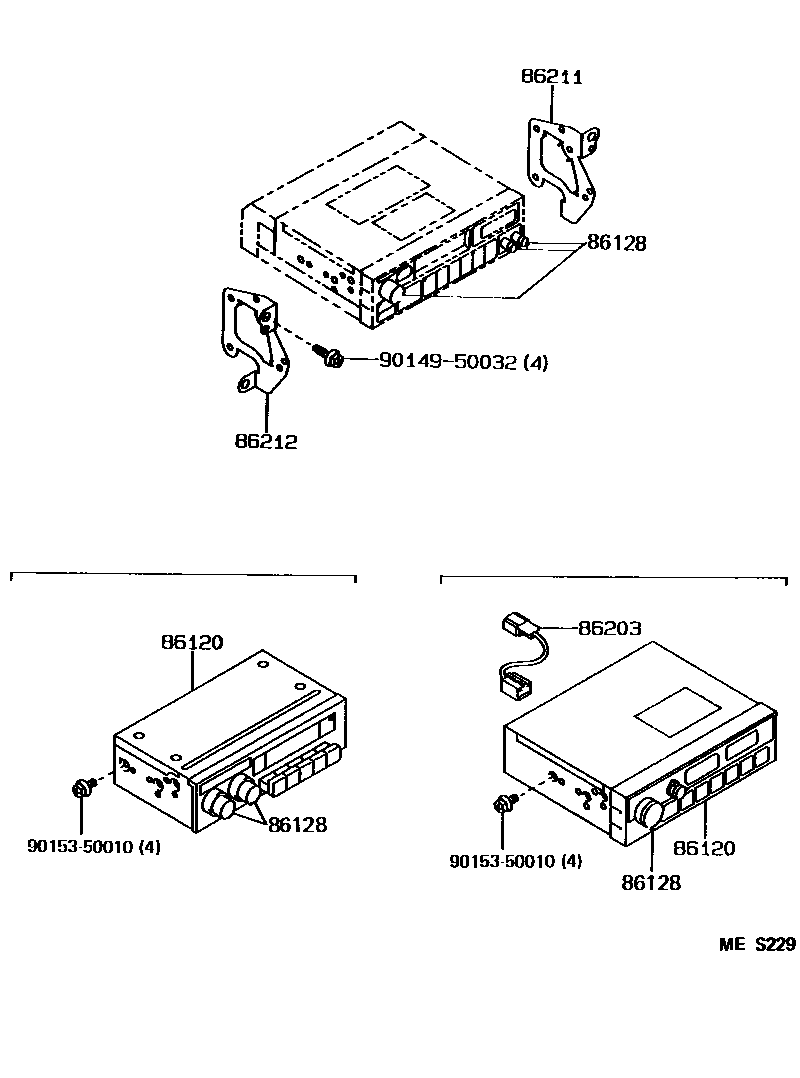

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-02090iVZN120199309-199408

AMERICA MATUSITA

main86120-02100iRN90,VZN120,90199404-199501

AMERICA MATSUSHITA,*AFM,4-SPEAKER,AMERICA MATSUSHITA

main86120-02140iVZN120199408-199511

MATSUSHITA, ID=51403,AM/FM MPX ETR 1DIN,2-SPEAKER

main86120-0W050iVZN120199408-199511

DELCO,*AFM,4-SPEAKER

main86120-12860iVZN90..SR5199108-199501

MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER

main86120-17260iVZN120199008-199108

*AMC/*AF,4-SPEAKER

main86120-17270iVZN120199008-199108

AM/FM MPX ETR CASSETTE 1DIN,4-SPEAKER

main86120-32330iVZN90..DLX;RN12#,8#,90,VZN85,95198808-199008

MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER

sub86120-32331

main86120-32331iVZN120,90..SR5198908-199008

AM/FM MPX ETR 1DIN,2-SPEAKER

main86120-32331iVZN90..DLX;RN12#,8#,90,VZN85,95199008-199108

AM/FM MPX ETR,2-SPEAKER

main86120-32331iVZN90..SR5199008-199108

AM/FM MPX ETR,2-SPEAKERS

main86120-32340iRN121198904-199008

MATSUSHITA,AM/FM MPX ETR 1DIN,4-SPEAKER

main86120-32342iRN120199009-199108

MATSUSHITA,AM/FM MPX ETR 1DIN,4-SPEAKER

main86120-32342iVZN120199008-199108

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,4-SPEAKER

main86120-32350iVZN120198904-198908

MATSUSHITA,*AMC/*AF,4-SPEAKER

sub86120-32351

main86120-32351iVZN120198908-199008

MATSUSHITA,*AMC/*AF,4-SPEAKER

main86120-32380iRN12#,90,VZN120,90198808-198908

MATSUSHITA,*AFM,4-SPEAKER

sub86120-32383

main86120-32382iRN12#,90,VZN120,90198908-199008

MATSUSHITA,*AFM,4-SPEAKER

sub86120-32383

main86120-32383iRN12#,90,VZN120,90199008-199108

MATSUSHITA,*AFM,4-SPEAKER

main86120-33030iVZN120199408-199511

MATSUSHITA,ID=51706,AM/FM MPX ETR CASSETTE 1DIN,6-SPEAKER

main86120-33040iVZN120199408-199511

MATSUSHITA,ID=56807,AM/FM MPX ETR CASSETTE CD 2DIN,6-SPEAKER

sub86120-35170

main86120-33070iVZN120199108-199308

PANASONIC

main86120-33070iVZN120199308-199408

PANASONIC,MATUSITA

main86120-33080iRN90,VZN90199404-199501

MATSUSHITA,*AFM,4-SPEAKER,MATSUSHITA

main86120-33080iRN90,VZN120,90199108-199404

MATSUSHITA,*AFM,4-SPEAKER

main86120-33090iVZN120199108-199408

PANASONIC,AM/FM MPX ETR CASSETTE 1DIN,6-SPEAKER

main86120-33090iVZN90..SR5199108-199501

PANASONIC,*AMC/*AF,4-SPEAKER

main86120-33100iVZN120199108-199408

PANASONIC,AM/FM MPX ETR CASSETTE CD 2DIN,6-SPEAKER

main86120-35030iVZN90..SR5199008-199108

MATSUSHITA,*AMC/*AF,4-SPEAKER

main86120-35040iRN120,8#,90,VZN120,85,9#..USA199008-199511

MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER

main86120-35070iRN8#,VZN85,95;RN90,VZN90..CND199108-199501

AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER

main86120-89141iRN90,VZN90;RN8#,VZN85,95..DLX,STD198808-198908

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER

sub86120-89151

main86120-89141iRN85..SR5198808-198908

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,4-SPEAKER

sub86120-89151

main86120-89144iVZN90..SR5..USA198808-198908

MATSUSHITA,*AMC/*AF,4-SPEAKER

sub86120-89149

main86120-89145iVZN120198904-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,4-SPEAKER

sub86120-17260

main86120-89148iRN85..SR5198908-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,4-SPEAKER

main86120-89148iRN85..SR5198908-199008

MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER

main86120-89149iVZN90..SR5..USA198908-199008

MATSUSHITA,*AMC/*AF,4-SPEAKER

main86120-89150iVZN90..SR5199008-199107

PANASONIC,AM/FM MPX ETR,2-SPEAKER

main86120-89151iRN8#,VZN85..DLX199008-199108

PANASONIC,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER

main86120-89151iRN8#,VZN85..DLX199008-199108

PANASONIC,AM/FM MPX ETR CASSETTE 1DIN,4-SPEAKER

main86120-90K05iRN120,8#,90,VZN120,85,9#..USA198808-199008

FUJITSU TEN,AM/FM MPX,2-SPEAKER

86128KNOB, RADIO RECEIVER

main86128-02010iVZN120199408-199511

VOL

main86128-14030iRN120,8#,90,VZN120,85,9#..USA198808-199008

TONE,BAL

main86128-14070iRN120,8#,90,VZN120,85,9#..USA198808-199008

TUNE

main86128-14130iRN120,8#,90,VZN120,85,9#..USA198808-199008

PWR,VOL

main86128-14150iRN80..STD..USA198808-198908

PWR.VOL

main86128-14150iRN80..STD..USA198808-198908

PWR,VOL

main86128-14150iRN8#,90,VZN120,85,9#..USA199108-199511

PWR/VOL

main86128-14170iVZN90..DLX;RN12#,8#,90,VZN85,95198808-199511

BAL

main86128-14190iVZN120,90..SR5198808-199511

TONE

main86128-17150iVZN120,90..SR5..USA198908-199008

PWR/VOL

main86128-17150iVZN90..SR5..USA198808-198908

PWR,VOL

main86128-17170iRN80..STD..USA198808-198908

BAL

main86128-17170iRN80..STD..USA198808-198908

PWR,VOL

main86128-17170iRN120,VZN120198908-199008

PWR/VOL

main86128-17190iVZN90..SR5..USA198908-199008

BAL/FADE,BASS/TREB

main86128-17190iVZN120199108-199511

BASS/MID/TREB

main86128-17190iRN12#,90,VZN120,90198808-198908

BAL,FADE,BASS,TREB

main86128-17190iVZN120199408-199511

BASS,MID,TREB

main86128-17290iVZN90..SR5;RN8#,VZN95..CND199108-199501

PWR/VOL

main86128-17310iRN90,VZN90199108-199501

VOLUME

main86128-17330iRN90,VZN120,90199108-199501

BASS/BAL

main86128-17350iVZN90..SR5199108-199501

PWR/VOL

main86128-17370iVZN90..SR5199108-199501

FADE

main86128-17390iVZN120199108-199408

VOLUME

main86128-17410iRN90,VZN90..DLX;RN8#,VZN85,95..USA199108-199501

TONE

main86128-17430iRN90,VZN90..DLX;RN8#,VZN85,95..USA199108-199501

BAL

main86128-33010iVZN120199408-199511

VOL

main86128-33030iVZN120199408-199511

BAL

main86128-33050iVZN120199408-199511

PWR/VOL

main86128-AC020iVZN120199408-199511

BASS/TREB,BAL/FADE

main86128-AC040iVZN120199408-199511

VOL

main86128-AC050iVZN120199408-199511

BAL

main86128-AC060iVZN120199408-199511

TONE

86203WIRE, RADIO

main86203-35020iRN8#,90,VZN120,85,9#199108-199511

main86203-89105iRN8#,VZN85,95198808-199108

86211BRACKET, RADIO, NO.1

main86211-35020iRN8#,90,VZN90..DLX,STD199108-199501

main86211-89111iRN80..DLX;RN80..CND;RN12#,85,90,VZN120,85,9#198808-199511

main86211-89112iRN80..STD..USA198808-199108

86212BRACKET, RADIO, NO.2

main86212-35020iRN8#,VZN85,95199108-199501

main86212-89111iRN90,VZN120,90198808-199511

main86212-89112iRN80..STD..USA198808-199108

9014950032

main90149-50032

9015350010

main90153-50010

7 parts on this diagram · 2 diagrams in section
