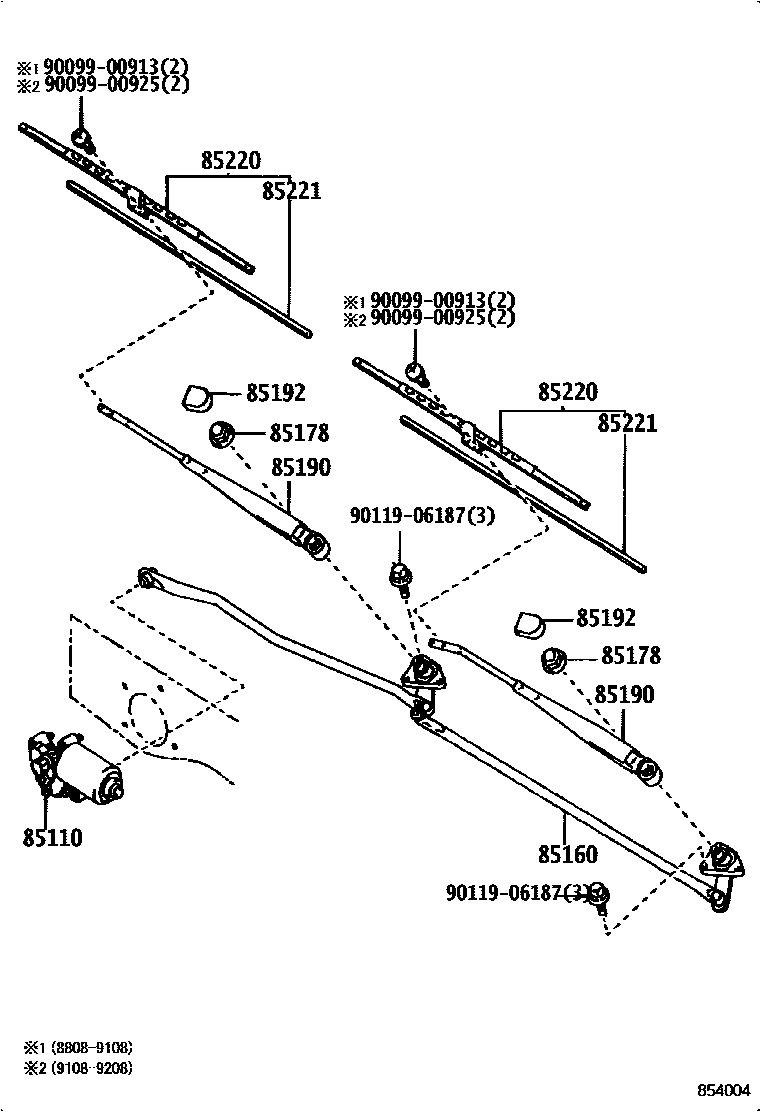

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-35090iRN8#,90,VZN120,85,9#..USA199108-199208

main85110-35100iRN8#,90,VZN9#..CND199108-199511

COLD SPEC (IRELAND)

main85110-35130iRN8#,90,VZN120,85,9#..USA199208-199511

sub85110-35100

main85110-89143iRN120,8#,90,VZN120,85,9#..USA198808-199108

sub85110-35090

main85110-89144iRN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA198808-199108

COLD SPEC (USA)

sub85110-35100

85160LINK ASSY, WINDSHIELD WIPER

main85150-35070iRN8#,90,VZN120,85,9#..USA199208-199511

main85150-35080iRN8#,90,VZN9#..CND199208-199511

COLD SPEC (USA)

main85160-89127iRN120,8#,90,VZN120,85,9#..USA198808-199208

main85160-89128iRN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA198808-199208

COLD SPEC (USA)

main85160-89128iRN121,8#,90,VZN85,9#..CND198808-199208

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iRN12#,8#,90,VZN120,85,9#198808-199511

85190ARM ASSY, WINDSHIELD WIPER

main85190-89137iRN12#,8#,90,VZN120,85,9#198808-198909

LH

sub85190-89144

main85190-89144iRN12#,8#,90,VZN120,85,9#198909-199108

LH

main85210-89106iRN12#,8#,90,VZN120,85,9#198808-198909

RH

sub85210-89109

main85210-89109iRN12#,8#,90,VZN120,85,9#198909-199108

RH

main85211-35030iRN8#,90,VZN120,85,9#199108-199208

RH

main85211-35031iRN8#,90,VZN120,85,9#199208-199303

RH

sub85211-35032

main85211-35032iRN8#,90,VZN120,85,9#199303-199511

RH

main85221-35020iRN8#,90,VZN120,85,9#199108-199208

LH

main85221-35021iRN8#,90,VZN120,85,9#199208-199511

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iRN12#,8#,90,VZN120,85,9#198808-199511

85220BLADE ASSY, WINDSHIELD WIPER

main85212-10120iRN8#,90,VZN120,85,9#199201-199208

RH

main85212-35020iRN8#,90,VZN120,85,9#199208-199511

RH

sub85212-35021

main85220-12660iRN12#,8#,90,VZN120,85,9#198808-198909

LH

sub85220-12661

main85220-12661iRN12#,8#,90,VZN120,85,9#198909-199208

LH

main85220-12670iRN12#,8#,90,VZN120,85,9#198808-198909

RH

sub85220-12671

main85220-12671iRN12#,8#,90,VZN120,85,9#198909-199201

RH

main85222-35070iRN8#,90,VZN120,85,9#199208-199511

LH

sub85222-35071

85221BLADE, WINDSHIELD WIPER

main85213-35060iRN8#,90,VZN120,85,9#199208-199511

RH

sub85214-35020

main85221-89106iRN12#,8#,90,VZN120,85,9#198808-199208

sub85214-12H90

main85223-35080iRN8#,90,VZN120,85,9#199208-199511

LH

sub85214-35020

9009900913

main90099-00913

9009900925

main90099-00925

9011906187

main90119-06187

10 parts on this diagram · 2 diagrams in section
