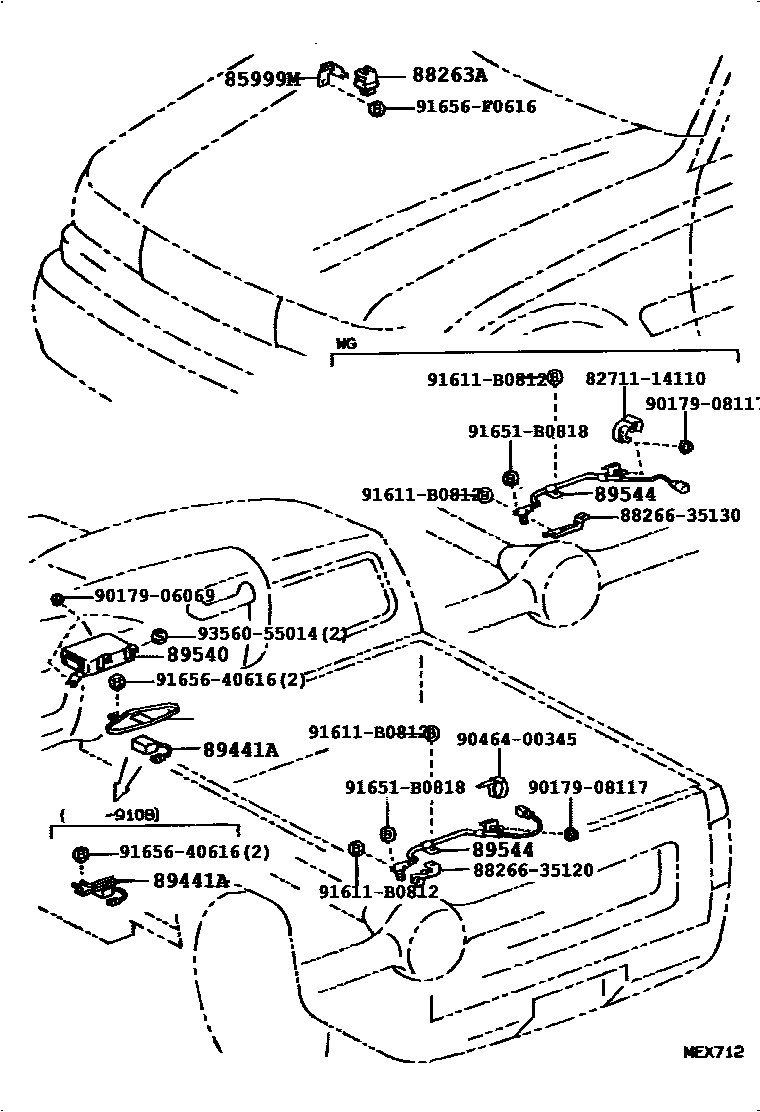

ABS & VSC

0001 1 0003 1

85999MBRACKET, RELAY

main85999-35010iRN12#,85,90,VZN120,90..SR5198908-199511

main85999-35020iVZN120199308-199511

W(4WHEEL ABS)

88263ARELAY, SKID CONTROL

main88263-12070iVZN120199308-199511

W(4WHEEL ABS)

sub88263-12080

main88263-35070iVZN85..WT;VZN85..10T;RN12#,8#,90,VZN120,9#..(4FC,4HC,5F)..EFI198908-199511

89441ASENSOR, DECELERATION

main89440-35010iRN8#,90,VZN85,9#..DLX,STD199108-199501

W(*66---REAR WHEEL)

main89440-35010iVZN120,90..SR5199108-199511

main89441-35010iRN12#,85,90,VZN120,90..SR5198908-199108

89540COMPUTER ASSY, SKID CONTROL

main89540-35010iRN12#,VZN120198908-199102

sub89540-35011

main89540-35011iRN12#,VZN120199102-199108

main89540-35020iVZN85..WT;VZN85..10T;RN8#,90,VZN9#..(4FC,4HC,5F)..EFI198908-199102

sub89540-35021

main89540-35021iRN8#,90,VZN85,9#199102-199108

main89540-35030iRN8#,90,VZN85,9#199108-199501

main89540-35040iVZN120199108-199511

main89540-35050iVZN120199308-199511

W(4WHEEL ABS)

89544SENSOR, SKID CONTROL

main89544-35010iRN85,90,VZN90..SR5198908-199501

main89544-35030iRN12#,VZN120198908-199511

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8826635120CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-35120

8826635130CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-35130

9017906069

main90179-06069

9017908117

main90179-08117

9046400345

main90464-00345

91611B0812

main91611-B0812

91651B0818

main91651-B0818

9165640616

main91656-40616

91656F0616

main91656-F0616

9356055014

main93560-55014

16 parts on this diagram · 2 diagrams in section
