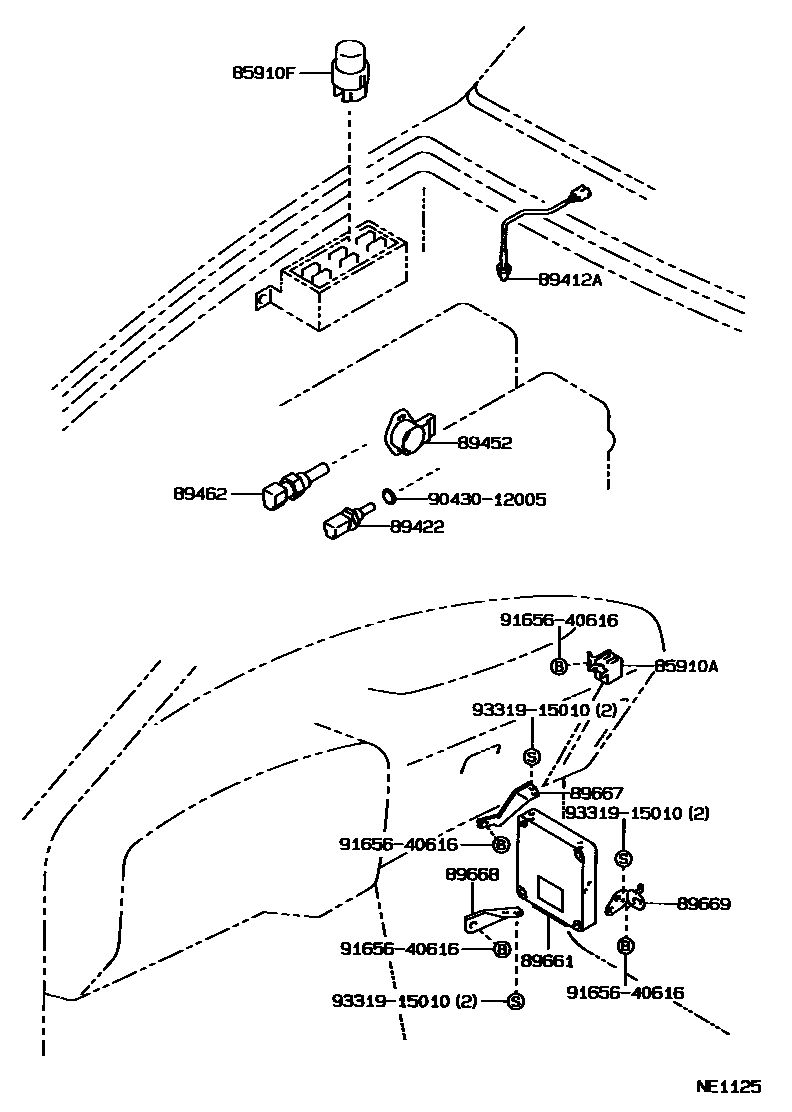

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-35010iRN12#,8#,90,VZN120,85,9#..EFI198808-199511

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iRN12#,8#,90,VZN120,85,9#..EFI198808-199108

main90987-02009iRN8#,90,VZN120,85,9#199108-199511

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iRN120,8#,90,VZN120,85,90..EFI..USA..(CBU,IV3)198808-199108

main89412-34010iRN8#,90199310-199501

NIPPONDENSO

main89412-50010iRN8#,90199308-199401

MATUSITA

main89412-50010iVZN95;RN8#,90,VZN120,85,90..USA199108-199511

main89412-50010iRN8#,90199401-199511

MATSUSHITA

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRN12#,8#,90,VZN120,85,9#..EFI198808-199501

main89422-20010iRN8#,90199108-199401

ENGINE BLOCK

main89422-35010iVZN120,85,9#199008-199511

main89422-35010iVZN120,85,9#199108-199308

ENGINE BLOCK

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iRN12#,8#,90,VZN120,85,9#198908-199511

main89452-14050iRN12#,8#,90..EFI198903-199008

main89452-22090iRN8#,90199308-199501

main89452-28030iRN8#,90,VZN85,9#..EFI198808-198903

sub89452-20050

89462SWITCH, START INJECTOR TIME

main89462-20040iRN12#,8#,90,VZN120,85,9#..EFI198808-199511

89661COMPUTER, ENGINE CONTROL

main89661-35150iRN12#,8#,90..(DLX,SR5)..EFI198808-199008

main89661-35160iRN8#,90..(DLX,SR5)..EFI..USA198808-199008

CALIFRONIA SPEC

main89661-35160iRN80..STD..EFI198908-199008

main89661-35190iVZN85,90..R..(CBU,IV3)198808-198812

sub89661-35191

main89661-35191iVZN85,90..R..(CBU,IV3)198812-198908

sub89661-35192

main89661-35200iVZN85..R..IV6198808-198812

sub89661-35201

main89661-35201iVZN85..R..IV6198812-198908

main89661-35210iVZN85,90..HLF..ATM..(CBU,IV3)198808-198812

sub89661-35211

main89661-35211iVZN85,90..HLF..ATM..(CBU,IV3)198812-198908

main89661-35220iVZN85..10T..4HC198808-198812

sub89661-35221

main89661-35221iVZN85..10T..4HC198812-198908

main89661-35240iVZN85,95..4HC..IV6198808-198812

sub89661-35241

main89661-35241iVZN85,95..4HC..IV6198812-198908

main89661-35250iVZN95..R198808-198812

sub89661-35251

main89661-35251iVZN95..R198812-198908

main89661-35290iRN120198904-199008

CALIFRONIA SPEC

main89661-35310iVZN120198904-198908

main89661-35350iVZN85,90..R..CBU198908-198911

sub89661-35351

main89661-35351iVZN85,90..R..CBU198911-199008

sub89661-35352

main89661-35360iVZN85,90..HLF..ATM..CBU198908-199008

main89661-35370iVZN85..10T..4HC198908-199008

main89661-35380iVZN85,90..R..USA..CBU198908-199008

CALIFRONIA SPEC

main89661-35390iVZN85,90..HLF..ATM..USA..CBU198908-199008

CALIFRONIA SPEC

main89661-35400iVZN85..10T..4HC198908-199008

CALIFRONIA SPEC

main89661-35410iVZN85..R..IV6198908-199008

main89661-35420iVZN95..R198908-199008

main89661-35430iVZN85,95..4HC..IV6198908-199008

main89661-35450iVZN120198908-198911

sub89661-35451

main89661-35451iVZN120198911-199008

main89661-35510iVZN85,90..R..CBU199008-199108

sub89661-35511

main89661-35520iVZN120,85,90..ATM..CBU199008-199108

main89661-35530iVZN85,90..R..USA..CBU199008-199108

CALIFRONIA SPEC

main89661-35540iVZN85,90..ATM..USA..CBU199008-199108

CALIFRONIA SPEC

main89661-35550iVZN85,95..R..IV6199008-199108

main89661-35560iVZN85,95..4HC..IV6199008-199108

main89661-35610iRN8#,90199008-199208

main89661-35620iRN8#,90..USA199008-199208

CALIFRONIA SPEC

main89661-35630iRN12#199008-199108

main89661-35670iRN120199008-199108

CALIFRONIA SPEC

main89661-35710iVZN85,90..R..CBU199108-199308

main89661-35720iVZN120,85,90..ATM..CBU199108-199308

main89661-35730iVZN85,90..R..USA..CBU199108-199308

CALIFRONIA SPEC

main89661-35740iVZN85,90..ATM..USA..CBU199108-199308

CALIFRONIA SPEC

main89661-35750iVZN85,95..R..IV6199108-199308

main89661-35760iVZN85,95..4HC..IV6199108-199308

main89661-35810iRN8#,90199208-199308

main89661-35820iRN8#,90..USA199208-199501

CALIFRONIA SPEC

main89661-35870iVZN90..R199308-199501

main89661-35880iVZN120,90..ATM199308-199511

main89661-35890iVZN90..R..USA199308-199408

CALIFRONIA SPEC

main89661-3D010iVZN120,90..ATM..USA199308-199511

CALIFRONIA SPEC

main89661-3D060iRN8#,90199308-199501

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35030iRN12#,8#,90,VZN120,85,9#..EFI198808-199511

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35030iRN12#,8#,90..EFI198808-199501

main89668-35040iVZN120,85,9#198808-199511

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35030iRN12#,8#,90,VZN120,85,9#..EFI198808-199511

9043012005

main90430-12005

9165640616

main91656-40616

9331915010

main93319-15010

13 parts on this diagram · 2 diagrams in section
