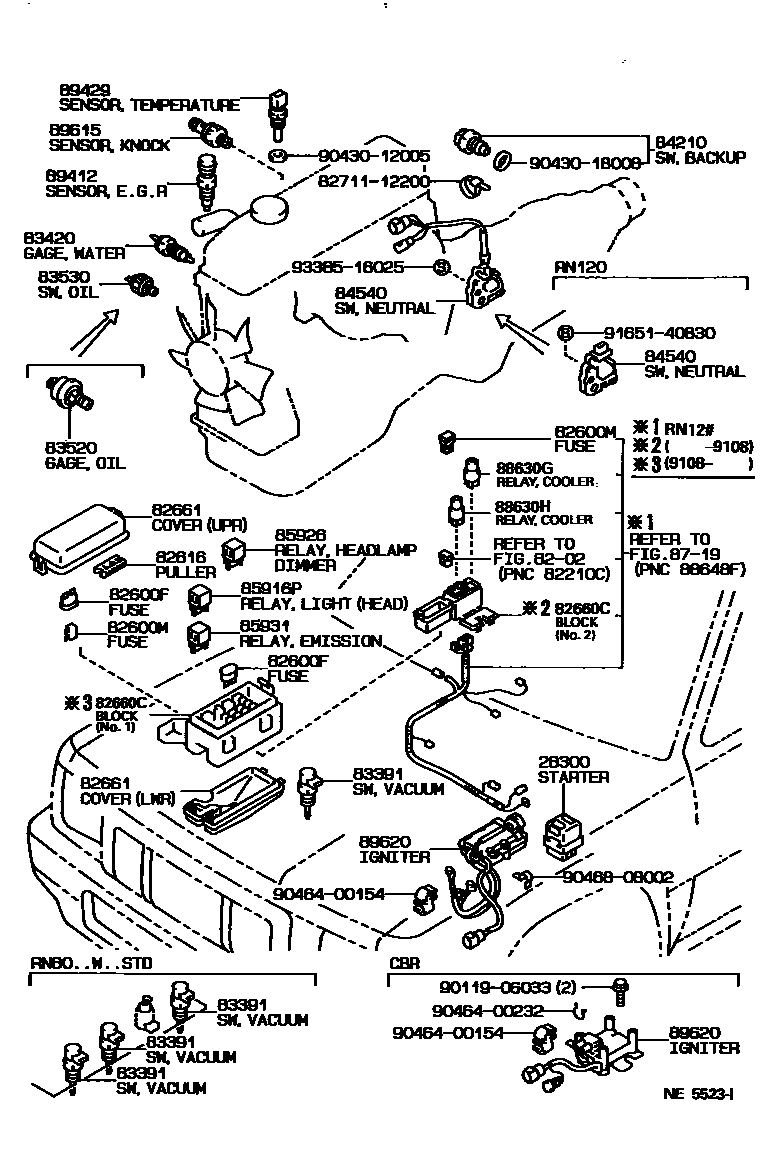

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

28300RELAY ASSY, STARTER

main28300-10020i22RE,3VZE..RN8#,90,VZN120,85,9#199202-199208

main28300-16010i22R#,3VZE..RN121,8#,90,VZN85,9#..MTM198808-199108

main28341-11010i3VZE..VZN95..CND;22RE..RN80..STD..USA199208-199505

main90987-02009i22RE,3VZE..RN8#,90,VZN120,85,9#199108-199202

8202

82600FFUSE, FUSE BLOCK

main90982-09002iRN12#,8#,90,VZN120,85,9#198808-199511

10A

main90982-09003iRN12#,8#,90,VZN120,85,9#198808-199511

15A

main90982-09004iRN12#,8#,90,VZN120,85,9#198808-199511

20A,YELLOW

main90982-09005iRN12#,8#,90,VZN120,85,9#198808-199511

7.5A

82600MFUSE, MEDIUM CURRENT

main90982-10001iRN8#,90,VZN120,85,9#..USA199108-199511

30A,PINK

main90982-10002iVZN120199108-199511

40A,GREEN

82616PULLER, FUSE

main82616-89102iRN12#,8#,90,VZN120,85,9#198808-199108

82660CBLOCK ASSY, RELAY

main82660-35030iRN8#,90,VZN120,85,9#199108-199112

main82660-35090iRN8#,90,VZN120,85,9#199112-199308

main82660-89131iRN12#,VZN120199008-199108

main82660-89136iRN12#,VZN120199008-199108

W(AIR CONDITIONER)

82661COVER, RELAY BLOCK, NO.1

main82662-35010iVZN90..DLX..USA;VZN120,85,95..USA199208-199308

UPR

main82662-35170iRN8#,90,VZN120,85,9#..USA199102-199108

UPR

main82662-35200iRN121,8#,90,VZN9#..(4HC,5F)..CND199102-199108

UPR

main82662-35210iRN120199102-199108

UPR

main82662-35240iRN121..4FC199102-199108

UPR

main82662-35260iVZN120199308-199511

W(*66),UPR

main82662-35280iVZN120199308-199511

UPR

main82662-35320iRN8#,90..CND199108-199308

UPR

main82662-89101iRN8#,90,VZN120,85,9#..EFI..USA198908-199102

UPR

main82662-89102iRN8#,90..CBR..USA198808-199008

UPR

sub82662-35180

main82662-89108iRN121,8#,90,VZN85,9#..(4HC,5F)..CND198908-199102

UPR

main82662-89109iRN120198908-199102

UPR

main82662-89112iRN121..4FC198908-199102

UPR

main82663-35010iRN8#,90,VZN90199308-199501

LWR

main82663-35030iVZN120199308-199511

LWR

main82663-89101iRN12#,8#,90,VZN120,85,9#198808-199108

LWR

83391SWITCH, VACUUM

main83391-12210iRN80..W..CBR198808-198908

MARK=80FM

main83391-27060×2iRN80..W..CBR198808-198908

MARK=400FB

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN120,85,9#199108-199511

main83420-16040iRN8#,90199208-199308

main83420-20020iRN12#,8#,90,VZN120,85,9#198808-199108

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iRN85,90..CBR;RN85,90..SR5;RN85,90..W..DLX..USA;RN12#,80,VZN120,85,90..(4FC,5F)..(DLX,SR5)198808-199108

NIPPONDENSO

sub83520-35030

main83520-34010iRN8#,90,VZN120,90..(4FC,5F)..(DLX,SR5)199208-199511

main83520-55011iRN8#,90,VZN120,85,90..(4FC,5F)..(DLX,SR5)199108-199208

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iRN8#,90,VZN85,9#..DLX,STD198808-199108

sub83530-28030

main83530-14070iRN80,90199308-199501

sub83530-28010

main83530-30080iVZN85,9#..DLX,STD199108-199208

sub83530-60040

main83530-30090iVZN85,9#..DLX,STD199208-199501

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iRN121,8#,90,VZN85,9#..MTM198808-199108

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-22180iRN8#,90..4HC198808-199108

sub84540-22181

main84540-28020iRN8#,90..4HC199108-199110

main84540-28021iRN8#,90..4HC199110-199308

main84540-30270iVZN120,90..ATM199308-199511

main84540-30290iRN8#,90..4HC199308-199501

main84540-35010iRN12#..4FC198904-199108

main84540-35040iVZN120,85,9#..ATM198808-199108

main84540-50010iVZN120,85,9#..ATM199108-199308

85916PRELAY, HEADLAMP

main90987-02006iRN12#,8#,90,VZN120,85,9#198808-199511

85926RELAY, HEADLAMP DIMMER

main85926-30020iRN121,8#,90,VZN85,9#..CND198908-199501

85931RELAY, EMISSION CONTROL

main90987-02006iRN8#,90..CBR198808-199008

8719

88630GRELAY ASSY, COOLER

main90987-02004iRN120,VZN120198904-198908

main90987-02009iVZN120199108-199511

88630HRELAY ASSY, COOLER

main90987-03001iRN12#,VZN120198908-199108

main90987-03003iVZN120199108-199511

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-12010iRN80..W..CBR198808-198908

89429SENSOR, OIL TEMPERATURE

main89422-20010iRN8#,90..CBR198808-199008

ENGINE BLOCK

89615SENSOR, KNOCK CONTROL

main89615-20010iVZN120,85,9#198808-199108

main89615-35040iRN12#,8#,90..EFI198808-199008

main89615-50010iVZN120,85,9#199108-199511

89620IGNITER ASSY

main89620-35200iRN8#,90..CBR198808-199008

main89620-35210iRN12#,8#,90..EFI198808-199008

main89620-35280iRN12#,8#,90199008-199208

main89620-35310iRN8#,90199208-199501

main89621-12050iVZN120,85,9#199108-199511

main89621-30010iVZN120,85,9#198808-199108

sub89621-12010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906033

main90119-06033

9043012005

main90430-12005

9043018008

main90430-18008

9046400154

main90464-00154

9046400232

main90464-00232

9046808002

main90468-08002

9165140830

main91651-40830

9338516025

main93385-16025

32 parts on this diagram · 6 diagrams in section
