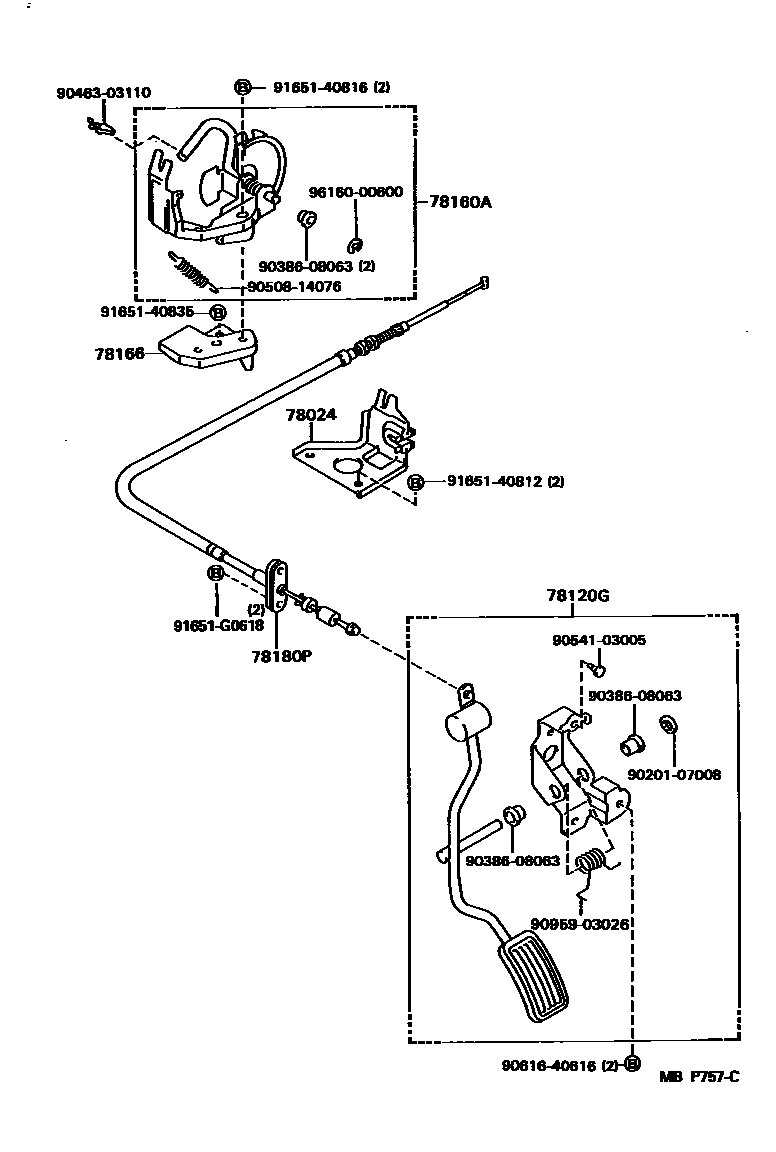

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22060iRN8#,90..CBR198808-199008

78120GROD ASSY, ACCELERATOR PEDAL

main78120-35040iRN80..STD..USA199008-199501

W(*66)

main78120-89138iRN8#,90..CBR198808-199008

main78120-89139iVZN120,85,9#..ATM199101-199511

main78120-89143iRN121,8#,90,VZN85,9#..MTM..EFI198808-199501

main78120-89144iRN12#,8#,90,VZN120,85,9#..ATM198808-199501

78160ABELLCRANK ASSY, ACCEL CONTROL W/BRACKET

main78160-89101iRN8#,90..CBR198808-199008

78166BRACKET, ACCEL CONTROL NO.2 BELLCRANK

main78166-35010iRN8#,90..CBR198808-199008

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-35030iVZN120,85,9#199108-199308

sub78180-35180

main78180-35050iRN8#,90199108-199403

sub78180-35052

main78180-35052iRN8#,90199403-199501

main78180-35060iRN8#,90..DLX..USA199108-199411

W(CRUISE CONTROL)

main78180-35170iRN80,90..DLX..USA199411-199501

W(CRUISE CONTROL)

main78180-35180iVZN120,90199308-199511

main78180-89152iRN8#,90..5F..CBR198808-199008

sub78180-35090

main78180-89154iRN12#,8#,90..EFI198808-199108

sub78180-35050

main78180-89158iRN80..STD..CBR..USA198808-199008

main78180-89159iRN85,90..USA;RN12#,80..DLX,SR5198808-199108

W(CRUISE CONTROL)

sub78180-35060

main78180-89160iVZN120,85,9#198808-199108

9020107008

main90201-07008

9038608063

main90386-08063

9046303110

main90463-03110

9050814076

main90508-14076

9054103005

main90541-03005

9061640616

main90616-40616

9095903026

main90959-03026

9165140812

main91651-40812

9165140816

main91651-40816

9165140835

main91651-40835

91651G0618

main91651-G0618

9616000600

main96160-00600

17 parts on this diagram · 4 diagrams in section
