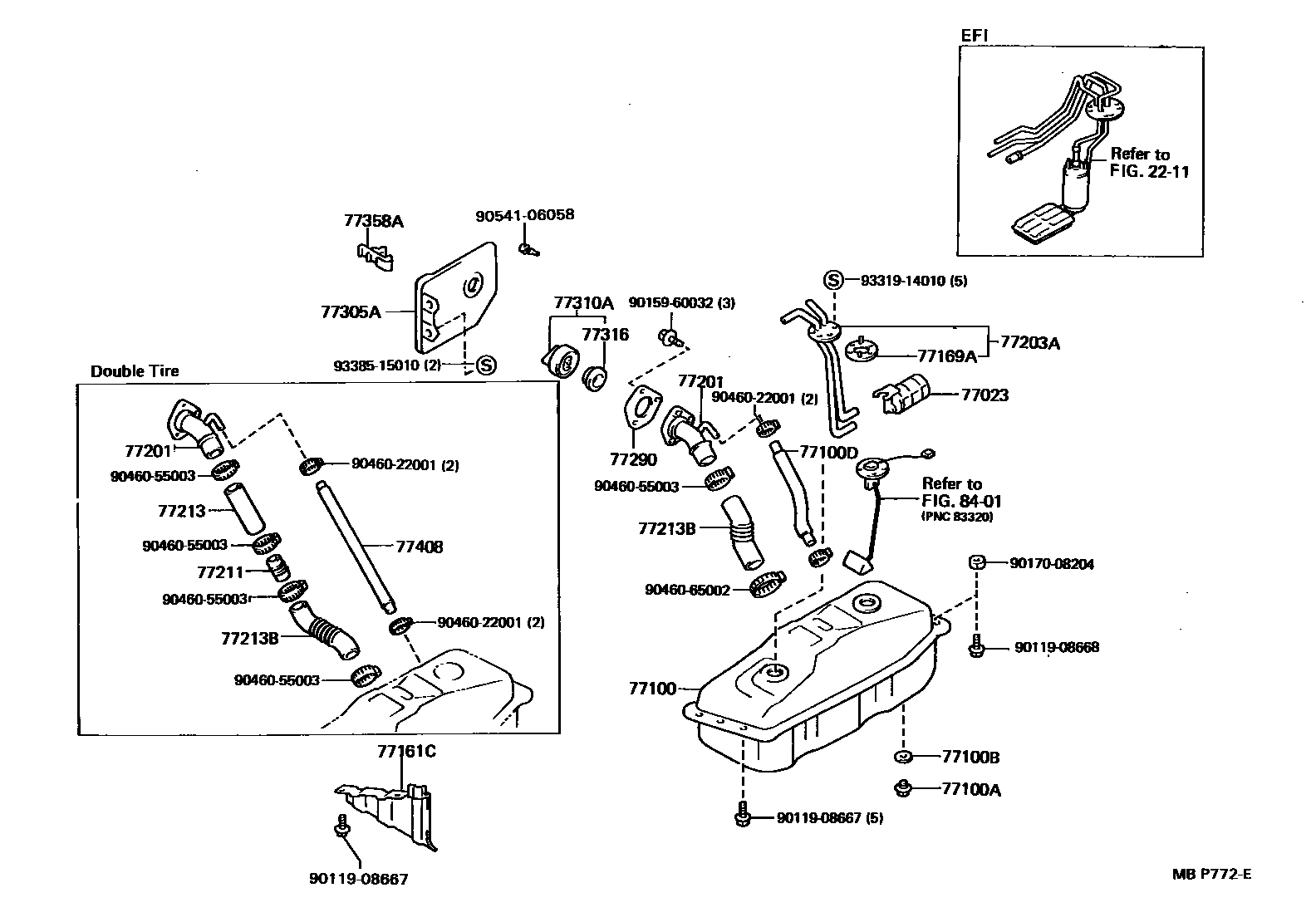

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

2211

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRN8#,90..CBR198808-199008

77100TANK ASSY, FUEL

main77001-35964iRN80..CBR198808-199008

main77001-35967iRN80..EFI198808-199108

sub77001-35984

main77001-35979iRN85,90..CBR..USA198808-199008

main77001-35980iRN85,90,VZN85,9#..EFI198808-199108

main77001-35981iRN12#,VZN120198904-199511

main77001-35984iRN80199108-199501

main77001-35985iRN85,90,VZN85,9#199108-199501

sub77001-3D936

77100APLUG(FOR FUEL TANK)

main90105-12018iRN12#,8#,90,VZN120,85,9#198808-199511

77100BGASKET(FOR FUEL TANK)

main90430-12245iRN8#,90,VZN120,85,9#198808-199511

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77408-35020iRN8#,90,VZN85,9#198808-199501

L=340

main77408-35040iRN12#,VZN120198904-199511

L=507

77161CPROTECTOR, FUEL TANK, LOWER

main77161-35050iRN8#,90,VZN85,9#198808-199108

sub77161-35051

main77161-35051iRN8#,90,VZN85,9#199108-199501

main77161-35110iRN12#,VZN120198904-199511

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iRN8#,90..CBR198808-199008

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35360iRN8#,90,VZN85,9#198808-199501

main77201-35370iRN12#,VZN120198904-199511

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-35330iRN80..CBR198808-199008

main77203-35400iRN85,90..CBR198808-199008

77211PIPE, FUEL TANK INLET

main77211-35350iVZN85,95..WT198811-199308

77213HOSE, FUEL TANK SUB INLET

main77213-35250iVZN85,95..WT198811-199308

L=280

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35220iRN8#,90,VZN85,9#198808-199501

main77213-35230iRN12#,VZN120198904-199511

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-89102iRN12#,VZN120198904-199511

main77291-35030iRN8#,90,VZN85,9#198808-199501

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-89108iRN8#,90,VZN85,90..CBU,IV3198808-199501

main77350-35020iVZN120199510-199511

main77350-89103iRN12#,VZN120198904-199510

sub77350-35020

77310ACAP ASSY, FUEL TANK

main77310-35080iRN12#,8#,90,VZN120,85,9#198808-199511

sub77310-12140

77316GASKET, FUEL TANK CAP

main77316-16010iRN12#,8#,90,VZN120,85,9#198808-199511

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-24010iRN8#,90,VZN85,90..CBU198808-198902

main77358-89101iRN8#,90,VZN85,90..IV3198901-199501

77408HOSE SUB-ASSY, FUEL TANK TO FILLER PIPE

main77408-35050iVZN85,95..WT198811-199308

8401

9011908667

main90119-08667

9011908668

main90119-08668

9015960032

main90159-60032

9017008204

main90170-08204

9046022001

main90460-22001

9046055003

main90460-55003

9046065002

main90460-65002

9054106058

main90541-06058

9331914010

main93319-14010

9338515010

main93385-15010

30 parts on this diagram · 7 diagrams in section
