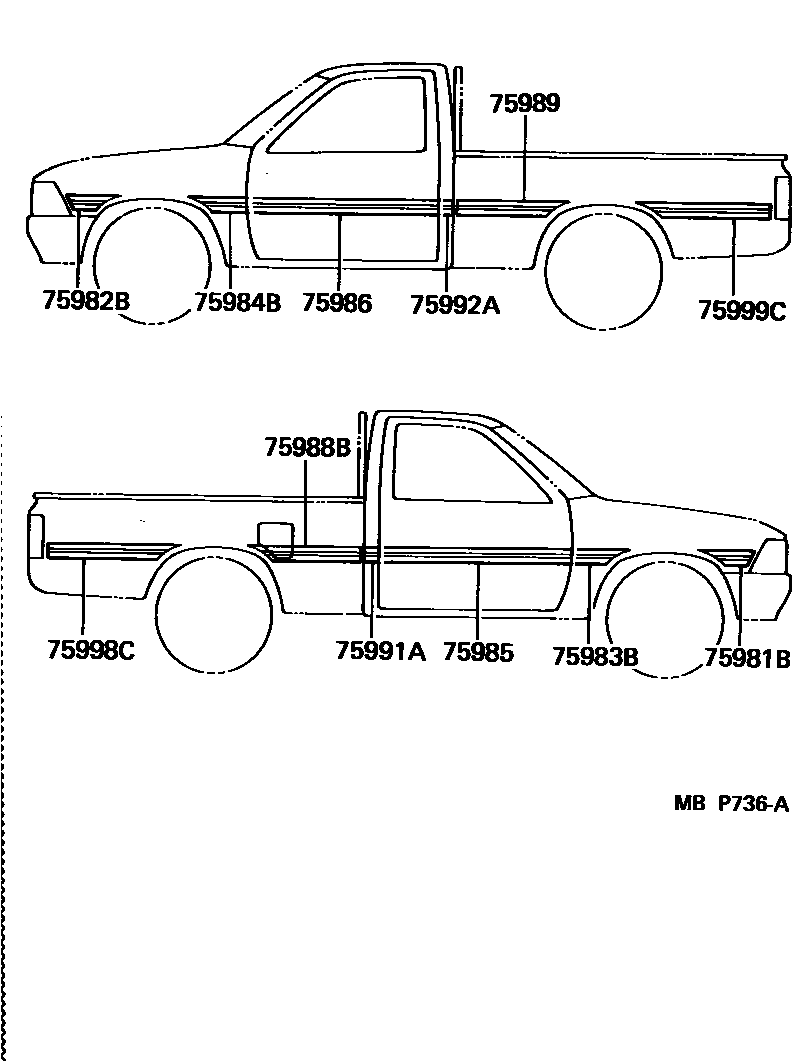

BODY STRIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

75981STRIPE, FRONT FENDER, RH NO.1

main75981-35040iVZN120199108-199308

75981BSTRIPE, FENDER, RH

main75981-35050iRN8#,90,VZN85,90..USA..CBU199108-199501

main75981-89117iRN80..G..USA..CBU;RN85,90..USA..CBU;RN80,VZN85,90..(DLX,SR5)..EFI..USA..CBU198808-199008

75982STRIPE, FRONT FENDER, LH NO.1

main75982-35040iVZN120199108-199308

75982BSTRIPE, FENDER, LH

main75982-35050iRN8#,90,VZN85,90..USA..CBU199108-199501

main75982-89116iRN8#,90,VZN85,90..USA..CBU199008-199108

75983BSTRIPE, FRONT FENDER, REAR RH

main75983-35010iRN8#,90,VZN85,90..USA..CBU199108-199501

main75983-89103iRN80..G..USA..CBU;RN85,90..USA..CBU;RN80,VZN85,90..(DLX,SR5)..EFI..USA..CBU198808-199008

75984BSTRIPE, FRONT FENDER, REAR LH

main75984-35010iRN8#,90,VZN85,90..USA..CBU199108-199501

main75984-89103iRN80..G..USA..CBU;RN85,90..USA..CBU;RN80,VZN85,90..(DLX,SR5)..EFI..USA..CBU198808-199008

75985STRIPE, FRONT DOOR, RH

main75985-35200iRN8#,90,VZN85,90..USA..CBU199108-199501

main75985-89181iRN8#,90,VZN85,90..USA..CBU199008-199108

75986STRIPE, FRONT DOOR, LH

main75976-89103-02iRN120,VZN120199008-199108

RED,045 ,3H4 ,3H7 ,4J8

main75976-89103-03iRN120,VZN120199008-199108

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3 ,8H8

main75986-35200iRN8#,90,VZN85,90..USA..CBU199108-199501

main75986-89179iRN8#,90,VZN85,90..USA..CBU199008-199108

75988BSTRIPE, REAR DECK, FRONT RH

main75988-89130iRN85,VZN85..USA..CBU198808-199008

main75988-89131iRN80,90,VZN90..USA199008-199108

75989STRIPE, REAR DECK, FRONT LH

main75989-89129iRN85,VZN85..USA..CBU199008-199108

main75989-89130iRN90..USA..CBU;RN80..G..USA..CBU;RN80,VZN90..(DLX,SR5)..EFI..USA..CBU198808-199008

75991ASTRIPE, QUARTER, RH

main75991-35080iRN8#,VZN85..USA..CBU199108-199501

main75991-35090iRN90,VZN90..USA199108-199501

main75991-89104iRN85..USA..CBU;RN80..G..USA..CBU;RN80,VZN85..DLX..EFI..USA..CBU198808-199008

main75991-89106iRN90,VZN90..USA199008-199108

75992ASTRIPE, QUARTER, LH

main75992-35080iRN8#,VZN85..USA..CBU199108-199501

main75992-35090iRN90,VZN90..USA199108-199501

main75992-89104iRN85..USA..CBU;RN80..G..USA..CBU;RN80,VZN85..DLX..EFI..USA..CBU198808-199008

main75992-89106iRN90,VZN90..USA..CBU198808-199008

75998CSTRIPE, REAR DECK, REAR RH

main75998-35030iRN85,VZN85..USA..CBU199108-199410

main75998-35050iRN80,90,VZN90..USA199108-199501

main75998-89125iRN85,VZN85..USA..CBU199008-199108

main75998-89126iRN80,90,VZN90..USA199008-199108

75999CSTRIPE, REAR DECK, REAR LH

main75999-35030iRN85,VZN85..USA..CBU199108-199410

main75999-35050iRN80,90,VZN90..USA199108-199501

main75999-89125iRN85,VZN85..USA..CBU199008-199108

main75999-89126iRN80,90,VZN90..USA199008-199108

14 parts on this diagram · 8 diagrams in section
