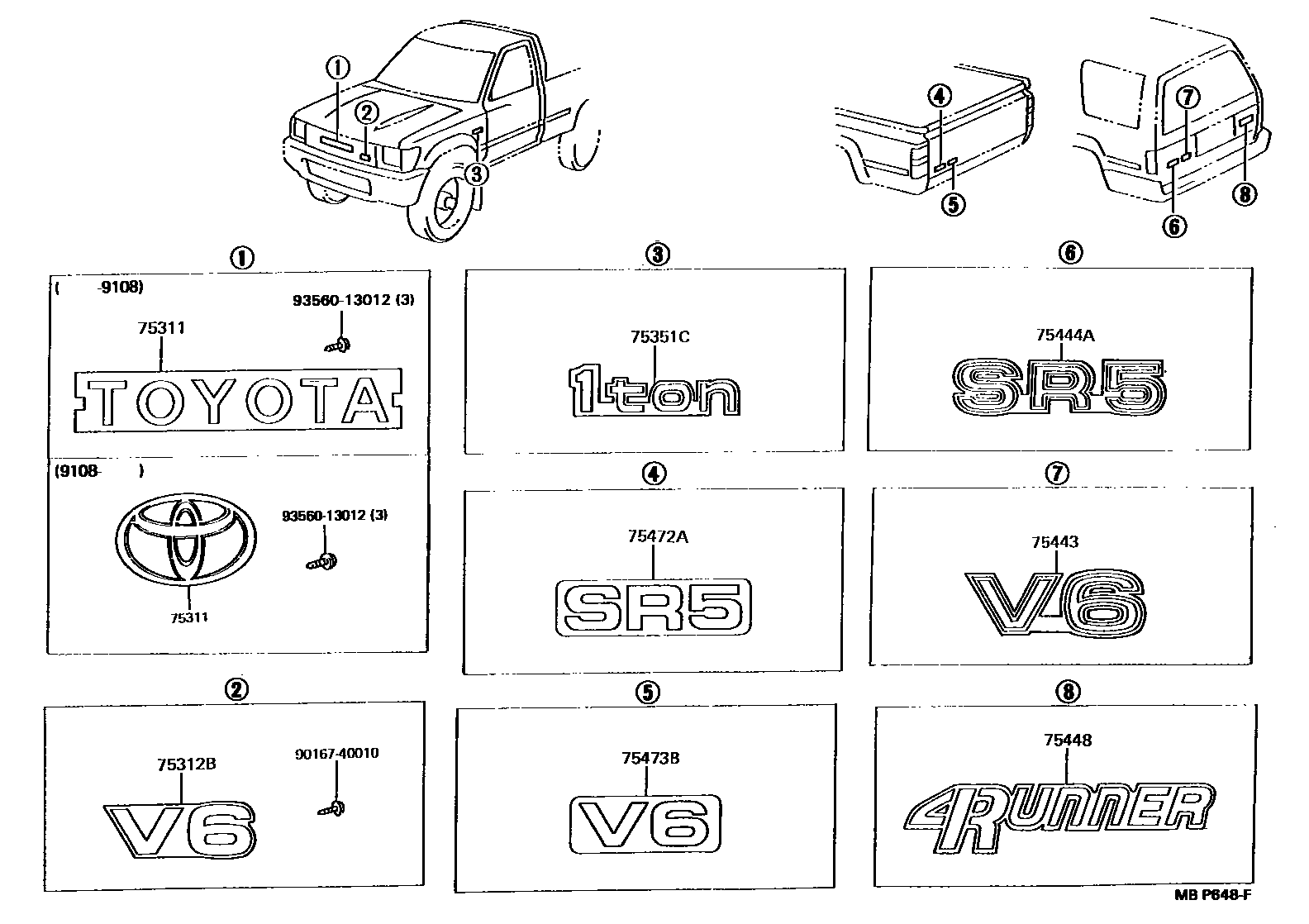

EMBLEM & NAME PLATE

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-04010iVZN85,95;RN8#,90,VZN90..DLX,SR5199208-199501

CHROME PLATED PACKAGE

main75311-35050iRN8#,90,VZN85,9#199108-199501

main75311-35090iVZN120199108-199511

main75311-89117iVZN85,95;RN8#,90,VZN90..DLX,SR5198808-199108

CHROME PLATED PACKAGE

main75311-89118iRN80..CND;VZN85,95..IV6198808-199108

sub75311-89117

main75311-89119iRN8#,90,VZN85,90..DLX,SR5198808-199108

sub75311-89117

main75311-89120iRN80..STD..USA198808-199108

sub75311-89117

main75311-89123iRN12#,VZN120198904-199108

75312BEMBLEM, RADIATOR GRILLE, NO.2

main75312-35010iVZN85,9#199108-199501

main75312-35030iVZN120199108-199511

main75312-89104iVZN85,9#198808-199108

main75312-89105iVZN120198904-198908

main75312-89106iVZN120198908-199108

75351CMARK, FENDER

main75351-89129iVZN85..10T198808-199208

75443PLATE, BACK DOOR NAME, NO.3

main75443-89101iVZN120198904-199511

V6

75444APLATE, BACK DOOR NAME, NO.4

main75444-89101iRN12#,VZN120198904-199511

SR5

75448PLATE, BACK DOOR NAME, NO.8

main75448-89101iRN12#,VZN120198904-199511

75472APLATE, REAR BODY NAME, NO.2

main75472-89128iRN85,90,VZN90..SR5..USA198808-199501

SR5

75473BPLATE, REAR BODY NAME, NO.3

main75473-89118iVZN85,9#..USA198808-199501

9016740010

main90167-40010

9356013012

main93560-13012

10 parts on this diagram · 2 diagrams in section
