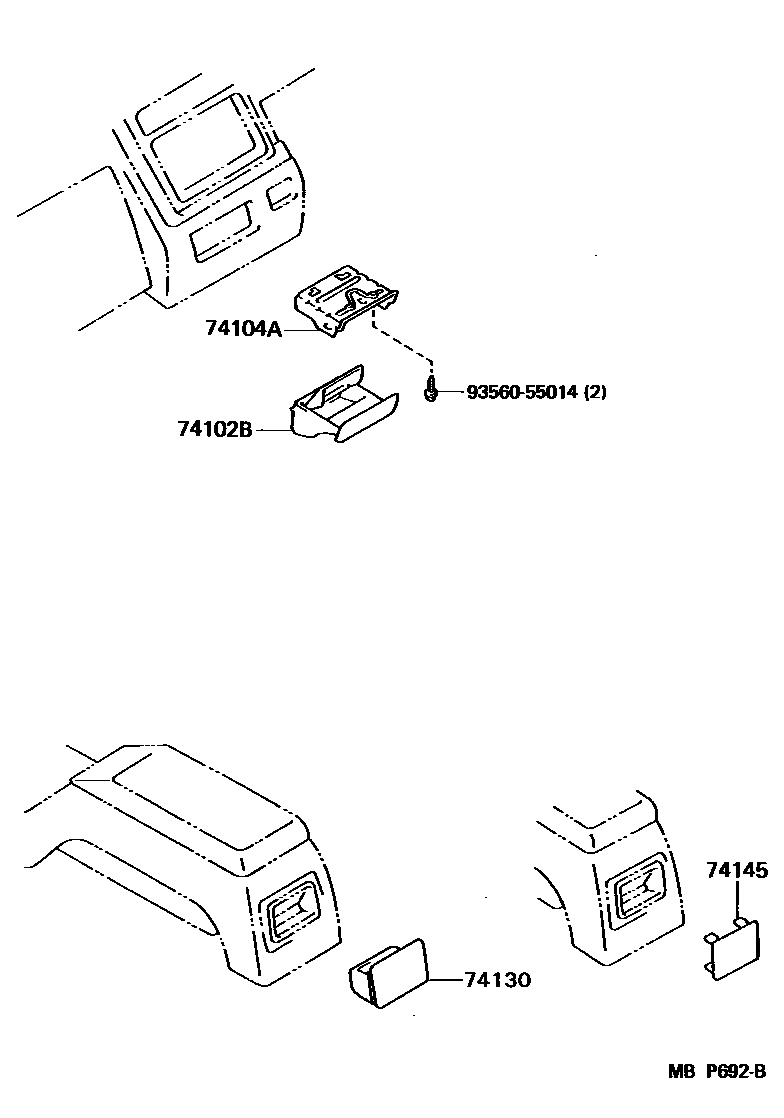

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-89105-02iRN12#,8#,90,VZN120,85,9#..4FC,4HC,5F198808-198906

RED,TRIM3#

sub74102-89107

sub74102-89105

main74102-89105-03iRN8#,90,VZN85,9#..4FC,4HC,5F198808-198901

GRAY,TRIM1#

sub74102-89107

sub74102-89105

main74102-89105-04iRN8#,90,VZN85,9#..4FC,4HC,5F198808-198901

BLUE,TRIM8#

sub74102-89107

sub74102-89105

main74102-89105-06iRN8#,90,VZN85,9#..4FC,4HC,5F198808-198901

BROWN,TRIM4#

sub74102-89107

sub74102-89105

main74102-89105-B0iRN12#,8#,90,VZN120,85,9#..4FC,4HC,5F198901-198906

MEDIUM GRAY,TRIM1#

sub74102-89107

sub74102-89105

main74102-89105-E0iRN12#,8#,90,VZN120,85,9#..4FC,4HC,5F198901-198906

BROWN,TRIM4#

sub74102-89107

sub74102-89105

main74102-89105-J0iRN12#,8#,90,VZN120,85,9#..4FC,4HC,5F198901-198906

MEDIUM BLUE,TRIM8#

sub74102-89107

sub74102-89105

main74102-89106iRN80..STD..USA198808-198906

sub74102-89108

main74102-89107-02iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198906-199108

RED,TRIM3#

sub74102-89107

sub74102-89108

main74102-89107-B0iRN8#,90,VZN120,85,9#198906-199511

MEDIUM GRAY,TRIM1#

sub74102-89107

sub74102-89108

main74102-89107-E0iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198906-199108

BROWN,TRIM4#

sub74102-89107

sub74102-89108

main74102-89107-E1iVZN120199108-199308

TAN,TRIM4#

sub74102-89107

sub74102-89108

main74102-89107-E2iVZN120199308-199511

OAK,TRIM4#

sub74102-89107

sub74102-89108

main74102-89107-J0iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198906-199511

MEDIUM BLUE,TRIM8#

sub74102-89107

sub74102-89108

main74102-89108iRN80..STD..USA198906-199108

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-89107iRN8#,90,VZN85,9#..DLX,STD198808-199501

sub74104-89108

main74104-89108iRN12#,85,90,VZN120,90..SR5198808-199511

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-22iRN12#,VZN120198904-199108

RED,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-34iRN12#,VZN120198904-199511

BLUE,TRIM8#

sub74109-20080

sub74109-32010

main74109-32010-B0iRN12#,VZN120198904-199511

MEDIUM GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-E0iRN12#,VZN120198904-199108

BROWN,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-E3iVZN120199108-199308

TAN,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-E4iVZN120199308-199511

OAK,TRIM4#

sub74109-20080

sub74109-32010

74145PLATE, REAR ASH RECEPTACLE

main74145-12020-02iVZN90..SR5199005-199108

RED,TRIM3#

sub74145-12020

main74145-12020-13iVZN90..SR5198808-199501

GRAY,TRIM1#

sub74145-12020

main74145-12020-14iVZN90..SR5198808-199501

BLUE,TRIM8#

sub74145-12020

main74145-12020-16iVZN90..SR5198808-199108

BROWN,TRIM4#

sub74145-12020

9356055014

main93560-55014

5 parts on this diagram · 1 diagram in section
