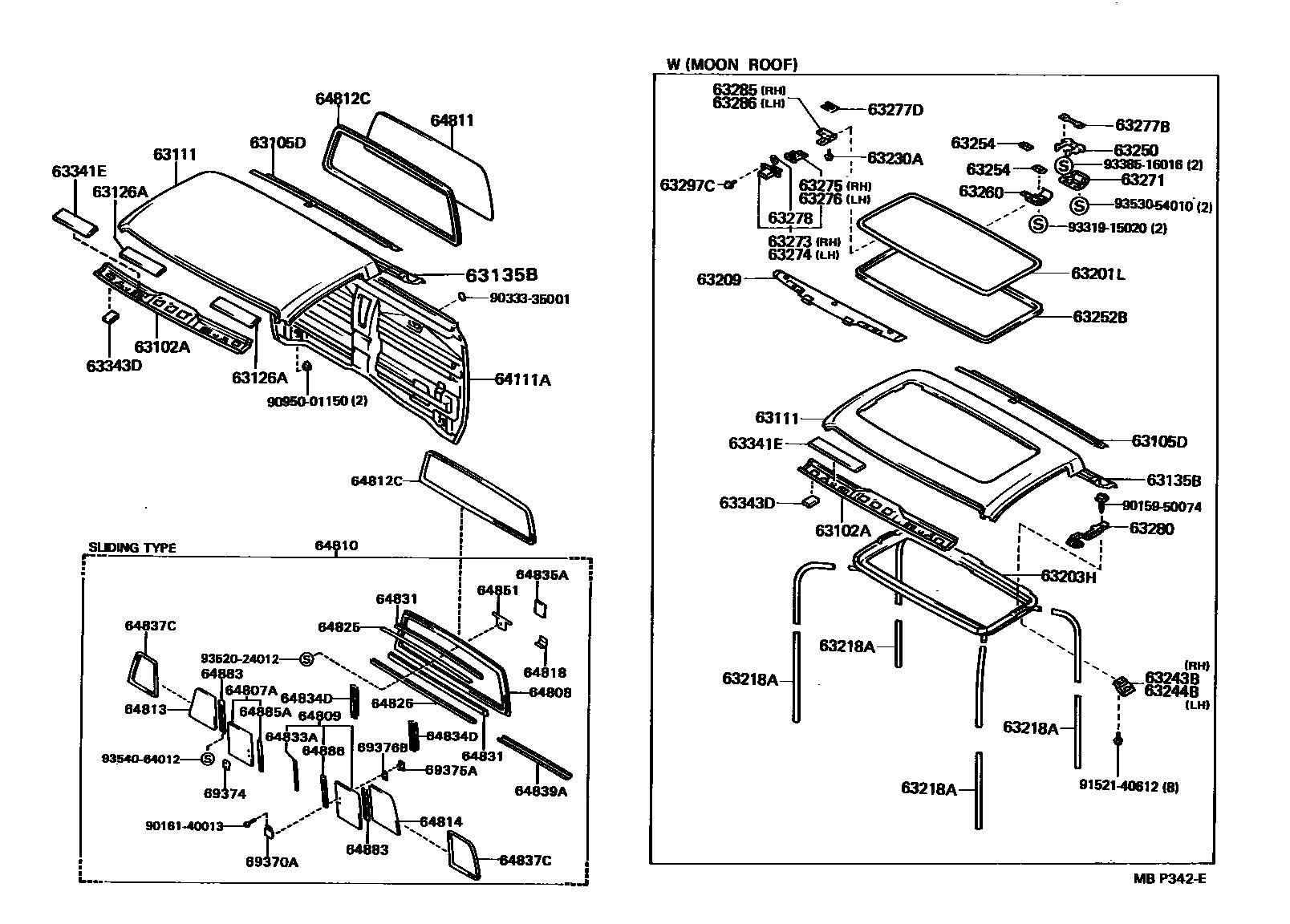

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-89106iRN8#,90,VZN85,9#198808-199501

main63102-89109iRN12#,VZN120198904-199511

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-35030iRN8#199308-199501

main63105-35050iRN90,VZN90199308-199501

main63105-89107iRN8#,VZN85,95198808-199308

sub63105-35030

main63105-89108iRN85..SR5198808-199008

W(MOON ROOF)

sub63105-35040

main63105-89109iRN90,VZN90198808-199308

sub63105-35050

63111PANEL, ROOF

main63111-35060iRN8#199308-199501

main63111-35070iVZN90..SR5199308-199501

W(MOON ROOF)

main63111-35080iRN90,VZN90199308-199501

main63111-35090iVZN120199308-199511

main63111-35100iVZN120199308-199511

W(MOON ROOF)

main63111-89118iRN8#,VZN85,95198808-199308

main63111-89119iRN85..SR5198808-199008

W(MOON ROOF)

main63111-89120iRN90,VZN90198808-199308

main63111-89121iRN90,VZN90..SR5198808-199308

W(MOON ROOF)

main63111-89123iRN12#,VZN120198904-199108

main63111-89124iRN12#,VZN120198904-199108

W(MOON ROOF)

main63111-89125iVZN120199108-199308

main63111-89125iRN12#,VZN120198904-199108

W(REAR WIPER)

main63111-89126iVZN120199108-199308

W(MOON ROOF)

main63111-89126iRN12#,VZN120198904-199108

W(MOON ROOF & REAR WIPER)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-16010iRN12#,VZN120198904-199511

63135BPANEL, BACK WINDOW, UPPER INNER

main63135-35020iRN8#199308-199501

main63135-89102iRN8#,VZN85,95199108-199308

sub63135-35020

63201LGLASS SUB-ASSY, REMOVABLE ROOF

main63201-89105iRN85..SR5198808-199008

main63201-89106iRN90,VZN90..SR5198808-199501

63203HHOUSING SUB-ASSY, REMOVABLE ROOF

main63203-89107iRN85..SR5198808-199008

main63203-89108iRN90,VZN90..SR5198808-199501

63209PANEL SUB-ASSY, ROOF WIND DEFLECTOR

main63209-89102iRN85,90,VZN90..SR5198808-199501

main63209-89103iRN12#,VZN120198904-199511

63218AHOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

main63249-16070iVZN120199208-199511

L=1510,FRONT

sub63249-35020

main63249-35040iVZN120199404-199511

L=1275,REAR

main63249-89101iRN85,90,VZN90..SR5198808-199501

L=1495,FRONT

main63249-89102iRN90,VZN90..SR5198808-198911

L=1260,REAR

main63249-89103iRN85..SR5198808-199008

L=1260,REAR

main63249-89104iRN12#,VZN120198904-199208

*H,L=1470,FRONT

sub63249-16070

main63249-89105iRN12#,VZN120198904-199404

*H,L=1270,REAR

sub63249-35040

main63249-89109iRN90,VZN90..SR5198911-199501

L=1260,REAR

63230ABOLT ASSY, REMOVABLE ROOF

main63230-89101iRN85,90,VZN90..SR5198808-199501

63243BBRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH

main63243-89104iRN85..SR5198808-199008

main63243-89105iRN90,VZN90..SR5198808-199501

63244BBRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH

main63243-89104iRN85..SR5198808-199008

63250BASE ASSY, REMOVABLE ROOF LOCK

main63250-12010iRN85,90,VZN90..SR5198808-198910

main63250-17011iRN85,90,VZN90..SR5198910-199501

63252BWEATHERSTRIP, REMOVABLE ROOF, REAR

main63252-89103iRN85,90,VZN90..SR5198808-199501

63254HOLDER, REMOVABLE ROOF GLASS, INNER REAR

main63254-89103iRN85,90,VZN90..SR5198808-199501

RH

main63254-89104iRN85,90,VZN90..SR5198808-199501

LH

63260HANDLE ASSY, REMOVABLE ROOF LOCK

main63260-17020-02iRN85,90,VZN90..SR5198910-199009

RED,TRIM3#

sub63260-17021

sub63260-17022

main63260-17020-06iRN85,90,VZN90..SR5198910-199010

BROWN,TRIM4#

sub63260-17021

sub63260-17022

main63260-17020-13iRN85,90,VZN90..SR5198910-199010

GRAY,TRIM1#

sub63260-17021

sub63260-17022

main63260-17020-14iRN85,90,VZN90..SR5198910-199010

BLUE,TRIM8#

sub63260-17021

sub63260-17022

main63260-17021-02iVZN90..SR5199010-199104

RED,TRIM3#

sub63260-17022

main63260-17021-03iVZN90..SR5199010-199104

GRAY,TRIM1#

sub63260-17022

main63260-17021-06iVZN90..SR5199010-199104

BROWN,TRIM4#

sub63260-17022

main63260-17021-14iVZN90..SR5199010-199104

BLUE,TRIM8#

sub63260-17022

main63260-17022-D3iVZN90..SR5199104-199108

RED,TRIM3#

sub63260-35040

main63260-17022-E0iVZN90..SR5199104-199108

BROWN,TRIM4#

sub63260-35040

main63260-17022-J0iVZN90..SR5199108-199501

BLUE,TRIM8#

sub63260-35040

main63260-17022-S7iVZN90..SR5199104-199501

GRAY,TRIM1#

sub63260-35040

main63260-17022-W1iVZN90..SR5199104-199108

BLUE,TRIM8#

sub63260-35040

main63260-89105-02iRN85,90,VZN90..SR5198808-198910

RED,TRIM3#

main63260-89105-03iRN85,90,VZN90..SR5198808-198910

GRAY,TRIM1#

main63260-89105-04iRN85,90,VZN90..SR5198808-198910

BLUE,TRIM8#

main63260-89105-06iRN85,90,VZN90..SR5198808-198910

BROWN,TRIM4#

63271GARNISH, REMOVABLE ROOF LOCK

main63271-89102-02iRN85,90,VZN90..SR5198808-199108

RED,TRIM3#

sub63271-89102

main63271-89102-03iRN85,90,VZN90..SR5198808-199501

GRAY,TRIM1#

sub63271-89102

main63271-89102-04iRN85,90,VZN90..SR5198808-199108

BLUE,TRIM8#

sub63271-89102

main63271-89102-06iRN85,90,VZN90..SR5198808-199108

BROWN,TRIM4#

sub63271-89102

main63271-89102-J0iVZN90..SR5199108-199501

BLUE,TRIM8#

sub63271-89102

63273CASE, REMOVABLE ROOF HINGE, RH

main63273-12010iRN85,90,VZN90..SR5198808-198910

main63273-17010iRN85,90,VZN90..SR5198910-199108

sub63273-17040

main63273-17040iVZN90..SR5199108-199501

63274CASE, REMOVABLE ROOF HINGE, LH

main63274-12010iRN85,90,VZN90..SR5198808-198910

main63274-17010iRN85,90,VZN90..SR5198910-199108

sub63274-17040

main63274-17040iVZN90..SR5199108-199501

63275HOLDER, REMOVABLE ROOF HINGE, RH

main63275-12010iRN85,90,VZN90..SR5198808-198910

main63275-17010iRN85,90,VZN90..SR5198910-199501

63276HOLDER, REMOVABLE ROOF HINGE, LH

main63276-12010iRN85,90,VZN90..SR5198808-198910

main63276-17010iRN85,90,VZN90..SR5198910-199501

63277BSPACER, REMOVABLE ROOF LOCK BASE

main63277-89101iRN85,90,VZN90..SR5198808-199501

63277DSPACER, REMOVABLE ROOF HINGE

main63277-89102iRN85,90,VZN90..SR5198808-199501

63278SEAL, REMOVABLE ROOF HINGE CASE

main63278-12010iRN85,90,VZN90..SR5198808-199501

63280CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH

main63280-89101iRN85,90,VZN90..SR5198808-199501

63285HINGE, REMOVABLE ROOF, RH

main63285-89102iRN85,90,VZN90..SR5198808-199501

63286HINGE, REMOVABLE ROOF, LH

main63286-89102iRN85,90,VZN90..SR5198808-199501

63297CBOLT, REMOVABLE ROOF HINGE CASE

main63297-12010iRN85,90,VZN90..SR5198808-199501

63341ESILENCER, ROOF, RH

main63341-89125iRN12#,VZN120198904-199511

63343DPAD, ROOF SILENCER, NO.3

main63343-89106iRN8#,90,VZN85,9#198909-199501

64111APANEL, BACK

main64101-35010iRN8#..USA199308-199501

sub64101-89145

main64101-89131iVZN85..10T..4HC198808-199208

W(SPLIT SEAT OR SEPARATE SEAT)

main64101-89131iRN85..SR5198808-199008

main64101-89131iVZN85..10T..4HC198808-199208

W(SPLIT SEAT)

main64101-89131iVZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3)198808-199501

W(SEPARATE SEAT)

main64101-89135iRN90,VZN90198808-199501

main64101-89141iRN8#..CND198808-199501

64807AGLASS SUB-ASSY, BACK WINDOW SLIDE, RH

main64807-89135iRN85..CND;RN80,VZN85,95..STD198808-199501

*TEM,T=3.5

main64807-89136iRN90,VZN90..SR5198808-199501

*TT,T=4.0,GRAY

main64807-89137iRN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND198808-199501

*TT,T=3.5,BLUE

main64807-89141iRN90;VZN90..DLX198808-199501

*TEM,T=3.5

sub64807-89147

main64807-89143iVZN90..SR5198808-199108

*TT,T=3.5,BRONZE

main64807-89147iVZN90..SR5198808-199501

*TT,T=3.5,BLUE

main64807-89148iVZN90..SR5198808-199108

*TT,T=4.0,BRONZE

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-89105iRN8#,VZN85,95198808-199501

main64808-89106iRN90,VZN90198808-199501

64809GLASS SUB-ASSY, BACK WINDOW SLIDE, LH

main64809-89101iRN90,VZN90..CND198808-199501

*TT,T=3.5,BLUE

main64809-89102iRN85..CND;RN80,VZN85,95..STD198808-199501

*TEM,T=3.5

main64809-89103iRN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND198808-199501

*TT,T=3.5,BLUE

main64809-89105iRN90,VZN90..CND198808-199501

*TEM,T=3.5

sub64809-89101

main64809-89106iVZN90..SR5198808-199108

*TT,T=3.5,BRONZE

main64809-89107iVZN90..SR5198808-199108

*TT,T=4.0,BRONZE

main64809-89108iRN90,VZN90..SR5198808-199501

*TT,T=4.0,GRAY

64810WINDOW ASSY, BACK

main64810-89109iRN8#,VZN85,95198808-199501

*TEM,T=3.5

main64810-89110iRN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND198808-199501

*TT,T=3.5,BLUE

main64810-89112iRN90;VZN90..DLX198808-199501

*TEM,T=3.5

sub64810-89115

main64810-89113iVZN90..SR5198808-199108

*TT,T=3.5,BRONZE

main64810-89114iVZN90..SR5198808-199108

*TT,T=4.0,BRONZE

main64810-89115iRN90,VZN90..DLX198808-199501

*TT,T=3.5,BLUE

main64810-89116iRN90,VZN90..SR5198808-199501

*TT,T=4.0,GRAY

64811GLASS, BACK WINDOW

main64811-04020iRN85..CND;RN80,VZN85,95..STD199108-199501

*TEM,T=3.5

main64811-04030iRN8#,VZN85,95199108-199501

*TEM,T=3.5,GREEN

main64811-89119iRN8#,VZN85,95198808-199501

*TEM,T=3.5

sub64811-89120

main64811-89120iRN85..CND;RN80,VZN85,95..STD198808-199501

*TT,T=3.5

main64811-89138iRN90;VZN90..DLX198808-199501

*TEM,T=3.5

sub64811-89139

main64811-89139iRN90,VZN90..DLX198808-199501

*TT,T=3.5,BLUE

main64811-89140iRN90;VZN90..R..DLX198808-198908

*EHT,T=3.5

sub64811-89141

main64811-89141iRN90..DLX;VZN90..R..DLX198808-198908

*EHTT,T=3.5

main64811-89142iVZN90..SR5198808-198908

*EHTT,T=3.5,BRONZE

main64811-89151iRN90,VZN90..SR5198808-199501

*TT,T=4.0,GRAY

sub64811-89155

main64811-89152iRN90,VZN90..SR5198808-198908

*EHTT,T=4.0,GRAY

sub64811-89156

main64811-89154iVZN90..SR5198808-199108

*TT,T=3.5,BRONZE

sub64811-89142

main64811-89155iVZN90..SR5198808-199108

*TT,T=4.0,BRONZE

main64811-89156iVZN90..SR5198808-198908

*EHTT,T=4.0,BRONZE

64812CWEATHERSTRIP, BACK WINDOW GLASS

main64812-89108iRN8#,VZN85,95198808-199501

main64812-89109iRN8#,VZN85,95198808-199501

W(SLIDING REAR WINDOW)

main64812-89110iRN90,VZN90198808-199501

W(SLIDING REAR WINDOW)

main64812-89111iRN90,VZN90198808-199501

64813GLASS, BACK WINDOW CORNER, RH

main64813-89101iRN8#,VZN85,95198808-199501

*TEM,T=3.5

sub64813-89102

main64813-89102iRN85..CND;RN80,VZN85,95..STD198808-199501

*TT,T=3.5

main64813-89107iRN90;VZN90..DLX198808-199501

*TEM,T=3.5

sub64813-89110

main64813-89108iVZN90..SR5198808-199108

*TT,T=3.5,BRONZE

main64813-89109iVZN90..SR5198808-199108

*TT,T=4.0,BRONZE

main64813-89110iVZN90..SR5198808-199501

*TT,T=3.5,BLUE

main64813-89111iRN90,VZN90..SR5198808-199501

*TT,T=4.0,GRAY

64814GLASS, BACK WINDOW CORNER, LH

main64814-89101iRN8#,VZN85,95198808-199501

*TEM,T=3.5

sub64814-89102

main64814-89102iRN80..STD..USA198808-199501

*TT,T=3.5

main64814-89108iRN90,VZN90..CND198808-199501

*TEM,T=3.5

sub64814-89111

main64814-89109iVZN90..SR5198808-199108

*TT,T=3.5,BRONZE

main64814-89110iVZN90..SR5198808-199108

*TT,T=4.0,BRONZE

main64814-89111iRN90,VZN90..CND198808-199501

*TT,T=3.5,BLUE

main64814-89112iRN90,VZN90..SR5198808-199501

*TT,T=4.0,GRAY

64818SPACER, BACK WINDOW GLASS

main64818-89101iRN8#,90,VZN85,9#198808-199501

64825RUN, BACK WINDOW CHANNEL, UPPER

main64825-89101iRN8#,90,VZN85,9#198808-199501

64826RUN, BACK WINDOW CHANNEL, LOWER

main64826-89101iRN8#,90,VZN85,9#198808-199501

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-89110iRN8#,90,VZN85,9#198808-199501

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89114iRN8#,VZN85,95198808-199501

main64833-89115iRN90,VZN90198808-199501

64834DWEATHERSTRIP, BACK WINDOW SLIDE GLASS

main64834-89101iRN8#,VZN85,95198808-199501

main64834-89102iRN90,VZN90198808-199501

64835AWEATHERSTRIP, BACK WINDOW GLASS, CENTER

main64835-89101iRN8#,90,VZN85,9#198808-199501

64837CWEATHERSTRIP, BACK WINDOW CORNER GLASS

main64837-89101iRN8#,VZN85,95198808-199501

main64837-89105iRN90,VZN90..DLX198808-199501

W(SLIDING REAR WINDOW)

main64837-89106iRN90..SR5198808-199501

W(SLIDING REAR WINDOW & PRIVATE GLASS)

64839APACKING, BACK WINDOW

main64839-89105iRN8#,90,VZN85,9#198808-199501

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89103iRN8#,90,VZN85,9#198808-199501

64883FRAME, BACK WINDOW

main64881-89104iRN8#,VZN85,95198808-199501

main64881-89115iRN90,VZN90198808-199501

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-89101iRN90,VZN90..DLX198808-199501

W(SLIDING REAR WINDOW)

main64885-89102iRN8#,VZN85,95198808-199501

main64885-89103iVZN90..SR5198808-199501

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-89101iRN90,VZN90..SR5198808-199501

W(SLIDING REAR WINDOW)

main64886-89102iRN8#,VZN85,95198808-199501

main64886-89103iVZN90..SR5198808-199501

W(SLIDING REAR WINDOW & PRIVATE GLASS)

69370ALOCK ASSY, BACK WINDOW

main69370-35010iRN8#,90,VZN85,9#199206-199501

main69370-89103iRN8#,90,VZN85,9#198808-199206

sub69370-35010

69374CATCH, BACK WINDOW LOCK

main69374-89103iRN8#,90,VZN85,9#198808-199501

69375ARETAINER, BACK WINDOW LOCK

main69375-89103iRN8#,90,VZN85,9#198808-199501

69376BPACKING, BACK WINDOW LOCK

main69376-89103iRN8#,90,VZN85,9#198808-199501

9015950074

main90159-50074

9016140013

main90161-40013

9033335001

main90333-35001

9095001150

main90950-01150

9152140612

main91521-40612

9331915020

main93319-15020

9338516016

main93385-16016

9352024012

main93520-24012

9353054010

main93530-54010

9354064012

main93540-64012

66 parts on this diagram · 4 diagrams in section
