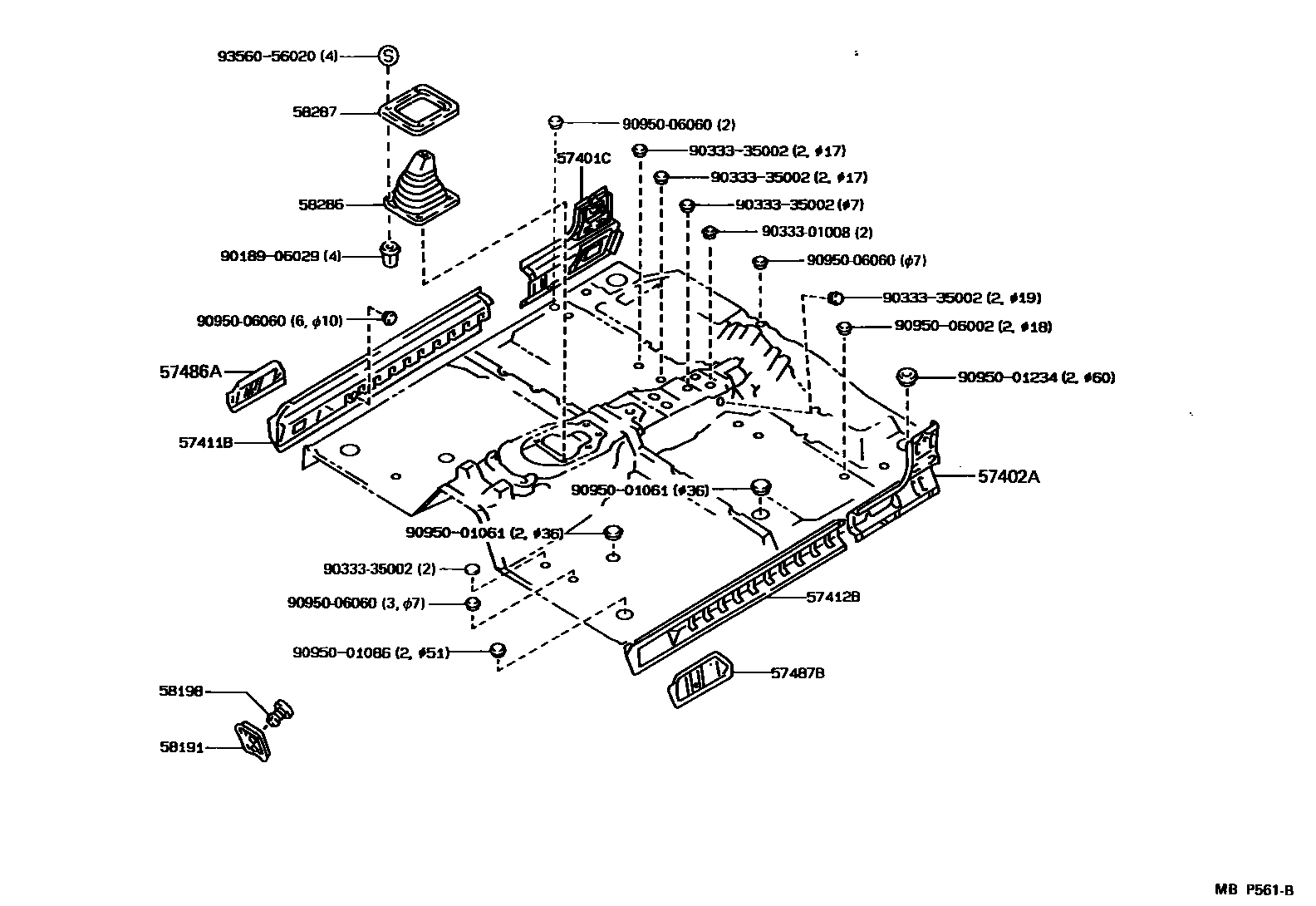

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-89114iRN8#,VZN85,95198808-199501

main57401-89115iRN90,VZN90198808-199501

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-89114iRN8#,VZN85,95198808-199501

main57402-89115iRN90,VZN90198808-199501

57411BMEMBER, FLOOR SIDE, INNER RH

main57411-35010iRN12#,8#,90,VZN120,85,9#199008-199511

main57411-89104iRN12#,8#,90,VZN120,85,9#198808-199008

sub57411-35010

57412BMEMBER, FLOOR SIDE, INNER LH

main57412-35010iRN12#,8#,90,VZN120,85,9#199008-199511

main57412-89106iRN12#,8#,90,VZN120,85,9#198808-199008

sub57412-35010

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-89104iRN12#,8#,90,VZN120,85,9#198808-199511

57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-89102iRN12#,8#,90,VZN120,85,9#198808-199511

58191FOOTREST, FRONT FLOOR

main58192-89101iRN12#,8#,90,VZN120,85,90..DLX,SR5198808-199511

58198CLIP, FOOTREST

main58198-89101iRN12#,8#,90,VZN120,85,90..DLX,SR5198808-199511

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-89111iVZN90..R..SR5;RN121,8#,90..MTM198808-199501

main58286-89124iVZN85,9#..R..(DLX,STD)198808-199501

58287RETAINER, SHIFT LEVER BOOT

main58287-04010iVZN85,9#..R..(DLX,STD)199108-199501

main58287-89113iRN121,8#,90,VZN85,9#..MTM198808-199501

9018906029

main90189-06029

9033301008

main90333-01008

9033335002

main90333-35002

9095001061

main90950-01061

9095001086

main90950-01086

9095001234

main90950-01234

9095006002

main90950-06002

9095006060

main90950-06060

9356056020

main93560-56020

19 parts on this diagram · 4 diagrams in section
