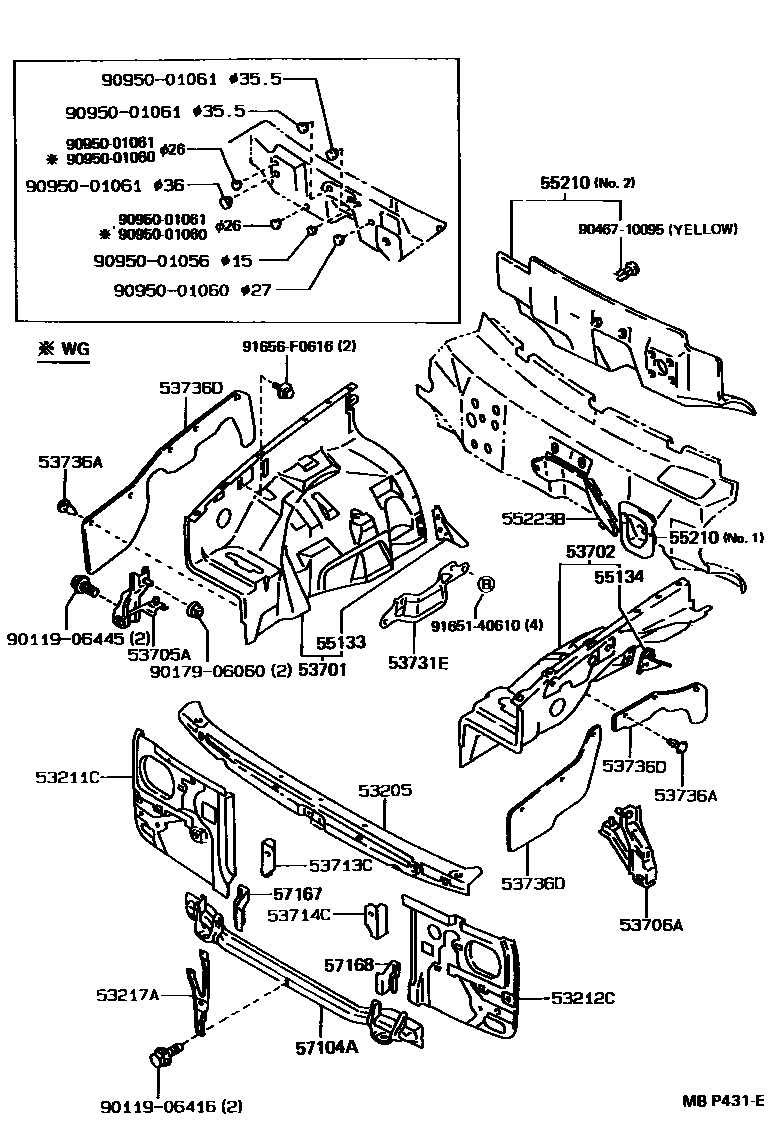

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-35010iVZN120199108-199308

main53216-35011iVZN120199308-199511

sub53216-35010

main53216-89110iRN8#,90,VZN85,9#198808-199501

53211CSUPPORT, RADIATOR, RH

main53202-35050iVZN120199308-199409

sub53202-35080

main53202-35080iVZN120199409-199511

main53211-35040iVZN120199108-199308

sub53202-35050

main53211-89123iRN8#,90,VZN85,9#198808-198903

sub53202-35020

main53211-89124iRN12#,8#,90,VZN120,85,9#198903-199501

53212CSUPPORT, RADIATOR, LH

main53203-35060iVZN120199308-199409

sub53203-35090

main53203-35090iVZN120199409-199511

main53212-35020iVZN120199108-199308

sub53203-35060

main53212-89120iRN8#,90,VZN85,9#198808-198903

sub53203-35020

main53212-89121iRN12#,8#,90,VZN120,85,9#198903-199501

53217ABRACE, HOOD LOCK SUPPORT

main53217-89108iRN8#,90,VZN85,9#198808-199501

main53217-89109iRN12#,VZN120198904-199511

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-35200iVZN120199308-199511

main53701-35240iVZN120199308-199511

W(*CRC)

main53701-89204iRN8#,90..G198808-199008

main53701-89207iRN8#,90,VZN85,9#..EFI198808-199501

main53701-89211iRN80..W..CBR198808-198908

main53701-89269iRN12#198904-199108

main53701-89271iVZN120198904-199308

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-35420iVZN120199308-199511

W(*66)

main53702-35430iVZN120199308-199511

main53702-89228iRN8#,90..CBR198808-199008

main53702-89230iRN8#,90..EFI198808-199501

main53702-89235iVZN85,9#198808-199501

main53702-89290iRN12#198904-199108

main53702-89293iVZN120198904-199308

53705ABRACE SUB-ASSY, FENDER APRON, RH

main53705-89102iRN8#,90,VZN85,9#198808-199501

main53705-89103iRN12#,VZN120198904-199511

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-89102iRN8#,90,VZN85,9#198808-199501

main53706-89103iRN12#,VZN120198904-199511

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-89104iRN12#,8#,90,VZN120,85,9#198808-199511

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-89104iRN12#,8#,90,VZN120,85,9#198808-199511

53731EPATCH, FRONT FENDER APRON

main53731-89108iRN12#,VZN120198904-199511

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10107iRN12#,VZN120198808-199511

main90467-10107iRN8#,90,VZN85,9#..EFI198808-199501

W(AIR CONDITIONER),OD=17

main90467-21008iRN8#,90,VZN85,9#..EFI198808-199501

W(AIR CONDITIONER),OD=35

53736DSEAL, FENDER APRON

main53736-35070iVZN120199203-199511

MARK=II

main53736-35090iVZN120199109-199511

MARK=KK

main53736-35120iVZN120199308-199511

MARK=JJ

sub53736-35070

main53736-89118iRN8#,90,VZN85,9#198808-199501

MARK=AA

main53736-89119iRN8#,90,VZN85,9#198808-199501

MARK=BB

sub53736-89118

main53736-89120iRN8#,90,VZN85,9#198808-199501

MARK=EE

main53736-89126iRN12#,VZN120198904-199203

MARK=II

sub53736-35070

main53736-89127iRN12#,VZN120198904-199308

MARK=JJ

sub53736-35120

main53736-89128iRN12#,VZN120198904-199109

MARK=KK

sub53736-35080

main53736-89130iRN8#,90,VZN85,9#..EFI198808-199501

W(AIR CONDITIONER),TYPE A

main53736-89131iRN8#,90,VZN85,9#..EFI198808-199501

W(AIR CONDITIONER),TYPE B

sub53736-89130

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-89103iRN12#,8#,90,VZN120,85,9#198808-199511

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-89103iRN12#,8#,90,VZN120,85,9#198808-199511

55210INSULATOR ASSY, DASH PANEL

main55210-35120iRN80..CND199206-199501

NO.2

main55210-35130iVZN85,95;RN8#,90,VZN120,90..DLX,SR5199206-199308

NO.2

sub55210-35131

main55210-35131iRN8#,90,VZN120,90..DLX,SR5199308-199511

NO.2

main55210-89151iRN12#,8#,90,VZN120,85,9#..4F,4FC,5F198808-199511

NO.1

main55210-89152iRN8#,90,VZN85,9#..4HC198808-199501

NO.1

main55210-89156iRN80..STD..USA198808-199501

NO.2

main55210-89157iRN80..CND;RN85..CBR..USA198808-199206

NO.2

sub55210-35120

main55210-89158iVZN85,95;RN85..CND;RN85..EFI..USA;RN12#,80,90,VZN120,90..DLX,SR5198808-199206

NO.2

sub55210-35130

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55225-89102iVZN120,85,9#198808-199511

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-35010iRN12#,VZN120199008-199511

main57104-89109iRN8#,90,VZN85,9#198808-199501

main57104-89113iRN12#,VZN120198904-199008

sub57104-35010

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-89102iRN12#,VZN120198904-199108

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-89102iRN12#,VZN120198904-199108

9011906416

main90119-06416

9011906445

main90119-06445

9017906060

main90179-06060

9046710095

main90467-10095

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9165140610

main91651-40610

91656F0616

main91656-F0616

29 parts on this diagram · 3 diagrams in section
