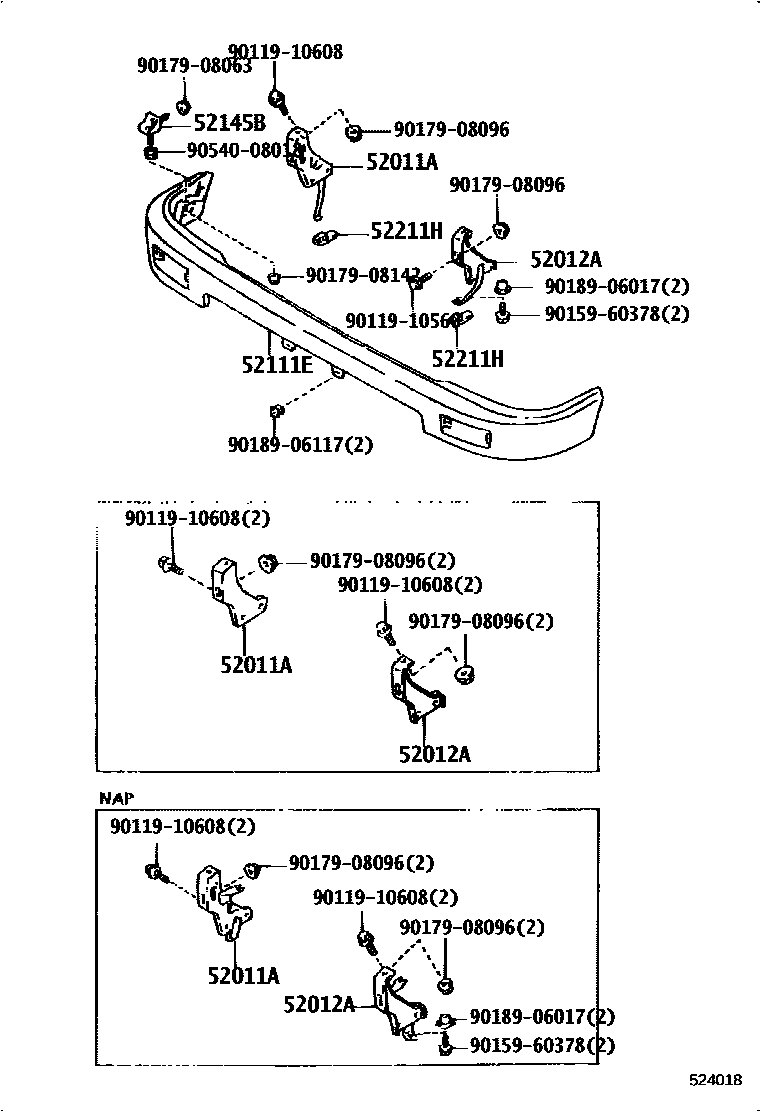

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-04020iRN8#,90,VZN85,9#199208-199501

(L)

main52011-35050iVZN120199108-199511

main52011-35060iRN8#,90,VZN85,9#199108-199501

(J)

main52011-89115iRN8#,90,VZN85,9#198808-199108

main52011-89117iRN12#,VZN120198904-199108

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-04020iRN8#,90,VZN85,9#199208-199501

(L)

main52012-35050iVZN120199108-199511

main52012-35060iRN8#,90,VZN85,9#199108-199501

(J)

main52012-89115iRN8#,90,VZN85,9#198808-199108

main52012-89117iRN12#,VZN120198904-199108

52111EBAR, FRONT BUMPER

main52101-35060iRN8#,90,VZN85,9#199108-199501

NO PAINT REQ.

main52101-35070iVZN85,95;RN8#,90,VZN90..DLX,SR5199108-199501

PLATED

main52101-35130iVZN120199108-199511

NO PAINT REQ.

sub52101-35905

main52101-35160-F0iVZN120199108-199511

BLUE GRAY M,BLUE GRAY M.,25T

sub52101-35921

main52101-35170iVZN120199108-199511

PLATED

main52101-89107iRN8#,90,VZN85,9#198808-199108

NO PAINT REQ.

main52101-89109iVZN85,95;RN8#,90,VZN90..DLX,SR5198808-199108

PLATED

sub52101-35070

main52101-89113iRN12#,VZN120198904-199108

NO PAINT REQ.

main52101-89114iRN12#,VZN120198904-199108

PLATED

main52101-89117-03iRN12#,VZN120198904-199108

SILVER.M,27L

main52101-89117-06iRN12#,VZN120198904-199008

O.GOLD.M,29L

main52101-89117-13iRN12#,VZN120198904-199108

D.GRAY.M,28L

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-89102iRN12#,8#,90,VZN120,85,9#198808-199511

52211HCUSHION(FOR FRONT BUMPER ARM)

main52211-89101iRN12#,8#,90,VZN120,85,9#198808-199511

9011910560

main90119-10560

9011910608

main90119-10608

9015960378

main90159-60378

9017908063

main90179-08063

9017908096

main90179-08096

9017908142

main90179-08142

9018906017

main90189-06017

9018906117

main90189-06117

9054008018

main90540-08018

14 parts on this diagram · 3 diagrams in section
