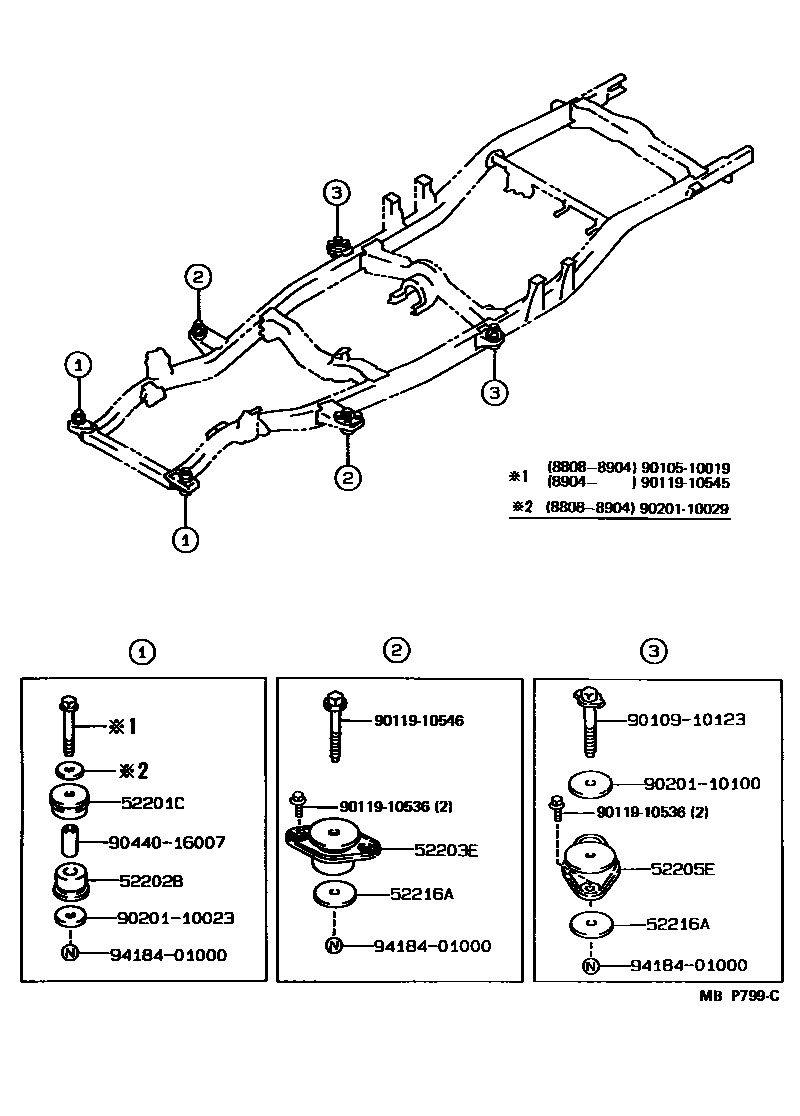

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35050×2iRN8#,90,VZN85,9#198808-199501

main52201-35060×2iRN12#,VZN120198904-199511

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35050×2iRN8#,90,VZN85,9#198808-199501

main52202-35060×2iRN12#,VZN120198904-199511

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-35110×2iRN8#,VZN85,95198808-199501

main52203-35120×2iRN90,VZN90198808-199501

main52203-35150×2iRN12#,VZN120198904-199011

main52203-35170×2iRN12#,VZN120199011-199511

52205ECUSHION SUB-ASSY, CAB MOUNTING, NO.3

main52205-35030×2iVZN85..10T..CBU;RN8#,VZN85,95..HLF;VZN85..10T..R..IV3198904-199004

main52205-35031×2iRN8#,VZN85,95199004-199501

main52205-35040×2iRN90,VZN90198808-198904

main52205-35041×2iRN90,VZN90199004-199501

main52205-35070×2iRN12#,VZN120198904-199511

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-35010×2iRN12#,8#,90,VZN120198808-199511

main52216-35020×2iVZN85,9#198808-199108

OD=55

main52216-35030×2iVZN85,9#198808-198904

OD=65

9010510019

main90105-10019

9010910123

main90109-10123

9011910536

main90119-10536

9011910545

main90119-10545

9011910546

main90119-10546

9020110023

main90201-10023

9020110029

main90201-10029

9020110100

main90201-10100

9044016007

main90440-16007

9418401000

main94184-01000

15 parts on this diagram · 2 diagrams in section
