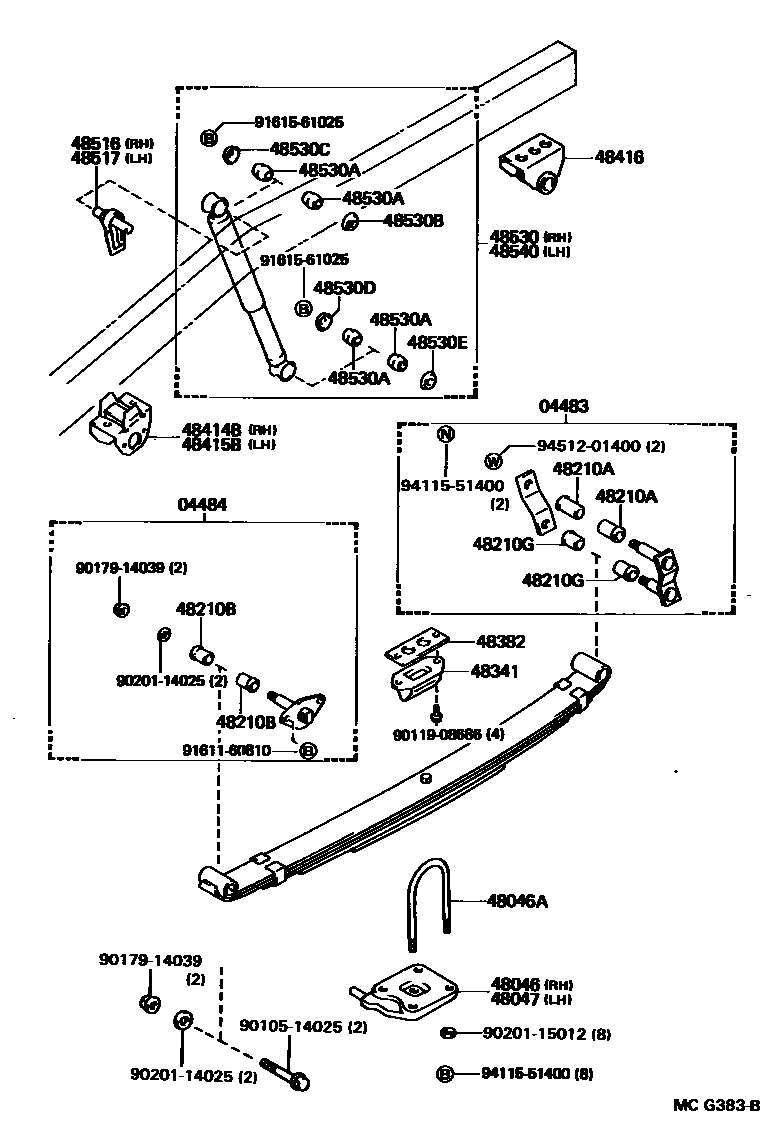

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04483SHACKLE KIT, REAR SPRING

main04483-35050iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199108

sub04483-35070

main04483-35051iVZN85..10T;VZN85,95..IV6198808-199108

main04483-35070iRN8#,90,VZN85,9#199108-199501

04484PIN KIT, REAR SPRING

main04482-35030iVZN85..10T;VZN85,95..IV6198808-199108

main04484-35060iVZN85,95199108-199308

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35140iRN8#,90,VZN85,90..ST198808-199208

main48046-35150iVZN85,95..WT198808-199308

main48046-35190iRN8#,90,VZN85,90..HLF..CBU198908-199105

sub48046-35191

main48046-35191iRN8#,90,VZN90199105-199501

48046ABOLT, U(FOR REAR SPRING)

main90117-14039iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-198908

L=139

main90117-14040iVZN85..10T;VZN85..ST..IV6198808-199501

L=155

main90117-14056iVZN85,95..WT198808-199308

L=184

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35140iVZN85..10T;VZN85..ST..IV6198808-199208

main48046-35150iVZN85,95..WT198808-199308

main48046-35190iRN8#,90,VZN85,90..HLF..CBU198908-199105

sub48046-35191

main48046-35191iRN8#,90,VZN90199105-199501

48210SPRING ASSY, REAR RH

main48210-35271iRN80..STD..USA198808-198908

main48210-35610iRN8#,90,VZN85,90..HLF..(4FC,4HC,5F)..(CBU,IV3)198808-198908

main48210-35640iVZN85..10T;VZN85..ST..IV6198808-199208

5-LEAF

main48210-35660iVZN95198808-199308

5-LEAF

main48210-35710iVZN85..WT198808-199308

5-LEAF

main48210-35810iRN8#,90,VZN85,90..HLF..CBU198908-199501

3-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18012iRN8#,90,VZN85,9#198808-199501

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046iVZN85..10T;VZN85,95..IV6198808-199308

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046iRN8#,90,VZN85,9#198808-199501

48341BUMPER, REAR SPRING

main48341-35050iVZN85..WT;RN8#,90,VZN9#;VZN85..HLF..DLX198808-199501

main48341-35060iVZN85..10T;VZN85..ST..IV6198808-199208

48382SPACER, BUMPER BLOCK

main48382-35030iVZN95198808-199308

48414BBRACKET, SPRING, NO.3 RH

main48414-35120iRN8#,90,VZN85,90..HLF..(4FC,4HC,5F)..(CBU,IV3)198808-199501

main48414-35160iVZN85..10T;VZN85,95..IV6198808-199308

main48414-35180iRN80..STD..USA198808-198908

48415BBRACKET, SPRING, NO.3 LH

main48414-35160iVZN85..10T;VZN85,95..IV6198808-199308

main48415-35050iRN8#,90,VZN85,90..HLF..(4FC,4HC,5F)..(CBU,IV3)198808-199501

48416BRACKET, SPRING, NO.4

main48416-35070iRN8#,90,VZN85,9#198808-199501

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35030iRN8#,90,VZN85,9#198808-199501

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-35030iRN8#,90,VZN85,9#198808-199501

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09020iRN8#,90..USA199209-199405

main48531-39925iVZN85..10T;VZN85..ST..IV6198808-199208

MARK 48531-35600

sub48531-80512

main48531-39985iRN8#,90..USA199108-199405

TOKICO

sub48531-80499

main48531-39985iRN80..CBR;RN85,90..CND198808-199501

sub48531-80499

main48531-39995iRN85,90..USA;RN80,VZN85,90..HLF..EFI..(CBU,IV3)198808-198908

sub48531-39645

main48531-80034iVZN85,95..WT198808-199308

sub48531-80500

main48531-80087iRN12#198904-198908

sub48531-80505

main48531-80088iRN12#198904-198908

W(GAS SHOCK ABSORBER)

sub48531-80506

main48531-80088iVZN120198904-199208

sub48531-80506

main48531-80089iRN12#198908-199108

W(GAS SHOCK ABSORBER)

sub48531-80507

main48531-80092iRN12#198908-199006

sub48531-80102

main48531-80102iRN12#199006-199108

MARK 48531-35790

sub48531-80509

main48531-80157iVZN120199208-199511

sub48531-80510

main48531-80407iRN8#,90..USA198908-199209

sub48531-09020

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iRN8#,90,VZN85,9#198808-199501

main90385-19002iRN12#198904-199108

main90385-19004iRN12#198904-199108

W(GAS SHOCK ABSORBER)

main90385-19004iVZN120198904-199511

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iRN8#,90,VZN85,9#198808-199501

main90948-03011iRN12#,VZN120198904-199511

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03012iRN8#,90,VZN85,9#198808-199501

main90948-03020iRN12#,VZN120198904-199511

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012iRN8#,90,VZN85,9#198808-199501

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iRN8#,90,VZN85,9#198808-199501

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09020iRN8#,90..USA199209-199405

main48531-39925iVZN85..10T;VZN85..ST..IV6198808-199208

MARK 48531-35600

sub48531-80512

main48531-39985iRN8#,90,VZN90198808-199501

sub48531-80499

main48531-39985iRN8#,90..USA199108-199405

TOKICO

sub48531-80499

main48531-39995iRN85,90..USA;RN80,VZN85,90..HLF..EFI..(CBU,IV3)198808-198908

sub48531-39645

main48531-80034iVZN85,95..WT198808-199308

sub48531-80500

main48531-80087iRN12#198904-198908

sub48531-80505

main48531-80088iVZN120198904-199208

sub48531-80506

main48531-80088iRN12#198904-198908

W(GAS SHOCK ABSORBER)

sub48531-80506

main48531-80089iRN12#198908-199108

W(GAS SHOCK ABSORBER)

sub48531-80507

main48531-80092iRN12#198908-199006

sub48531-80102

main48531-80102iRN12#199006-199108

MARK 48531-35790

sub48531-80509

main48531-80157iVZN120199208-199511

sub48531-80510

main48531-80407iRN8#,90,VZN85,90..HLF..CBU198908-199209

sub48531-09020

9010514025

main90105-14025

9011908686

main90119-08686

9017914039

main90179-14039

9020114025

main90201-14025

9020115012

main90201-15012

9161160810

main91611-60810

9161561025

main91615-61025

9161661025

main91616-61025

9411551400

main94115-51400

9451201400

main94512-01400

33 parts on this diagram · 7 diagrams in section
