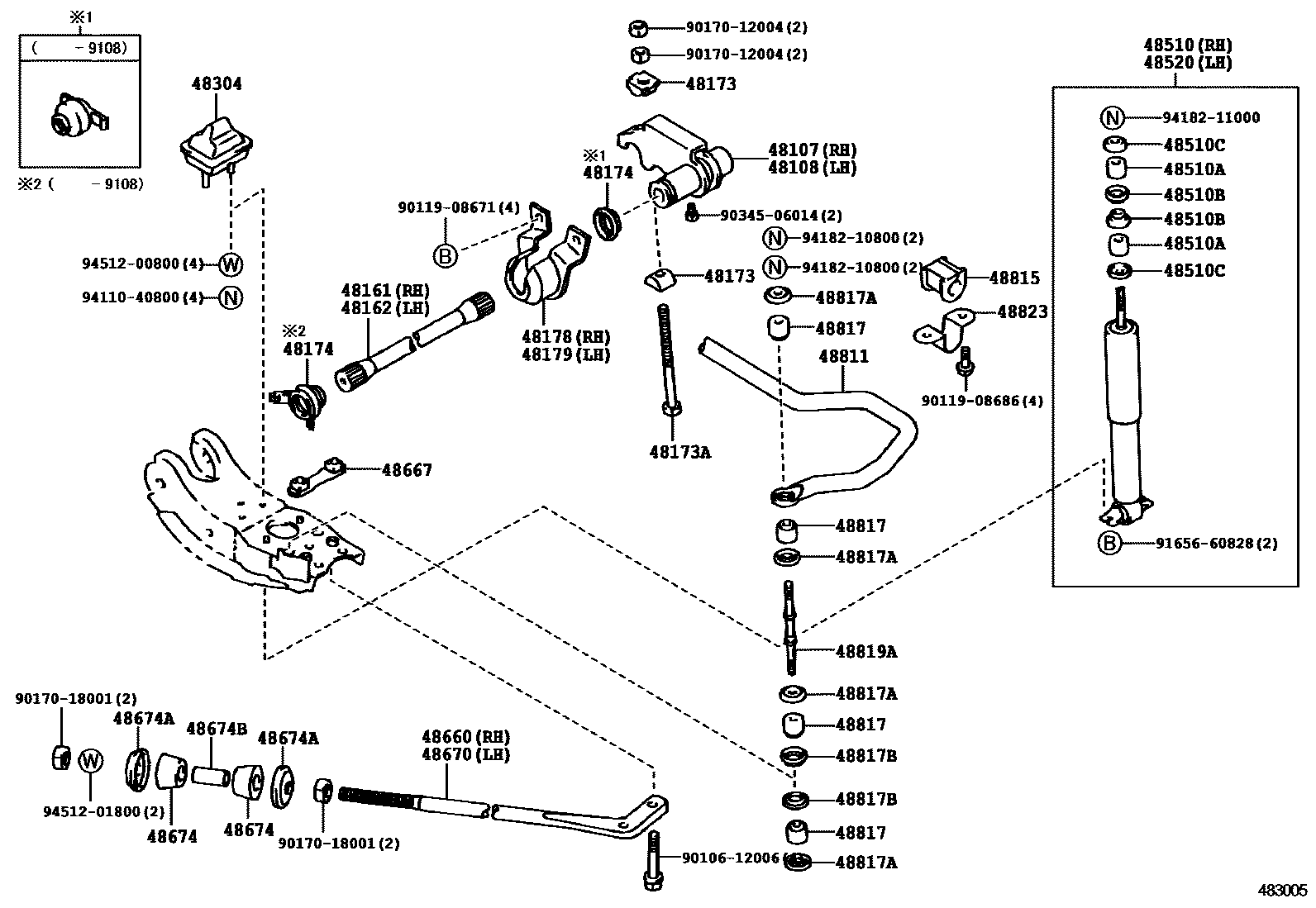

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35040iRN8#,90,VZN85,9#198808-199108

main48107-35050iRN12#,VZN120198904-199511

main48107-35060iRN8#,90,VZN85,9#199108-199501

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35040iRN8#,90,VZN85,9#198808-199108

main48108-35050iRN12#,VZN120198904-199511

main48108-35060iRN8#,90,VZN85,9#199108-199501

48161SPRING, TORSION BAR, RH

main48161-35040iRN80..STD..USA198808-199501

main48161-35110iRN12#,VZN120198904-199208

main48161-35160iRN85,90..SR5198808-199008

main48161-35190iVZN85,90..HLF..(CBU,IV3)198808-199501

main48161-35220iVZN85..10T;VZN85,95..IV6198808-199308

main48161-35230iRN85,90..DLX;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND198808-199501

main48161-35260iVZN120199208-199511

48162SPRING, TORSION BAR, LH

main48162-35040iRN80..STD..USA198808-199501

main48162-35110iRN12#,VZN120198904-199208

main48162-35160iRN85,90..SR5198808-199008

main48162-35190iVZN85,90..HLF..(CBU,IV3)198808-199501

main48162-35220iVZN85..10T;VZN85,95..IV6198808-199308

main48162-35230iRN85,90..DLX;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND198808-199501

main48162-35260iVZN120199208-199511

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iRN8#,90,VZN85,9#198808-199511

LWR

main48173-35010iRN12#,VZN120198808-199511

UPR

main48173-35020iRN12#,VZN120198904-199511

UPR

main48173-35030iRN8#,90,VZN85,9#198808-199501

LWR

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12104iRN8#,90,VZN85,9#198808-199501

main90101-12159iRN12#,VZN120198904-199511

48174COVER, TORSION BAR DUST

main48174-26010iVZN120198904-199511

main48174-35010iRN8#,90,VZN85,9#198808-199108

FR

main48174-35020iRN8#,90,VZN85,9#198808-199108

RR

main48174-35030iRN8#,90,VZN85,9#199108-199501

sub48174-35031

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-35020iRN8#,90,VZN85,9#198808-199108

48179PROTECTOR, TORSION BAR DUST COVER, LH

main48178-35020iRN8#,90,VZN85,9#198808-199108

main48179-35030iRN12#,VZN120198904-199511

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-04010iVZN85,9#;RN80..STD..USA199208-199501

(L)

main48304-04010iRN80..CND;RN8#,90..DLX199208-199501

W(FRONT STABILIZER),(L)

main48304-04020iRN80..CND;RN8#,90..DLX199208-199501

(L)

main48304-35120iRN12#,VZN120198904-199511

main48304-35130iRN85,90..DLX;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND198808-199501

W(FRONT STABILIZER),(J)

main48304-35130iVZN85,90;RN80..STD..USA;RN85,90,VZN95..SR5,STD198808-199501

(J)

main48304-35140iRN85,90..DLX;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND198808-199501

(J)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-09020iRN8#,90..USA199209-199405

MARK 48511-04020

sub48511-09021

main48511-39425iVZN85,95..IV6198808-199308

MARK 48511-35190

sub48511-39675

main48511-39675iRN85,90..SR5;VZN85,90..HLF..(CBU,IV3)198808-199501

MARK 48511-35340

sub48511-39676

main48511-39685iVZN85..CBU;RN8#,90..CND198808-199501

MARK 48511-35350

sub48511-39686

main48511-39685iVZN85..CBU;RN8#,90..CND199104-199405

MARK 48511-35350,W(OIL ABSORBER)

sub48511-39686

main48511-39705iRN12#198904-198908

MARK 48511-35540

sub48511-39706

main48511-39715iRN12#198908-199108

MARK 48511-35560,W(GAS SHOCK ABSORBER)

sub48511-39716

main48511-39725iVZN120198908-199208

MARK 48511-35580

sub48511-39726

main48511-39755iVZN120198904-198908

MARK 48511-35700

sub48511-39725

main48511-39765iRN12#198904-198908

MARK 48511-35721,W(GAS SHOCK ABSORBER)

sub48511-39766

main48511-39875iRN12#198908-199108

MARK 48511-35820

sub48511-39775

main48511-80004iRN8#,90..USA199104-199209

MARK 48511-35680

sub48511-09020

main48511-80014iVZN120199208-199511

MARK 48511-35880

sub48511-80025

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002iRN8#,90,VZN85,9#198808-199501

main90948-01003iRN12#,VZN120198904-199511

L=15

main90948-01045iRN12#,VZN120198904-199511

L=21

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02005iRN8#,90,VZN85,9#198808-199501

main90948-02131iRN12#,VZN120198904-199511

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02069iRN8#,90,VZN85,9#198808-199501

main90948-02119iRN12#,VZN120198904-199511

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-09020iRN8#,90..USA199209-199405

MARK 48511-04020

sub48511-09021

main48511-39425iVZN85,95..IV6198808-199308

MARK 48511-35190

sub48511-39675

main48511-39675iRN85,90..SR5;VZN85,90..HLF..(CBU,IV3)198808-199501

MARK 48511-35340

sub48511-39676

main48511-39685iVZN85..10T;RN8#,90..DLX,STD198808-199501

MARK 48511-35350

sub48511-39686

main48511-39685iVZN85..CBU;RN8#,90..CND199104-199405

MARK 48511-35350,W(OIL ABSORBER)

sub48511-39686

main48511-39705iRN12#198904-198908

MARK 48511-35540

sub48511-39706

main48511-39715iRN12#198908-199108

MARK 48511-35560,W(GAS SHOCK ABSORBER)

sub48511-39716

main48511-39725iVZN120198908-199208

MARK 48511-35580

sub48511-39726

main48511-39755iVZN120198904-198908

MARK 48511-35700

sub48511-39725

main48511-39765iRN12#198904-198908

MARK 48511-35721,W(GAS SHOCK ABSORBER)

sub48511-39766

main48511-39875iRN12#198908-199108

MARK 48511-35820

sub48511-39775

main48511-80004iRN8#,90..USA199104-199209

MARK 48511-35680

sub48511-09020

main48511-80014iVZN120199208-199511

MARK 48511-35880

sub48511-80025

48660BAR ASSY, STRUT, RH

main48661-35030iRN8#,90,VZN85,9#198808-199501

48667RETAINER, STRUT BAR

main48667-35020iRN8#,90,VZN85,9#198808-199501

sub48667-35030

48670BAR ASSY, STRUT, LH

main48671-35030iRN8#,90,VZN85,9#198808-199501

48674CUSHION, STRUT BAR

main48674-22021iRN8#,90,VZN85,9#198808-199501

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iRN8#,90,VZN85,9#198808-199501

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iRN8#,90,VZN85,9#198808-199501

48811BAR, STABILIZER, FRONT

main48811-35250iRN8#,90198808-199501

main48811-35260iVZN85..10T;VZN85,95..IV6198808-199308

main48811-35270iVZN85,90..HLF..(CBU,IV3)198808-199501

main48811-35330iRN12#,VZN120198904-198908

main48811-35350iRN12#,VZN120198908-199208

main48811-35380iVZN120199208-199511

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iVZN85,95198808-199308

main48815-24010iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main48815-35070iVZN120199208-199511

48817CUSHION, FRONT STABILIZER

main48817-30010iRN8#,90,VZN85,9#198808-199501

main90948-01002iRN12#,VZN120198904-199511

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iRN12#,VZN120198904-199511

main90948-02032iRN8#,90,VZN85,9#198808-199501

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iRN8#,90,VZN85,9#198808-199501

main90948-02034iRN12#,VZN120198904-199511

48819ABOLT, FRONT STABILIZER

main48819-35020iRN8#,90,VZN85,9#198808-199501

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-35050iRN8#,90,VZN85,9#198808-199501

9010612006

main90106-12006

9011908671

main90119-08671

9011908686

main90119-08686

9017012004

main90170-12004

9017018001

main90170-18001

9034506014

main90345-06014

9165660828

main91656-60828

9411040800

main94110-40800

9418210800

main94182-10800

9418211000

main94182-11000

9451200800

main94512-00800

9451201800

main94512-01800

40 parts on this diagram · 3 diagrams in section
