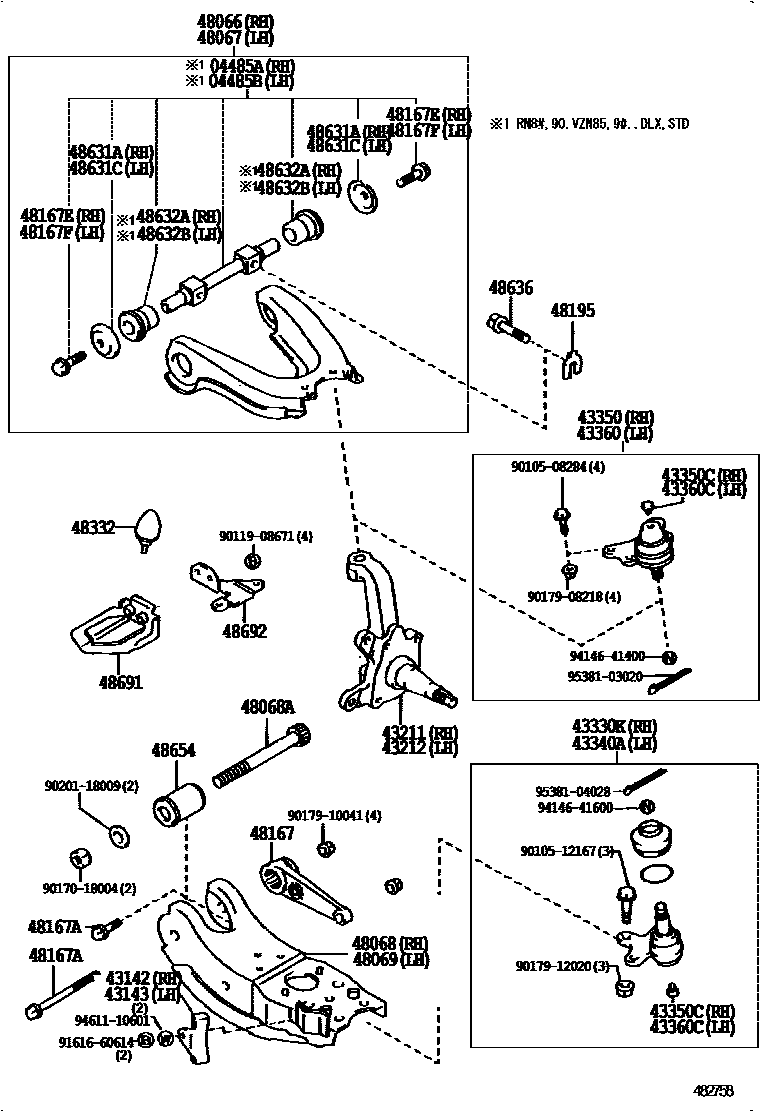

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-35050iRN8#,90,VZN85,9#..DLX,STD198808-199501

main04485-35060iRN12#,VZN120198904-199511

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-35050iRN8#,90,VZN85,9#..DLX,STD198808-199501

main04485-35060iRN12#,VZN120198904-199511

43142SEAT, STEERING KNUCKLE STOPPER, RH

main43142-35010iRN8#,90,VZN90199308-199501

43143SEAT, STEERING KNUCKLE STOPPER, LH

main43142-35010iRN8#,90,VZN90199308-199501

43211KNUCKLE, STEERING, RH

main43201-35030iRN12#,VZN120198904-199511

main43201-35060iVZN120199308-199511

W(4WHEEL *66)

main43211-35120iRN8#..CBR;RN80..STD..EFI..USA198808-199501

sub43211-35130

main43211-35130iRN90;RN80..DLX..EFI;RN80..EFI..CND;RN85,VZN85,9#..EFI198808-199501

43212KNUCKLE, STEERING, LH

main43202-35020iRN12#,VZN120198904-199511

main43202-35050iVZN120199308-199511

W(4WHEEL *66)

main43212-35080iRN8#..CBR;RN80..STD..EFI..USA198808-199501

sub43212-35090

main43212-35090iRN90;RN80..DLX..EFI;RN80..EFI..CND;RN85,VZN85,9#..EFI198808-199501

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39245iRN8#,90,VZN85,9#198808-199108

sub43330-39295

main43330-39265iRN12#,VZN120198904-199108

main43330-39295iRN8#,90,VZN85,9#199108-199501

main43330-39315iVZN120199108-199511

sub43330-39835

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39295iRN8#,90,VZN85,9#199108-199501

main43340-39225iRN8#,90,VZN85,9#198808-199108

sub43330-39295

main43340-39245iRN12#,VZN120198904-199511

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39075iRN8#,90,VZN85,9#198808-199501

main43350-39085iRN12#,VZN120198904-199511

43350CPLUG (FOR FRONT UPPER BALL JOINT RH)

main90345-06014iRN12#,8#,90,VZN120,85,9#198808-199511

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39075iRN8#,90,VZN85,9#198808-199501

main43360-39085iRN12#,VZN120198904-199511

43360CPLUG (FOR FRONT UPPER BALL JOINT LH)

main90345-06014iRN12#,8#,90,VZN120,85,9#198808-199511

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35080iRN8#,90,VZN85,9#..DLX,STD198808-199501

sub48066-34030

main48066-35090iRN85,90,VZN90..SR5198808-199501

main48066-35110iRN12#,VZN120198904-199511

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-35080iRN8#,90,VZN85,9#..DLX,STD198808-199501

sub48066-34030

main48066-35090iRN85,90,VZN90..SR5198808-199501

main48067-35060iRN12#,VZN120198904-199511

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35050iRN12#,VZN120198904-199410

sub48068-35051

main48068-35051iVZN120199410-199511

main48605-35120iRN90;RN80..DLX..EFI;RN80..EFI..CND;RN85,VZN85,9#..EFI198808-199308

sub48605-35121

main48605-35121iRN8#..CBR;RN80..STD..EFI..USA198808-199501

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003iRN8#,90,VZN85,9#198808-199501

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35050iRN12#,VZN120198904-199410

sub48069-35051

main48069-35051iVZN120199410-199511

main48606-35120iRN90;RN80..DLX..EFI;RN80..EFI..CND;RN85,VZN85,9#..EFI198808-199308

sub48606-35121

main48606-35121iRN8#..CBR;RN80..STD..EFI..USA198808-199501

48167ARM, TORQUE

main48167-35020iRN8#,90,VZN85,9#198808-199108

main48167-35040iRN8#,90,VZN85,9#199108-199501

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087iRN8#,90,VZN85,9#198808-199501

L=129

main90105-10088iRN8#,90,VZN85,9#198808-199501

L=26

sub91512-81025

48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)

main90105-12017iRN8#,90,VZN85,9#198808-199501

main90105-12112iRN12#,VZN120198904-199511

48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)

main90105-12017iRN8#,90,VZN85,9#198808-199501

main90105-12112iRN12#,VZN120198904-199511

48195SHIM, CAMBER ADJUST

main90565-12004iRN8#,90,VZN85,9#198808-199501

T=4.0

main90565-12008iRN8#,90,VZN85,9#198808-199501

T=1.6

main90565-12009iRN8#,90,VZN85,9#198808-199501

T=1.2

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iRN8#,90,VZN85,9#198808-199501

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02020iRN8#,90,VZN85,9#..DLX,STD198808-199501

main90948-02065iRN12#,VZN120198904-199511

FR

main90948-02066iRN12#,VZN120198904-199506

RR

sub90948-02142

main90948-02120iRN85,90,VZN90..SR5198808-199501

main90948-02142iVZN120199506-199511

RR

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02020iRN8#,90,VZN85,9#..DLX,STD198808-199501

main90948-02065iRN12#,VZN120198904-199511

FR

main90948-02066iRN12#,VZN120198904-199506

RR

sub90948-02142

main90948-02120iRN85,90,VZN90..SR5198808-199501

main90948-02142iVZN120199506-199511

RR

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-35020iRN8#,90,VZN85,9#..DLX,STD198808-199501

main48632-35050iRN12#,VZN120198904-199511

FR

main48635-35010iRN12#,VZN120198904-199511

RR

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-35020iRN8#,90,VZN85,9#..DLX,STD198808-199501

main48632-35050iRN12#,VZN120198904-199511

FR

main48635-35010iRN12#,VZN120198904-199511

RR

48636BOLT, UPPER ARM SET

main90105-12080iRN8#,90,VZN85,9#198808-199501

48654BUSH, LOWER ARM

main48654-35060iRN8#,90,VZN85,9#198808-199501

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-35011iRN8#,90,VZN85,9#198808-199501

48692BRACKET, UPPER ARM BUSH INSULATOR

main48692-35011iRN8#,90,VZN85,9#198808-199501

9010508284

main90105-08284

9010512167

main90105-12167

9011908671

main90119-08671

9017018004

main90170-18004

9017908218

main90179-08218

9017910041

main90179-10041

9017912020

main90179-12020

9020118009

main90201-18009

9161660614

main91616-60614

9414641400

main94146-41400

9414641600

main94146-41600

9538103020

main95381-03020

9538104028

main95381-04028

44 parts on this diagram · 2 diagrams in section
