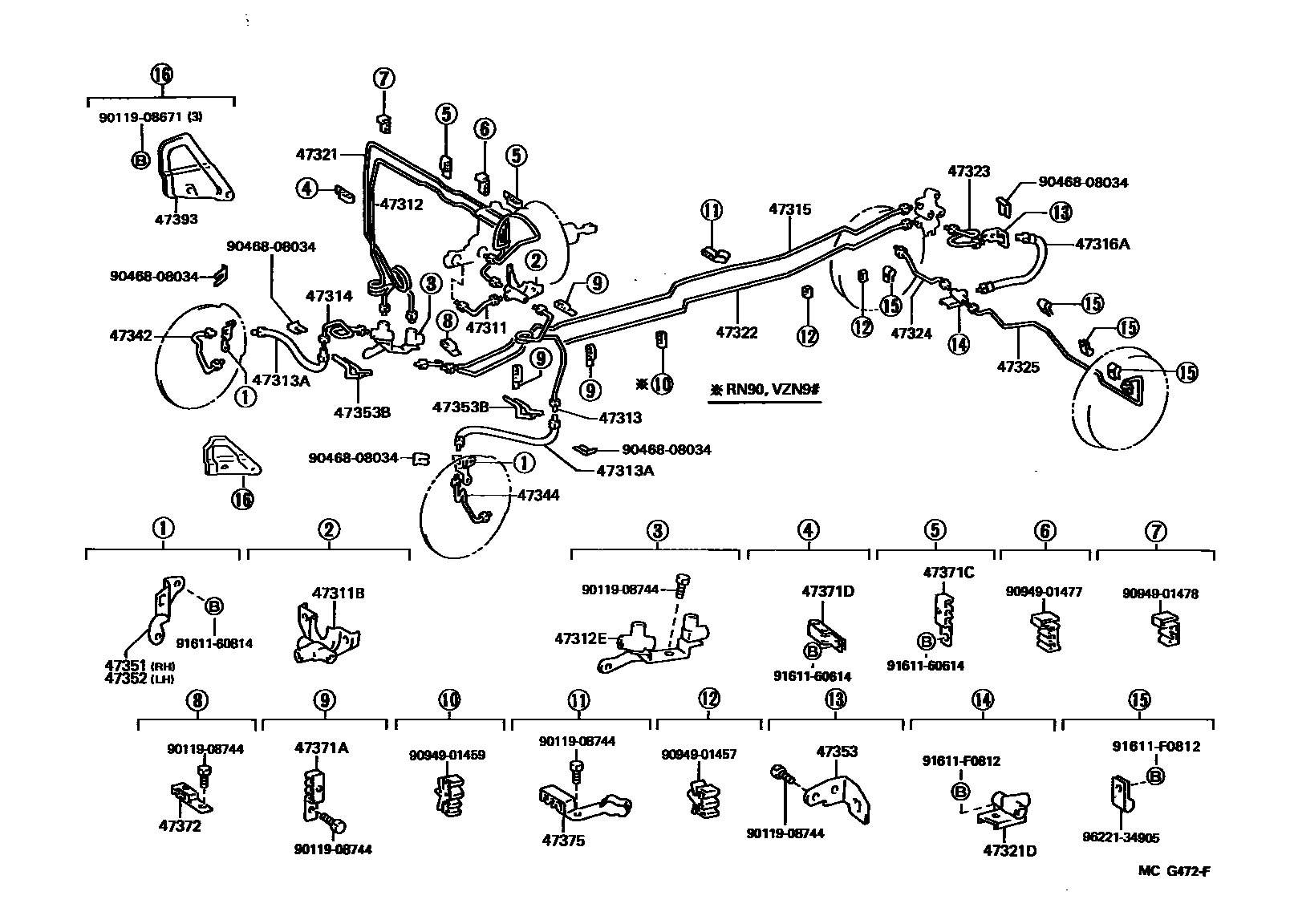

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ABS) 0006 1W(ABS) 0007 1

47311TUBE, FRONT BRAKE, NO.1

main47311-35440iRN12#,8#,90,VZN120,85,9#198808-199511

main47311-35470iVZN120199308-199511

W(4WHEEL*66)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10111iRN12#,8#,90,VZN120,85,9#198808-199511

47312TUBE, FRONT BRAKE, NO.2

main47312-35880iRN8#,90..EFI198808-199501

main47312-3D040iRN12#,VZN120198904-199511

main47312-3D060iVZN85,9#198808-199501

main47312-3D070iRN80..STD..CBR..USA198808-199008

main47312-3D080iRN8#,90..5F..CBR198808-199008

main47312-3D310iVZN120199308-199411

W(4WHEEL*66)

sub47312-3D311

main47312-3D311iVZN120199411-199511

W(4WHEEL*66)

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10233iRN12#,VZN120198904-199511

main90415-10006iRN8#,90,VZN85,9#198808-199501

47313TUBE, FRONT BRAKE, NO.3

main47313-35590iRN12#,VZN120198904-199008

main47313-35600iVZN85,9#;RN8#,90..5F..CBR198808-199501

main47313-35610iRN85,90..EFI;RN80..4F,4HC;RN80..5F..EFI198808-199501

main47313-35790iRN12#,VZN120199008-199511

main47313-35850iVZN120199308-199511

W(4WHEEL*66)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02581iRN8#,90,VZN85,9#198808-199501

sub90947-02447

main96950-33555iVZN120199508-199511

main96950-33656iRN12#,VZN120198904-199508

sub96950-33657

47314TUBE, FRONT BRAKE, NO.4

main47314-35170iRN8#,90,VZN85,9#198808-199501

main47314-35240iRN12#,VZN120198904-199008

main47314-35270iRN12#,VZN120199008-199511

main47314-35290iVZN120199308-199511

W(4WHEEL*66)

47315TUBE, FRONT BRAKE, NO.5

main47315-35170iRN80198808-199501

main47315-35180iRN85198808-199410

main47315-35190iVZN95198808-199308

main47315-35200iRN90198808-199501

main47315-35220iVZN85198808-199308

main47315-35230iVZN90198808-199501

main47315-35240iRN12#,VZN120198904-199308

main47315-35260iVZN120199308-199403

main47315-35261iVZN120199403-199511

main47315-35270iVZN120199308-199404

W(4WHEEL*66)

sub47315-35271

main47315-35271iVZN120199404-199511

W(4WHEEL*66)

47316TUBE, FRONT BRAKE, NO.6

main47316-35220iVZN120199308-199511

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02599iRN12#,VZN120198904-199508

main90947-02600iVZN120199508-199511

sub90947-02599

main96940-34206iRN8#,90,VZN85,9#198808-199501

sub96940-34205

47321TUBE, REAR BRAKE, NO.1

main47321-35510iRN80..STD..CBR..USA198808-199008

main47321-35560iRN12#,VZN120198904-199511

main47321-35570iVZN85,9#198808-199501

main47321-35580iRN8#,90..5F..CBR198808-199008

main47321-35610iRN8#,90..EFI198808-199501

main47321-35720iVZN120199308-199511

W(4WHEEL*66)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10198iRN8#,90,VZN85,9#198808-199501

main90413-10235iRN12#,VZN120198904-199511

47322TUBE, REAR BRAKE, NO.2

main47322-35470iRN12#198904-199108

main47322-35490iRN80198808-199501

main47322-35510iRN85198808-199410

main47322-35530iVZN95198808-199308

main47322-35540iRN90198808-199501

main47322-35570iVZN85198808-199308

main47322-35580iVZN90..DLX198808-199501

main47322-35590iVZN90..DLX199008-199501

W(2WHEEL*66)

main47322-35590iVZN90..SR5198908-199501

main47322-35630iRN85198908-199410

W(2WHEEL*66)

main47322-35640iRN90..SR5198908-199501

W(2WHEEL*66)

main47322-35650iVZN120198908-199511

main47322-35650iRN12#198908-199108

W(2WHEEL*66)

main47322-35670iRN80199008-199501

W(2WHEEL*66)

main47322-35680iVZN85199008-199308

W(2WHEEL*66)

main47322-35690iVZN95199008-199308

W(2WHEEL*66)

main47322-35710iVZN120199308-199404

W(*66)

sub47322-35711

main47322-35711iVZN120199404-199511

W(*66)

47323TUBE, REAR BRAKE, NO.3

main47323-35100iRN8#,90,VZN85,9#198808-199501

main47323-35110iRN12#,VZN120198904-199511

47324TUBE, REAR BRAKE, NO.4

main47324-35180iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47324-35200iVZN85..10T;VZN85..ST..IV6198808-199208

main47324-35210iVZN85,95..WT198808-199308

main47324-35220iRN12#,VZN120198904-199511

47325TUBE, REAR BRAKE, NO.5

main47325-35190iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47325-35210iVZN85..10T;VZN85..ST..IV6198808-199208

main47325-35220iVZN85,95..WT198808-199308

main47325-35230iRN12#,VZN120198904-199511

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35100iRN12#,VZN120198904-199511

main47341-35110iRN8#,90,VZN85,9#198808-199501

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35100iRN12#,VZN120198904-199511

main47343-35110iRN8#,90,VZN85,9#198808-199501

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35160iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47351-35170iVZN85..10T;VZN85,95..IV6198808-199308

main47351-35180iRN80..STD..USA198808-199501

main47352-35170iRN12#,VZN120198904-199511

main47352-35260iVZN120199308-199511

W(4WHEEL*66)

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35180iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47352-35190iVZN85..10T;VZN85,95..IV6198808-199308

main47352-35210iRN80..STD..USA198808-199501

main47354-35080iRN12#,VZN120198904-199511

main47354-35090iVZN120199308-199511

W(4WHEEL*66)

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-35200iRN8#,90,VZN85,9#198808-199501

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-35060iRN8#,90,VZN85,9#199108-199501

RH

main47353-35070iRN8#,90,VZN85,9#199108-199501

LH

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35070iRN8#..CBR198808-199008

main47371-35070iRN90..4HC..SR5198908-199008

W(2WHEEL*66)

main47371-35080iRN8#,90,VZN85,9#..EFI198808-199511

47371CCLAMP, BRAKE TUBE, NO.7

main47371-35130iRN12#,8#,90,VZN120,85,9#198808-199511

main47371-35200iVZN120199308-199511

W(*66)

47371DCLAMP, BRAKE TUBE, NO.8

main47371-35260iVZN120199308-199511

W(*66)

main47372-35080iRN12#,8#,90,VZN120,85,9#198808-199511

47372CLAMP, BRAKE TUBE, NO.2

main47372-35030iRN12#,8#,90,VZN120,85,9#198808-199511

main47372-35030iRN85..SR5;RN90..W..SR5198908-199501

W(2WHEEL*66)

47375CLAMP, BRAKE TUBE, NO.5

main47372-35120iRN12#,VZN120198904-199511

main47375-35090iRN8#,90,VZN85,9#..EFI198808-199501

main47375-35100iRN90..4HC..SR5198908-199008

W(2WHEEL*66)

main47375-35100iRN8#,90..CBR198808-199008

47393INSULATOR, BRAKE TUBE HEAT

main47393-35110iRN12#,VZN120198904-199511

9011908671

main90119-08671

9011908744

main90119-08744

9046808034

main90468-08034

9094901457

main90949-01457

9094901459

main90949-01459

9094901477

main90949-01477

9094901478

main90949-01478

9161160614

main91611-60614

9161160814

main91611-60814

91611F0812

main91611-F0812

9622134905

main96221-34905

39 parts on this diagram · 7 diagrams in section
