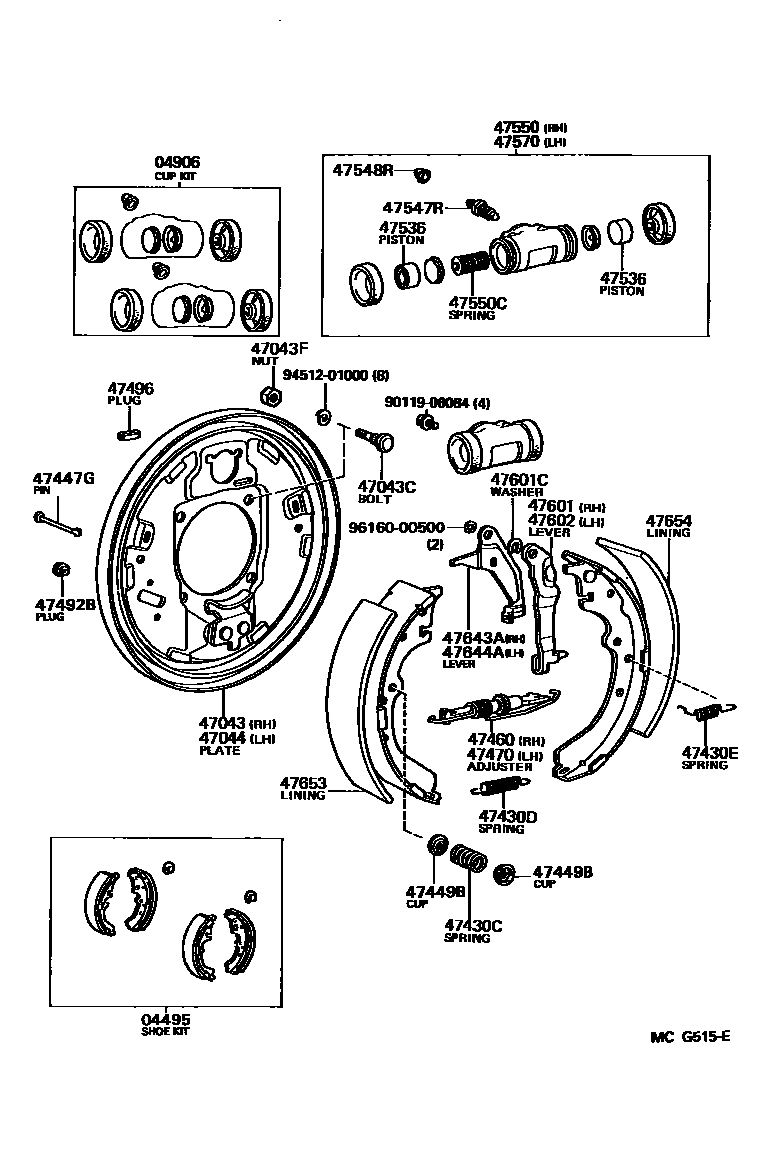

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04495SHOE KIT, REAR BRAKE

main04495-35060iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-198809

sub04495-35061

main04495-35061iRN8#,90,VZN85,90..HLF..(CBU,IV3)198809-199108

sub04495-35131

main04495-35120iVZN85..10T;VZN85..ST..IV6198808-198809

sub04495-35121

main04495-35121iVZN85..10T;VZN85..ST..IV6198809-198812

sub04495-35122

main04495-35122iVZN85..10T;VZN85..ST..IV6198812-199208

main04495-35140iVZN85,95..WT198808-198809

sub04495-35141

main04495-35141iVZN85,95..WT198809-199308

main04495-35151iRN12#,VZN120198904-199511

MARK NBK LN508

sub04495-35230

main04495-35170iRN8#,90,VZN90199108-199501

MARK AK LA509

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26050iVZN120199108-199511

sub04906-35120

main04906-30060iRN80..W..DLX198808-199501

main04906-30100iRN80..STD..USA198808-199501

main04906-35080iVZN85..ST..IV6198808-199308

main04906-35100iRN12#,VZN120198904-198909

main04906-35120iRN12#,VZN120199106-199108

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35061iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47043-35111iVZN85,95..WT198808-199308

main47043-35130iVZN85..10T;VZN85..ST..IV6198808-199208

main47043-35160iRN12#,VZN120198904-199511

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-10028iVZN85,95..WT198808-199308

*10-1.25PX27-18

main90101-10137iVZN85,95..WT198808-199308

*10-1.25PX33-18

main90114-10002iVZN85..10T;VZN85..ST..IV6198808-199511

*10-1.25PX37-18.5

main90114-10016iVZN85..10T;VZN85..ST..IV6198808-199208

*10-1.25PX41-18

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10021iVZN85,95..WT198808-199308

main90179-10067iVZN85..ST;RN12#,8#,90,VZN120,90198808-199511

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35051iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47044-35101iVZN85,95..WT198808-199308

main47044-35120iVZN85..10T;VZN85..ST..IV6198808-199208

main47044-35150iRN12#,VZN120198904-199511

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iRN12#,VZN120198904-199511

main90501-20604iVZN85..10T;VZN85,95..IV6198808-199308

main90501-20756iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12412iVZN85..10T;VZN85,95..IV6198808-199308

main90506-18031iRN12#,VZN120198904-199511

main90506-20005iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main90506-16343iVZN85..10T;VZN85,95..IV6198808-199308

main90506-26011iRN12#,VZN120198904-199108

RH

main90506-26011iVZN120199108-199511

LH

main90506-26014iVZN120199108-199511

RH

main90506-26014iRN12#,VZN120198904-199108

LH

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iVZN85..10T;VZN85,95..IV6198808-199308

main47447-30020iVZN85..HLF..DLX;RN12#,8#,90,VZN120,90198808-199511

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iRN12#,8#,90,VZN120,85,9#198808-199511

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35020iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47062-60011iRN12#,VZN120198904-199511

main47405-30020iVZN85..10T;VZN85,95..IV6198808-199308

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-60011iRN12#,VZN120198904-199511

main47062-35020iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47406-30020iVZN85..10T;VZN85,95..IV6198808-199308

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iRN12#,8#,90,VZN120,85,9#198808-199511

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iVZN85..HLF..DLX;RN12#,8#,90,VZN120,90198808-199511

main47491-35040iVZN85..10T;VZN85,95..IV6198808-199308

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iRN80..STD..USA198808-199501

main47051-30030iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47531-26070iVZN85..10T;VZN85,95..IV6198808-199308

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47547-26010iVZN85..10T;VZN85,95..IV6198808-199308

main47547-60020iRN12#,VZN120198904-199511

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iRN12#,8#,90,VZN120,85,9#198808-199511

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iVZN85..10T;VZN85,95..IV6198808-199308

main47550-26110iRN12#,VZN120199106-199511

main47550-30100iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47550-30130iRN80..STD..USA198808-199501

main47550-35170iRN12#,VZN120198904-199106

sub47550-35190

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010iVZN85..10T;VZN85,95..IV6;RN80..STD..USA198808-199501

main47509-35020iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47509-60010iRN12#,VZN120199106-199511

main90501-09079iRN12#,VZN120198904-199106

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iVZN85..10T;VZN85,95..IV6198808-199308

main47550-26110iRN12#,VZN120199106-199511

main47550-30100iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47550-30130iRN80..STD..USA198808-199501

main47550-35170iRN12#,VZN120198904-199106

sub47550-35190

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iVZN85..10T;VZN85,95..IV6198808-199308

main47611-35020iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47612-35040iRN12#,VZN120198904-199511

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iRN12#,8#,90,VZN120,85,9#198808-199511

T=1.6

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iVZN85..10T;VZN85,95..IV6198808-199308

main47611-35040iRN12#,VZN120198904-199511

main47612-35020iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20011iVZN85..10T;VZN85,95..IV6198808-199308

main47643-35020iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47644-60010iRN12#,VZN120198904-199511

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-20011iVZN85..10T;VZN85,95..IV6198808-199308

main47643-60010iRN12#,VZN120198904-199511

main47644-35020iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-30050iRN8#,90..CBR;RN85,90..4HC;RN85,90..W..USA;RN80,VZN85,90..HLF..(DLX,SR5)..EFI198808-199108

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-30050iRN8#,90..CBR;RN85,90..4HC;RN85,90..W..USA;RN80,VZN85,90..HLF..(DLX,SR5)..EFI198808-199108

9011906084

main90119-06084

9451201000

main94512-01000

9616000500

main96160-00500

31 parts on this diagram · 3 diagrams in section
