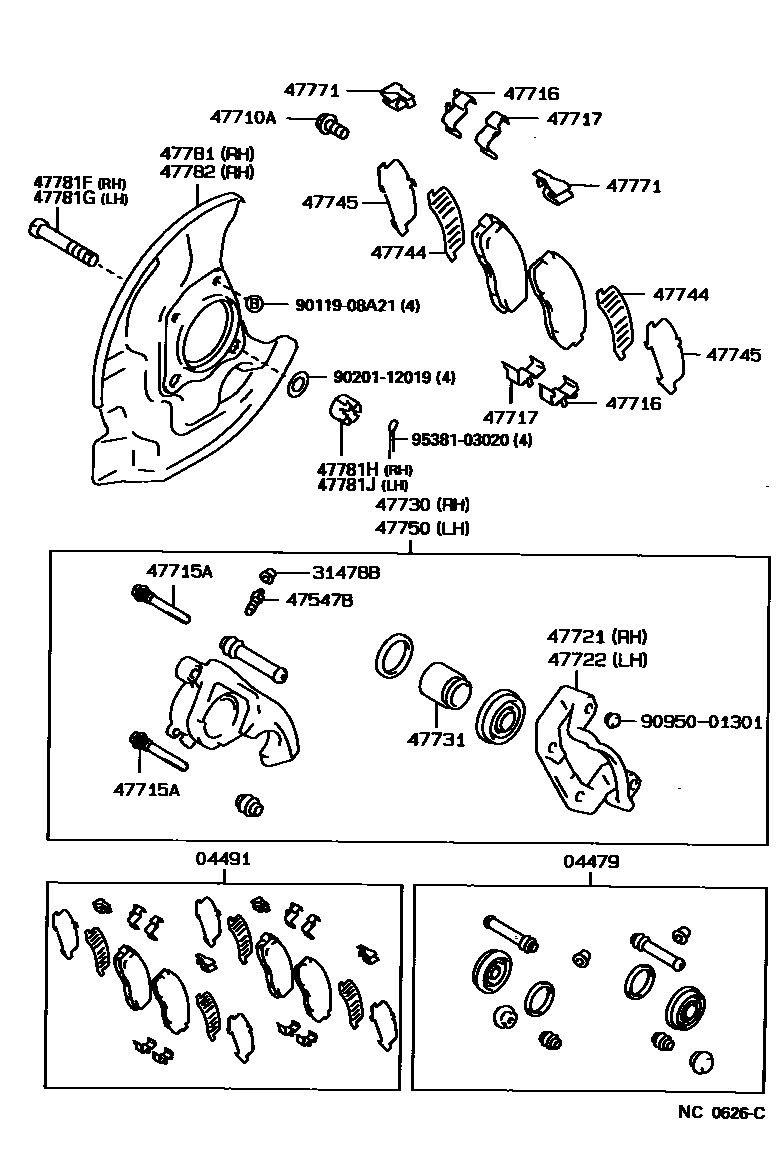

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22010iRN80..STD..USA198808-199501

main04479-22020iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main04479-26030iVZN85,95..WT198808-199308

main04479-35010iRN12#,VZN120198904-199106

main04479-40010iVZN85..10T;VZN85..ST..IV6198808-199208

sub04479-35050

main04479-60020iRN12#,VZN120199106-199511

04491PAD KIT, DISC BRAKE, FRONT

main04491-22250iRN80..STD..USA198808-199108

sub04465-22140

main04491-22280iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199108

sub04465-22180

main04491-35150iVZN85,95..WT198808-199308

sub04465-35110

main04491-35190iRN12#,VZN120198904-199106

sub04491-35160

main04491-35200iVZN85..10T;VZN85..ST..IV6198808-199208

sub04465-35020

main04491-35220iRN80..STD..USA199108-199501

sub04465-35120

main04491-35230iRN80..CND;RN8#,90,VZN90..DLX,SR5199108-199501

sub04465-22090

main04491-35240iRN12#,VZN120199106-199309

sub04465-35140

main04491-35241iVZN120199309-199312

sub04465-35140

main04491-35250iVZN120199312-199408

sub04491-35251

main04491-35251iVZN120199408-199505

sub04465-35060

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRN8#,90,VZN120,85,9#198808-199511

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-04010iRN80..STD..USA199210-199501

(L)

main47547-12010iVZN85..10T;VZN85,95..IV6198808-199308

main47547-20030iRN12#,VZN120198904-199511

main47547-35020iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

(J)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144iRN12#,VZN120198904-199511

*12-1.25PX38-23

main90119-12058iRN8#,90,VZN85,9#198808-199501

*12-1.25PX31-20

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22010iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22010iRN80..STD..USA198808-199501

main47716-26040iVZN85,95199110-199308

main47716-35010iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47716-40010iVZN85..10T;VZN85,95..IV6198808-199110

sub47716-26040

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22010iRN80..STD..USA198808-199501

main47717-26010iVZN85,95199110-199308

main47717-35010iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47717-40010iVZN85..10T;VZN85,95..IV6198808-199110

sub47717-26010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-04021iRN80..CND;RN8#,90,VZN90..DLX,SR5199210-199501

(L)

main47721-26050iVZN85..10T;VZN85..ST..IV6198808-199208

main47721-35010iRN80..STD..USA198808-199501

main47721-35020iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

(J)

main47721-35030iVZN85,95..WT198808-199308

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iVZN85..10T;VZN85..ST..IV6198808-199208

main47721-35030iVZN85,95..WT198808-199108

main47722-04021iRN80..CND;RN8#,90,VZN90..DLX,SR5199210-199501

(L)

main47722-35010iRN80..STD..USA198808-199501

main47722-35020iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

(J)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-04021iRN80..CND;RN8#,90,VZN90..DLX,SR5199210-199501

(L)

main47730-26080iVZN85..10T;VZN85..ST..IV6198808-199208

main47730-35030iRN80..STD..USA198808-199501

main47730-35050iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

(J)

main47730-35070iVZN85,95..WT198808-199308

main47730-35080iRN12#,VZN120198904-199106

main47730-35090iRN12#,VZN120199106-199511

47731PISTON, FRONT DISC BRAKE

main47731-04010iRN80..STD..USA199210-199501

(L)

main47731-25010iVZN85,95..WT198808-199308

main47731-30050iRN80..STD..USA198808-199501

(J)

main47731-35010iRN12#,VZN120198904-199106

main47731-35020iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47731-40010iVZN85..10T;VZN85..ST..IV6198808-199208

main47731-60010iRN12#,VZN120199106-199511

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22081iRN80..STD..USA198808-199501

main47744-26020iVZN85..10T;VZN85..ST..IV6198808-199208

main47744-35020iRN12#,VZN120198904-199511

main47744-35030iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47744-35040iVZN85,95..WT198808-199308

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-22041iRN80..STD..USA198808-199501

main47745-35020iVZN120198904-199511

main47745-35030iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47745-35040iVZN85,95..WT198808-199308

main47745-40020iVZN85..10T;VZN85..ST..IV6198808-199208

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-04021iRN80..CND;RN8#,90,VZN90..DLX,SR5199210-199501

(L)

main47750-26080iVZN85..10T;VZN85..ST..IV6198808-199208

main47750-35030iRN80..STD..USA198808-199501

main47750-35050iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)198808-199501

(J)

main47750-35070iVZN85,95..WT198808-199308

main47750-35080iRN12#,VZN120198904-199106

main47750-35090iRN12#,VZN120199106-199511

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47771-26040iVZN85,95..WT198808-199308

main47771-35010iVZN85..10T;VZN85..ST..IV6198808-199208

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-35030iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47781-35080iVZN85..10T;VZN85,95..IV6198808-199308

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90102-12006iRN8#,90,VZN85,9#198808-199501

NO.1

main90102-12011iRN8#,90,VZN85,9#198808-199501

NO.2

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90102-12006iRN8#,90,VZN85,9#198808-199501

NO.1

main90102-12011iRN8#,90,VZN85,9#198808-199501

NO.2

47781HNUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90171-12006iRN8#,90,VZN85,9#198808-199501

47781JNUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90171-12006iRN8#,90,VZN85,9#198808-199501

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-35030iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199501

main47782-35080iVZN85..10T;VZN85,95..IV6198808-199308

9011908A21

main90119-08A21

9020112019

main90201-12019

9095001301

main90950-01301

9538103020

main95381-03020

26 parts on this diagram · 4 diagrams in section
