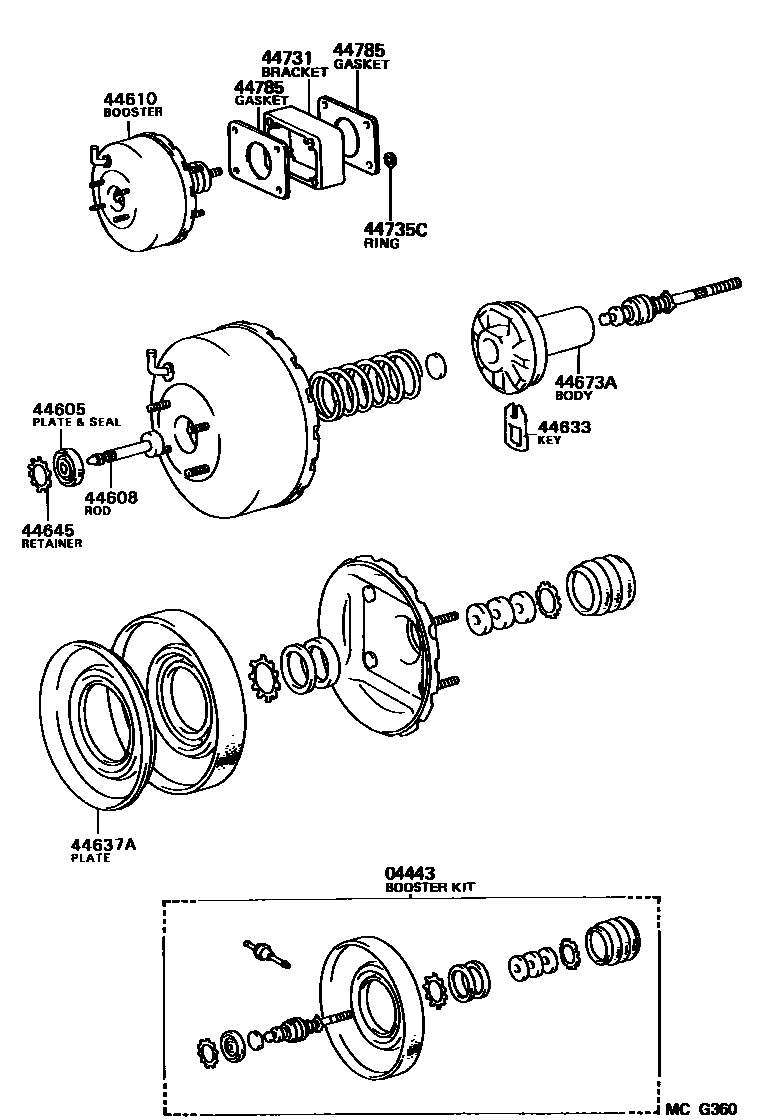

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-35740iRN80..STD..USA198808-199108

main04443-35750iRN8#,90..5F..CBR198808-199008

main04443-35760iRN80..EFI..CND;RN8#,90..(DLX,SR5)..EFI198808-199108

main04443-35770iVZN85,9#198808-199108

main04443-35860iRN12#,VZN120198904-199106

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iRN8#,90..CBR;RN80..STD..EFI..USA198808-199108

main44605-30350iRN80..DLX;RN80..CND;RN85,90,VZN85,9#199106-199108

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-17090iRN80..DLX;RN80..CND;RN85,90,VZN85,9#199106-199108

main44608-32020iRN8#,90..CBR;RN80..STD..EFI..USA198808-199108

44610BOOSTER ASSY, BRAKE

main44610-04010iRN80..STD..USA199108-199501

main44610-3D140iRN80..STD..USA199008-199108

EXHAUST EMISSION CONTROL(CALIFORNIA)

main44610-3D150iRN8#,90..5F..CBR198808-199008

main44610-3D160iRN80..EFI..CND;RN8#,90..(DLX,SR5)..EFI198808-199108

main44610-3D170iVZN85,9#198808-199108

main44610-3D330iRN12#,VZN120198904-199106

main44610-3D450iRN80..CND;RN8#,90..DLX199108-199501

main44610-3D460iVZN85,9#199108-199501

main44610-3D470iVZN120199108-199111

main44610-3D560iRN12#,VZN120199106-199108

main44610-3D580iVZN120199111-199308

main44610-3D610iVZN120199308-199511

main44610-3D620iVZN120199308-199511

W(4WHEEL*66)

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iRN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#..EFI198808-199106

main44633-28130iRN8#,90..CBR;RN80..STD..EFI..USA198808-199108

44637APLATE, BOOSTER DIAPHRAGM

main44637-20810iRN80..EFI..CND;RN8#,90..(DLX,SR5)..EFI198808-199108

main44637-28300iRN12#,VZN120,85,9#198808-199106

main44637-32040iRN80..STD..USA198808-199108

main44637-3D150iRN8#,90..5F..CBR198808-199008

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iRN8#,90,VZN85,9#199106-199108

44673ABODY, BOOSTER VALVE

main44673-20810iRN80..DLX;RN80..CND;RN85,90,VZN85,9#199106-199108

main44673-32040iRN80..STD..USA198808-199108

main44673-3D150iRN8#,90..5F..CBR198808-199008

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35110iVZN85,9#;RN80..STD..USA198808-199501

main44731-35120iRN8#,90..5F..CBR198808-199008

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010×2iVZN85,9#;RN8#,90..CBR;RN80..STD..EFI..USA198808-199501

44785GASKET, BRAKE BOOSTER

main44785-35020iVZN85,9#;RN8#,90..CBR;RN80..STD..EFI..USA198808-199108

11 parts on this diagram · 4 diagrams in section
