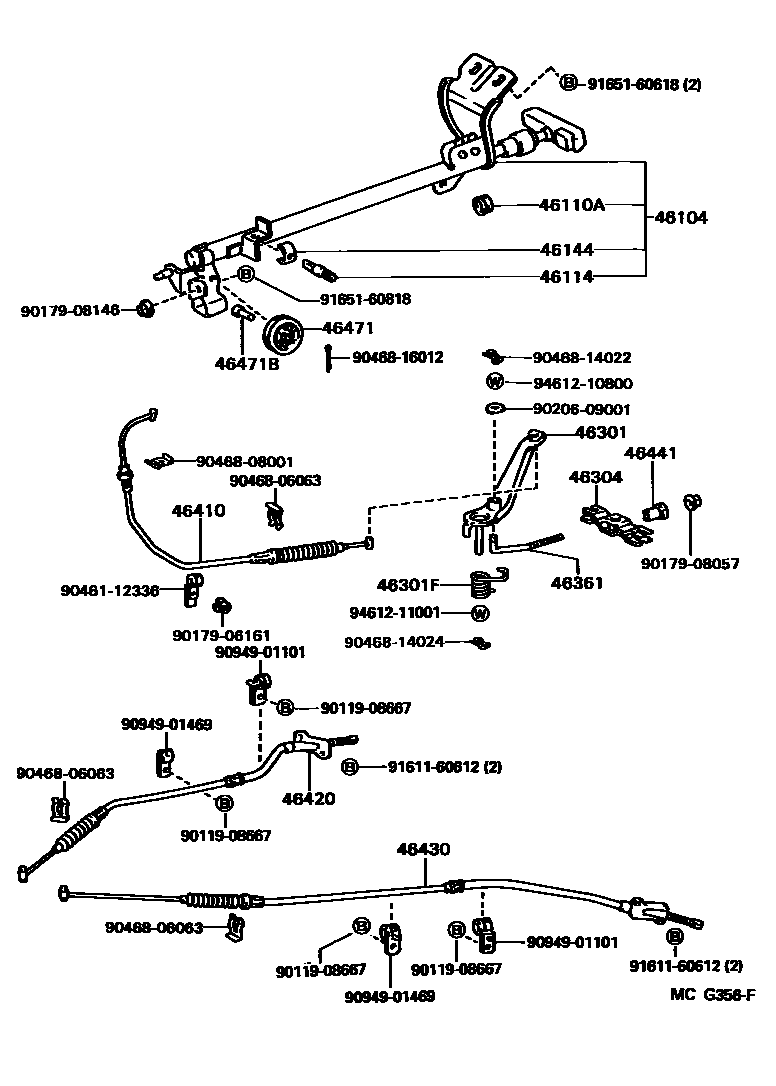

PARKING BRAKE & CABLE

0001 1 0002 1

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-35010iRN12#,8#,90,VZN120,85,9#198808-199306

sub46104-35030

main46104-35030iRN8#,90,VZN120,85,9#199306-199511

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iRN12#,8#,90,VZN120,85,9#198808-199511

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iRN12#,8#,90,VZN120,85,9#198808-199511

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iRN12#,8#,90,VZN120,85,9#198808-199511

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35170iVZN85..10T;VZN85,95..IV6198808-199501

main46301-35180iRN8#,90,VZN85,90..HLF..(CBU,IV3)198808-199108

main46301-35210iRN12#,VZN120198904-199108

main46301-35220iVZN120199108-199511

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32018iRN8#,90,VZN85,9#198808-199501

main90508-35033iRN12#,VZN120198904-199009

sub90508-38002

main90508-38002iRN12#,VZN120199009-199511

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iRN8#,90,VZN85,9#198808-199501

main46304-35010iRN12#,VZN120198904-199511

46361ROD, PARKING BRAKE PULL

main46361-35070iRN8#,90,VZN85,9#198808-199501

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35490iVZN85,9#198808-199501

main46410-35500iRN8#,90198808-199108

main46410-35630iRN12#,VZN120198904-199511

main46410-35710iRN8#,90199108-199501

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35340iRN80198808-199501

main46420-35350iRN85,VZN85..HLF..(CBU,IV3)198808-199410

main46420-35370iRN90,VZN90198808-199501

main46420-35450iVZN95198808-199308

main46420-35470iVZN85..IV6;VZN85..10T198808-199308

main46420-35520iRN12#,VZN120198904-199511

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35250iRN80198808-199501

main46430-35260iRN85,VZN85..HLF..(CBU,IV3)198808-199410

main46430-35280iRN90,VZN90198808-199501

main46430-35360iVZN95198808-199308

main46430-35380iVZN85..IV6;VZN85..10T198808-199308

main46430-35400iRN12#,VZN120198904-199511

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iRN12#,VZN120198904-199511

main46441-35010iRN8#,90,VZN85,9#198808-199501

46471PULLEY, WIRE

main46471-20010iRN12#,8#,90,VZN120,85,9#198808-199511

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iRN12#,8#,90,VZN120,85,9#198808-199511

9011908667

main90119-08667

9017906161

main90179-06161

9017908057

main90179-08057

9017908146

main90179-08146

9020609001

main90206-09001

9046112336

main90461-12336

9046806063

main90468-06063

9046808001

main90468-08001

9046814022

main90468-14022

9046814024

main90468-14024

9046816012

main90468-16012

9094901101

main90949-01101

9094901469

main90949-01469

9161160612

main91611-60612

9165160618

main91651-60618

9165160818

main91651-60818

9461210800

main94612-10800

9461211001

main94612-11001

32 parts on this diagram · 2 diagrams in section
