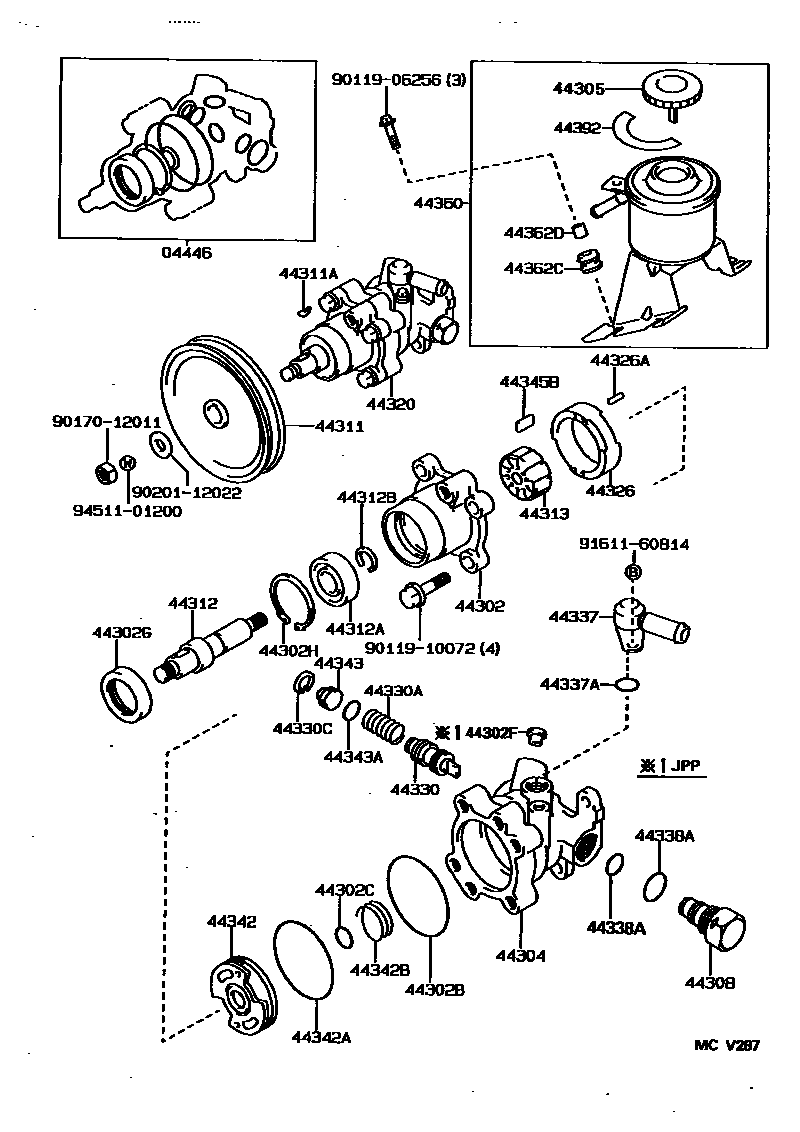

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20030iRN12#,VZN120,85,9#¥3,070198808-199501

sub04446-20031¥3,090

main04446-30030iRN8#,90¥3,580198808-199501

main04446-33021iVZN120¥2,830199108-199502

sub04446-20090¥2,860

main04446-35050iVZN120¥2,530199502-199511

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iRN12#,8#,90¥15,500198808-199501

main44302-35010iVZN120,85,9#¥24,300198808-199511

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iRN12#,8#,90¥350198808-199501

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iRN12#,8#,90¥300198808-199501

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iRN8#,90,VZN120,90¥230199108-199511

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iVZN120,85,9#¥240198808-199511

main90311-24001iRN12#,8#,90¥220198808-199501

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iRN12#,8#,90¥580198808-199501

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-35021iRN8#,90..CBR¥35,100198808-199008

main44304-35031iRN12#,8#,90..EFI¥35,100198808-199501

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iRN12#,8#,90,VZN120,85,9#¥1,940198808-199511

sub44305-22060¥1,940

main44305-35010iRN8#,90¥2,000199108-199501

sub44305-35030¥1,990

44308UNION SUB-ASSY, PRESSURE PORT

main44308-30080iVZN90..SR5¥1,620198808-199501

main44308-35040iVZN90..DLX;VZN120,85,95¥1,970198808-199511

main44308-35060iRN12#,8#,90¥1,970198808-199501

44311PULLEY, VANE PUMP

main44311-20010iRN12#,8#,90¥7,600198808-199501

main44311-35020iVZN120,85,9#¥8,700198808-199511

44311AKEY, VANE PUMP PULLEY

main90280-05008iRN12#,8#,90,VZN120,85,9#¥220198808-199511

44312SHAFT, VANE PUMP

main44312-12010iRN12#,8#,90¥3,340198808-199501

main44312-12030iVZN120,85,9#¥2,950198808-199511

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iRN12#,8#,90¥1,240198808-199501

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iVZN120,85,9#¥140198808-199511

main90520-15001iRN12#,8#,90¥240198808-199501

sub90520-15005¥80

44313ROTOR, VANE PUMP

main44313-12010iRN8#,90¥7,900198808-198810

NO MARK

sub44313-22040¥7,700

main44313-12020iRN8#,90¥7,900198808-198810

MARK 1

sub44313-22050¥7,700

main44313-12030iRN8#,90¥7,900198808-198810

MARK 2

sub44313-22060¥7,700

main44313-12040iRN8#,90¥7,900198808-198810

MARK 3

sub44313-22070¥7,700

main44313-12050iRN8#,90¥7,900198808-198810

MARK 4

sub44313-22080¥7,700

main44313-22040iVZN85,9#¥7,700198808-199505

NO MARK

main44313-22050iRN12#,8#,90,VZN120,85,9#¥7,700198808-199511

MARK 1

main44313-22060iRN12#,8#,90,VZN120,85,9#¥7,700198808-199511

MARK 2

main44313-22070iRN12#,8#,90,VZN120,85,9#¥7,700198808-199511

MARK 3

main44313-22080iVZN85,9#¥7,700198808-199511

MARK 4

main44313-35010iVZN120¥1,130199505-199511

MARK 5

44320PUMP ASSY, VANE

main44320-35230iRN8#,90..CBR¥82,100198808-199008

sub44320-35231¥81,700

main44320-35240iRN12#,8#,90..EFI¥82,100198808-199105

sub44320-35241¥81,700

main44320-35241iRN12#,8#,90¥81,700199105-199501

main44320-35270iVZN85,9#..(DLX,STD)..USA¥94,100198808-198908

sub44320-35370¥94,100

main44320-35280iVZN90..SR5¥94,100198808-198908

main44320-35340iRN12#¥81,700198904-198908

main44320-35351iVZN120¥93,500198904-198908

sub44320-35370¥94,100

main44320-35370iVZN90..DLX..USA;VZN120,85,95..USA¥94,100198904-199002

COLD SPEC

main44320-35370iVZN85,9#..(DLX,STD)..CND¥94,100198808-198908

main44320-35400iVZN90..SR5¥94,100198908-199105

sub44320-35401¥93,200

main44320-35401iVZN90..SR5¥93,200199105-199501

main44320-35410iVZN90..DLX;VZN120,85,95¥94,100198908-199105

sub44320-35411¥93,200

main44320-35411iVZN90..DLX;VZN120,85,95¥93,200199105-199501

main44320-35430iVZN120¥93,200199108-199511

44326RING, CAM(FOR VANE PUMP)

main44325-12010iRN8#,90..CBR¥8,700198808-199008

NO MARK

main44325-12020iRN12#,8#,90¥8,700198808-199008

MARK 1

main44325-12030iRN12#,8#,90¥8,700198808-199008

MARK 2

main44325-12040iRN8#,90..CBR¥8,700198808-199008

MARK 3

main44325-12050iRN8#,90..CBR¥8,700198808-199008

MARK 4

main44325-22070iRN12#,8#,90..EFI¥8,600198910-199501

NO MARK

main44325-22080iRN12#,8#,90..EFI¥8,600198910-199501

MARK 1

main44325-22090iRN12#,8#,90..EFI¥8,600198910-199501

MARK 2

main44325-22100iRN12#,8#,90..EFI¥8,600198910-199501

MARK 3

main44325-22110iRN12#,8#,90..EFI¥8,600198910-199501

MARK 4

main44325-30100iVZN85,9#..(DLX,STD)..USA¥8,700198909-199002

NO MARK,COLD SPEC

main44325-30100iVZN120,85,9#¥8,700198808-198909

NO MARK

main44325-30110iVZN120,85,9#¥8,700198808-198909

MARK 1

main44325-30110iVZN85,9#..(DLX,STD)..USA¥8,700198909-199002

MARK 1,COLD SPEC

main44325-30120iVZN85,9#..(DLX,STD)..USA¥8,700198909-199002

MARK 2,COLD SPEC

main44325-30120iVZN120,85,9#¥8,700198808-198909

MARK 2

main44325-30130iVZN120,85,9#¥8,700198808-198909

MARK 3

main44325-30130iVZN85,9#..(DLX,STD)..USA¥8,700198909-199002

MARK 3,COLD SPEC

main44325-30140iVZN85,9#..(DLX,STD)..USA¥8,700198909-199002

MARK 4,COLD SPEC

main44325-30140iVZN120,85,9#¥8,700198808-198909

MARK 4

main44325-35010iVZN120,85,9#¥8,600198909-199511

NO MARK

sub44325-50010¥6,900

main44325-35020iVZN120,85,9#¥8,600198909-199511

MARK 1

sub44325-50020¥6,900

main44325-35030iVZN120,85,9#¥8,600198909-199511

MARK 2

sub44325-50030¥6,900

main44325-35040iVZN120,85,9#¥8,600198909-199511

MARK 3

sub44325-50040¥6,900

main44325-35050iVZN120,85,9#¥8,600198909-199511

MARK 4

sub44325-50050¥6,900

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iVZN120,85,9#¥150198808-199511

L=28,OD=4.0

main90250-04049iVZN120,85,9#¥190198808-199511

L=43,OD=4.0

main90250-05008iRN12#,8#,90¥240198808-199501

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-12130iRN8#,90;VZN85,9#..(DLX,STD)..USA¥8,100198808-199108

MARK A

sub44330-12131¥8,600

main44330-12131iRN12#,8#,90¥8,600198906-199501

MARK A

sub44330-32670¥8,600

main44330-12140iVZN85,9#..(DLX,STD)..USA¥8,100198808-199108

MARK B

sub44330-12141¥8,600

main44330-12141iRN12#,8#,90¥8,600198906-199501

MARK B

sub44330-32680¥8,600

main44330-12150iRN8#,90;VZN85,9#..(DLX,STD)..USA¥8,100198808-199108

MARK C

sub44330-12151¥8,600

main44330-12151iRN12#,8#,90¥8,600198906-199501

MARK C

sub44330-32690¥8,600

main44330-12160iVZN90..DLX;VZN120,85,95¥8,100198808-199108

MARK D

sub44330-12161¥8,600

main44330-12161iRN12#,8#,90¥8,600198906-199501

MARK D

sub44330-32700¥8,600

main44330-12170iRN8#,90;VZN85,9#..(DLX,STD)..USA¥8,100198808-199108

MARK E

sub44330-12171¥8,600

main44330-12171iRN8#,90¥8,600198906-199501

MARK E

sub44330-32710¥8,600

main44330-12180iVZN85,9#..(DLX,STD)..USA¥8,100198808-199108

MARK F

sub44330-12181¥8,600

main44330-12181iRN12#,8#,90¥8,600198906-199501

MARK F

sub44330-32720¥8,600

main44330-14010iRN12#,VZN120¥7,900198904-198908

MARK A

sub44330-20010¥8,600

main44330-14020iRN12#,VZN120¥7,900198904-198908

MARK B

sub44330-20020¥8,600

main44330-14030iRN12#,VZN120¥7,900198904-198908

MARK C

sub44330-20030¥8,600

main44330-14040iRN12#,VZN120¥7,900198904-198908

MARK D

sub44330-20040¥8,600

main44330-14050iRN12#,VZN120¥7,900198904-198908

MARK E

sub44330-20050¥8,600

main44330-14060iRN12#,VZN120¥7,900198904-198908

MARK F

sub44330-20060¥8,600

main44330-20310iVZN120¥8,600199108-199511

MARK A

sub44330-35250¥8,600

main44330-20320iVZN120¥8,600199108-199511

MARK B

sub44330-35260¥8,600

main44330-20330iVZN120¥8,600199108-199511

MARK C

sub44330-35270¥8,600

main44330-20340iVZN120¥8,600199108-199511

MARK D

sub44330-35280¥8,600

main44330-20350iVZN120¥8,600199108-199511

MARK E

sub44330-35290¥8,600

main44330-20360iVZN120¥8,600199108-199511

MARK F

sub44330-35300¥8,600

main44330-35130iVZN90..SR5;VZN85,9#..(DLX,STD)..CND¥8,700198808-198906

MARK A

sub44330-35131¥8,600

main44330-35130iVZN90..DLX..USA;VZN120,85,95..USA¥8,700198904-198906

MARK A,COLD SPEC

sub44330-35131¥8,600

main44330-35131iVZN90..SR5¥8,600198908-199501

MARK A

sub44330-32670¥8,600

main44330-35140iVZN90..DLX..USA;VZN120,85,95..USA¥8,700198904-198906

MARK B,COLD SPEC

sub44330-35141¥8,600

main44330-35140iVZN90..SR5;VZN85,9#..(DLX,STD)..CND¥8,700198808-198906

MARK B

sub44330-35141¥8,600

main44330-35141iVZN90..SR5¥8,600198908-199501

MARK B

sub44330-32680¥8,600

main44330-35150iVZN120¥8,700198904-198906

MARK C,COLD SPEC

sub44330-35151¥8,600

main44330-35150iVZN90..SR5;VZN85,9#..(DLX,STD)..CND¥8,700198808-198906

MARK C

sub44330-35151¥8,600

main44330-35151iVZN85,9#¥8,600198908-199501

MARK C

sub44330-32690¥8,600

main44330-35160iVZN90..DLX..USA;VZN120,85,95..USA¥8,700198904-198906

MARK D,COLD SPEC

sub44330-35161¥8,600

main44330-35160iVZN90..SR5;VZN85,9#..(DLX,STD)..CND¥8,700198808-198906

MARK D

sub44330-35161¥8,600

main44330-35161iVZN85,9#¥8,600198908-199501

MARK D

sub44330-32700¥8,600

main44330-35170iVZN90..DLX..USA;VZN120,85,95..USA¥8,700198904-198906

MARK E,COLD SPEC

sub44330-35171¥8,600

main44330-35170iVZN90..SR5;VZN85,9#..(DLX,STD)..CND¥8,700198808-198906

MARK E

sub44330-35171¥8,600

main44330-35171iVZN90..SR5¥8,600198908-199501

MARK E

sub44330-32710¥8,600

main44330-35180iVZN90..SR5;VZN85,9#..(DLX,STD)..CND¥8,700198808-198906

MARK F

sub44330-35181¥8,600

main44330-35180iVZN120¥8,700198904-198906

MARK F,COLD SPEC

sub44330-35181¥8,600

main44330-35181iVZN90..SR5¥8,600198908-199501

MARK F

sub44330-32720¥8,600

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iRN12#,8#,90,VZN120,85,9#¥160198808-199511

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iRN12#,8#,90¥260198808-199501

44337UNION, POWER STEERING SUCTION PORT

main90404-16016iRN12#,8#,90¥1,530198808-199501

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19013iRN12#,8#,90¥240198808-199501

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iVZN120,85,9#¥300198808-199511

ID=19.5,OD=22.5

sub90301-19013¥260

main90301-22001iRN12#,8#,90¥590198808-199501

OD=25.5,ID=22.5

main96711-19014iRN12#,8#,90¥210198808-199501

OD=17.0,ID=13.0

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iRN12#,8#,90¥6,800198808-199501

main44342-20010iVZN120¥4,160199108-199511

main44342-32010iVZN120,85,9#¥4,150198808-199501

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iVZN120,85,9#¥300198808-199501

main90301-53002iRN12#,8#,90¥300198808-199501

main90301-53004iVZN120¥270199108-199511

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iRN12#,8#,90¥350198808-199501

44343SEAT, FLOW CONTROL SPRING

main44343-12040iRN12#,8#,90¥670198808-199501

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iRN12#,8#,90¥210198808-199501

44345BPLATE, VANE PUMP

main44345-12010iRN12#,8#,90,VZN120,85,9#¥660198808-199505

L=14.997

main44345-12020iRN12#,8#,90,VZN120,85,9#¥660198808-199511

L=14.995

main44345-12030iRN12#,8#,90,VZN120,85,9#¥660198808-199511

L=14.993

main44345-12040iRN12#,8#,90,VZN120,85,9#¥660198808-199511

L=14.991

main44345-12050iRN12#,8#,90,VZN120,85,9#¥660198808-199511

L=14.989

main44345-35010iVZN120¥620199505-199511

ROTOR MARK 5

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-35100iVZN120,85,9#¥10,600198808-198908

main44306-35100iVZN85,9#..(DLX,STD)..USA¥10,600198908-199002

COLD SPEC

main44306-35150iVZN120,85,9#¥10,300198908-199108

main44306-35190iVZN120,85,9#¥10,300199108-199511

sub44306-35210¥10,600

main44360-35060iRN12#,85,90..SR5¥10,300198808-199108

sub44360-35061¥10,500

main44360-35061iRN8#,90¥10,500199108-199501

main44360-35100iRN12#,8#,90¥10,300198908-199108

W(*66)

sub44360-35101¥10,300

main44360-35101iRN8#,90¥10,300199108-199501

W(*66)

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90540-09020iRN12#,8#,90¥260198808-199501

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90560-06014iRN12#,8#,90¥350198808-199501

44392LABEL, OIL RESERVOIR CAUTION

main44392-35010iRN12#,8#,90¥230198808-199501

9011906256

main90119-06256¥100

9011910072

main90119-10072¥160

9017012011

main90170-12011¥200

9020112022

main90201-12022¥110

9161160814

main91611-60814¥100

9451101200

main94511-01200¥200

41 parts on this diagram · 2 diagrams in section
