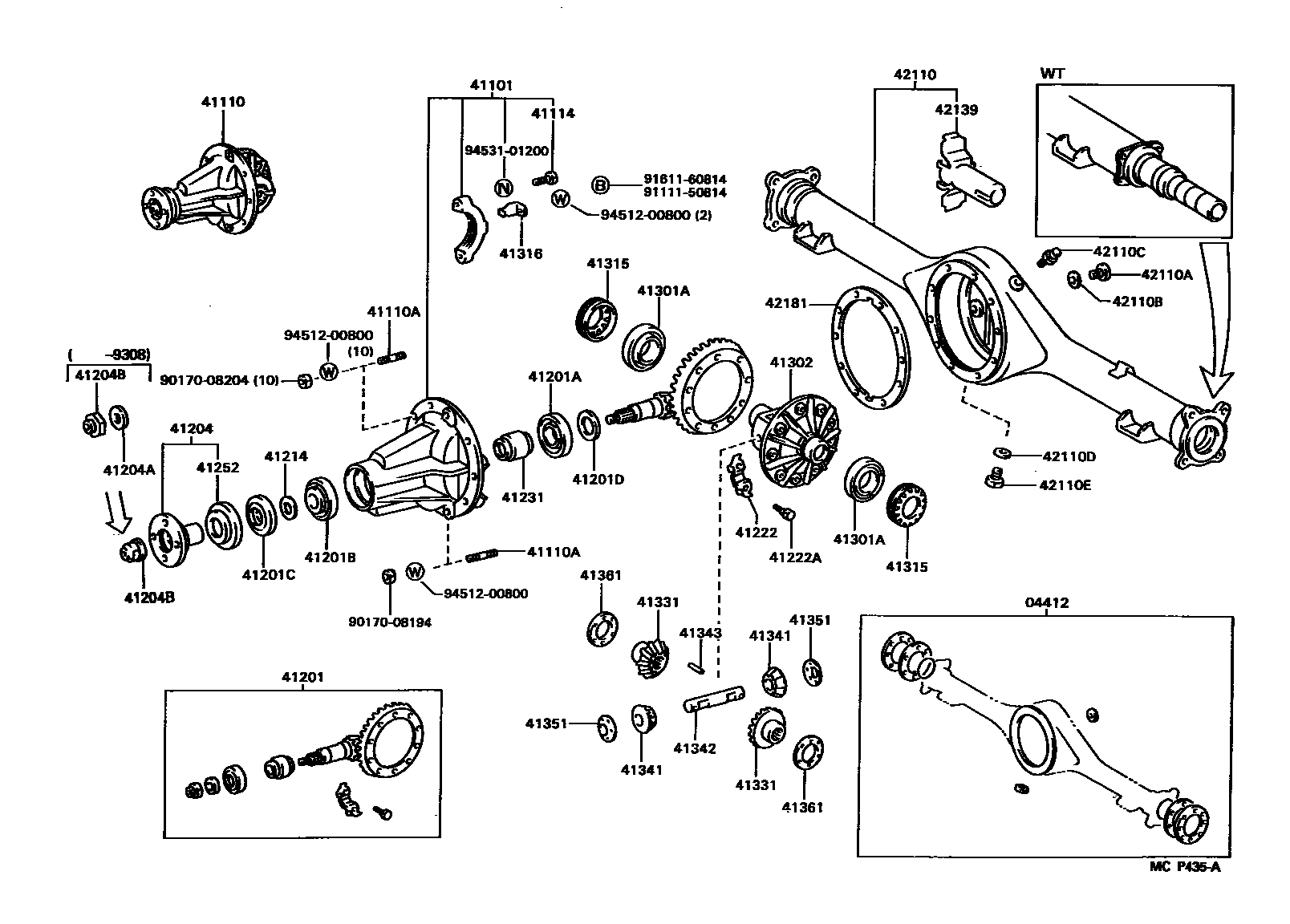

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-25060iRN12#,VZN120198904-199108

main04412-35070iVZN85..10T;VZN85..ST..IV6198808-198908

sub04412-35071

main04412-35071iVZN85..10T;VZN85..ST..IV6198908-199108

main04412-35080iRN8#,90..4HC,5F198808-198908

sub04412-35081

main04412-35081iRN8#,90..4HC,5F198908-199108

main04412-35110iVZN85,95..IV6199108-199308

main04412-35120iVZN120199108-199511

main04412-35130iRN8#,90199108-199501

main04412-35140iVZN85,90..CBU199108-199501

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30031iRN8#,90..4HC,5F198808-199501

main41101-35030iVZN85..10T;RN12#,VZN120198808-198905

sub41101-35031

sub90116-08329

main41101-35031iVZN85..10T;RN12#,VZN120198905-199208

main41101-35031iVZN120199308-199511

W(4 WHEEL *66)

main41101-35070iVZN85,95..IV6198808-198905

sub41101-35071

sub90116-08329

sub90116-08334

main41101-35071iVZN85,95..IV6198905-199308

sub41101-35170

main41101-35080iVZN90..DLX199008-199501

W(2 WHEEL *66)

main41101-35080iVZN90..SR5198908-199501

main41101-35090iRN12#198908-199208

W(2 WHEEL *66)

main41101-35090iVZN120198908-199511

main41101-35100iVZN85,95..IV6199008-199308

W(2 WHEEL *66)

main41101-35110iRN8#,90198908-199501

W(2 WHEEL *66)

sub41101-43010

main41101-40020iRN80..STD..USA;VZN85,90..HLF..(CBU,IV3)198808-198905

sub41101-40021

sub90116-08329

sub90116-08332

main41101-40021iRN80..STD..USA;VZN85,90..HLF..(CBU,IV3)198905-199501

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26161iVZN95199008-199308

*FGR=43:10=4.300

sub41110-3D020

main41110-35201iRN121..W198904-198905

*FGR=41:10=4.100

sub41110-35202

sub90116-08329

main41110-35202iRN121..W198905-199108

*FGR=41:10=4.100

sub41110-26430

main41110-35221iRN12#..4FC198904-198905

*FGR=41:9=4.555

sub41110-35222

sub90116-08329

main41110-35222iRN12#..4FC198905-199108

*FGR=41:9=4.555

sub41110-3D260

main41110-35260iRN8#,90..5F..CBR198808-199008

*FGR=41:12=3.415

main41110-35270iRN8#,90..5F..EFI198808-199501

*FGR=43:12=3.583

main41110-35280iRN8#,90..4HC198808-199501

*FGR=41:11=3.727

main41110-35341iRN80..STD..USA198808-198905

*FGR=43:14=3.071

sub41110-35342

sub90116-08329

sub90116-08332

main41110-35342iRN80..STD..USA198905-199008

*FGR=43:14=3.071

main41110-35390iVZN85,95..IV6198808-198905

*FGR=41:10=4.100

sub41110-35391

sub90116-08329

sub90116-08334

main41110-35391iVZN85,95..IV6198905-199308

*FGR=41:10=4.100

sub41110-26150

main41110-35400iVZN85,90..HLF..(CBU,IV3)198808-198905

*FGR=41:12=3.417

sub41110-35401

sub90116-08329

sub90116-08332

main41110-35401iVZN85,90..HLF..DLX198905-199501

*FGR=41:12=3.416

main41110-35410iVZN120;VZN85..10T198808-198905

*FGR=39:10=3.900

sub41110-35411

sub90116-08329

main41110-35411iVZN85..10T198905-199208

*FGR=39:10=3.900

sub41110-35A80

main41110-35411iVZN120199308-199511

*FGR=39:10=3.900,W(4 WHEEL *66)

sub41110-35A80

main41110-35540iVZN90..SR5198908-199501

*FGR=41:12=3.417

main41110-35540iVZN90..DLX199008-199501

*FGR=41:12=3.417,W(2 WHEEL *66)

main41110-35550iVZN85..CBU199008-199208

*FGR=39:10=3.900,W(2 WHEEL *66)

sub41110-26720

main41110-35550iVZN120198908-199511

*FGR=39:10=3.900

sub41110-26720

main41110-35560iRN121..W198908-199108

*FGR=41:10=4.100,W(2 WHEEL *66)

main41110-35570iRN12#..4FC198908-199108

*FGR=41:9=4.555,W(2 WHEEL *66)

main41110-35580iVZN85..IV6199008-199308

*FGR=41:10=4.100,W(2 WHEEL *66)

main41110-35620iRN85,90..W..SR5198908-199501

*FGR=43:12=3.583,W(2 WHEEL *66)

main41110-35630iRN8#,90..4HC198908-199501

*FGR=41:11=3.727,W(2 WHEEL *66)

sub41110-43040

main41110-35660iVZN95199008-199308

*FGR=43:10=4.300,W(2 WHEEL *66)

sub41110-35661

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08180iVZN85,95..WT198808-198908

L=44

main90116-08233iRN80..4F;VZN85..ST;RN12#,VZN120,90198808-199511

S=14 & 14,L=42

main90116-08235iRN8#,90..4HC,5F198808-198905

S=12 & 15,L=34

sub90116-08418

main90116-08285iVZN85,95..WT198808-198905

L=38

main90116-08329iRN80..4F;VZN85,90..HLF..(CBU,IV3)198905-199511

S=17 & 12,L=37

main90116-08332iRN80..4F;VZN85,90..HLF..(CBU,IV3)198905-199501

S=16 & 14,L=96

main90116-08334iVZN85,95..WT198908-199308

S=12 & 14,L=44

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iRN8#,90..4HC,5F198808-199102

main90105-12053iRN80..4F;RN12#,VZN120,85,9#198808-199511

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29516iVZN120;VZN85..10T198808-199511

*FGR=39:10=3.900

sub41201-29517

sub41204-35081

sub41214-26011

main41201-29536iRN12#..4FC198904-199108

*FGR=41:9=4.556

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29546iVZN85,90..HLF..(CBU,IV3)198808-199501

*FGR=41:12=3.417

sub41201-29547

sub41204-35081

sub41214-26011

main41201-29855iVZN95199008-199305

*FGR=43:10=4.300

sub41201-29856

main41201-29856iVZN95199305-199308

*FGR=43:10=4.300

sub41201-80104

main41201-39656iRN80..STD..USA198808-199008

*FGR=43:14

main41201-39676iRN121..W198904-199108

*FGR=41:10=4.100

sub41201-39677

sub41204-35081

sub41214-26011

main41201-39755iVZN85..IV6198808-199308

*FGR=41:10=4.100

sub41201-39756

sub41204-35081

sub41214-26011

main41201-80012iRN8#,90..5F..CBR198808-199008

*FGR=41:12=3.416

main41201-80013iRN8#,90..5F..EFI198808-199501

*FGR=43:12=3.583

sub41201-80115

main41201-80014iRN8#,90..4HC198808-199501

*FGR=41:11=3.727

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iRN8#,90..4HC,5F198808-199501

main90366-35028iVZN85,95..IV6198808-199308

sub90366-35087

main90366-35044iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

main90366-35073iRN8#,90199108-199311

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iRN12#,8#,90,VZN120,85,90..CBU,IV3198808-199511

sub90366-30078

main90366-30025iVZN85,95..IV6198808-199308

sub90366-30067

main90366-30055iRN8#,90199108-199311

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38035iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

sub90311-38047

main90311-38133iVZN85..IV6;RN8#,90,VZN95..4HC,5F198808-199501

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iRN8#,90..4HC,5F198808-199501

T=2.36,MARK 05

main90201-35397iRN8#,90..4HC,5F198808-199501

T=2.39,MARK 06

main90201-35398iRN8#,90..4HC,5F198808-199501

T=2.42,MARK 07

main90201-35399iRN8#,90..4HC,5F198808-199501

T=2.43,MARK 08

main90201-35400iRN8#,90..4HC,5F198808-199501

T=2.48,MARK 09

main90201-35401iRN8#,90..4HC,5F198808-199501

T=2.51,MARK 10

main90201-35402iRN8#,90..4HC,5F198808-199501

T=2.54,MARK 11

main90201-35403iRN8#,90..4HC,5F198808-199501

T=2.57,MARK 12

main90201-35404iRN8#,90..4HC,5F198808-199501

T=2.60,MARK 13

main90201-35434iRN8#,90..4HC,5F198808-199309

T=2.24,MARK 01

sub90201-35515

main90201-35435iRN8#,90..4HC,5F198808-199309

T=2.27,MARK 02

sub90201-35516

main90201-35436iRN8#,90..4HC,5F198808-199309

T=2.30,MARK 03

sub90201-35517

main90201-35437iRN8#,90..4HC,5F198808-199309

T=2.33,MARK 04

sub90201-35518

main90201-35438iRN8#,90..4HC,5F198808-199501

T=2.63,MARK 14

main90201-35439iRN8#,90..4HC,5F198808-199501

T=2.66,MARK 15

main90201-35440iRN8#,90..4HC,5F198808-199501

T=2.69,MARK 16

main90201-35441iRN8#,90..4HC,5F198808-199501

T=2.72,MARK 17

main90201-35497iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.70

main90201-35498iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.73

main90201-35499iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.76

main90201-35500iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.79

main90201-35501iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.82

main90201-35502iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.85

main90201-35503iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.88

main90201-35504iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.91

main90201-35505iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.94

main90201-35506iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=1.97

main90201-35507iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.00

main90201-35508iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.03

main90201-35509iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.06

main90201-35510iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.09

main90201-35511iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.12

main90201-35512iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.15

main90201-35513iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.18

main90201-35514iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.21

main90201-35515iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.24,MARK 01

main90201-35516iRN8#,90,VZN120,90198808-199511

OD=47,T=2.27,MARK 02

main90201-35517iRN8#,90,VZN120,90198808-199511

OD=47,T=2.30,MARK 03

main90201-35518iRN80..4F;RN12#,VZN120,85,9#198808-199511

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iRN80..4F;RN12#,VZN120,85,9#198808-199511

main41204-35050iRN8#,90..4HC,5F198808-199501

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iRN8#,90..4HC,5F198808-199304

main90201-20005iRN80..4F;RN12#,VZN120,85,9#198808-199511

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iRN8#,90..4HC,5F198808-199304

main90179-18020iRN8#,90199304-199501

OD=33.5

main90179-20001iRN80..4F;RN12#,VZN120,85,9#198808-199308

main90179-20018iVZN120,90199308-199511

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iRN80..4F;RN12#,VZN120,85,9#198808-199511

main41214-30021iRN8#,90..4HC,5F198808-199501

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iRN80..4F;RN12#,VZN120,85,9#198808-199511

main41222-35030iRN8#,90..4HC,5F198808-199501

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iRN12#,8#,90,VZN120,85,9#198808-199511

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iRN8#,90..4HC,5F198808-199501

main41231-24010iVZN85,95..IV6198808-199308

main41231-40011iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iRN8#,90..4HC,5F198808-199501

main41252-35010iRN80..4F;RN12#,VZN120,85,9#198808-199303

sub41252-35020

main41252-35020iVZN120,85,9#199303-199511

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iVZN85,95..IV6198808-199308

main90368-45066iRN12#,8#,90,VZN120,85,90..CBU,IV3198808-199511

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iVZN85,95..IV6198808-199308

sub41302-26010

main41311-30050iRN8#,90..4HC,5F198808-199501

sub41311-28010

main41311-40020iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

sub41311-40021

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iRN12#,8#,90,VZN120,85,90..CBU,IV3198808-199511

main41315-35020iVZN85,95..IV6198808-199308

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iRN8#,90..4HC,5F198808-199308

SINGLE TYPE

main41316-30010iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199305

main41316-30010iVZN120199308-199511

W(4 WHEEL *66)

main41316-35010iRN8#,90199308-199511

SINGLE TYPE

main41316-35010iVZN85,95..IV6198808-199511

main41317-30010iRN8#,90..4HC,5F198808-199501

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-30030iRN8#,90..4HC,5F198808-199501

main41331-35011iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

main41331-35040iVZN85,95..IV6198808-199308

sub41039-34060

sub41039-34080

41341PINION, REAR DIFFERENTIAL

main41341-30020iRN8#,90..4HC,5F198808-199501

sub41341-30050

main41341-35010iVZN85,95..IV6198808-199308

sub41341-14041

main41341-35020iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iRN8#,90..4HC,5F198808-199501

sub41342-22021

main41342-39610iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iRN8#,90..4HC,5F198808-199501

main90250-06085iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

main41351-30060iVZN85,95..IV6198808-199501

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iVZN85,95..IV6198808-199308

T=0.90

sub41361-60E10

main41361-24020iVZN85,95..IV6198808-199308

T=1.00

sub41361-60E50

main41361-24030iVZN85,95..IV6198808-199308

T=1.10

sub41361-60E90

main41361-24040iVZN85,95..IV6198808-199308

T=1.20

sub41361-60F30

main41361-24050iVZN85,95..IV6198808-199308

T=1.30

sub41361-60F70

main41361-30040iRN8#,90..4HC,5F198808-199501

T=1.0

main41361-30050iRN8#,90..4HC,5F198808-199501

T=1.1

main41361-30060iRN8#,90..4HC,5F198808-199501

T=1.2

main41361-30070iRN8#,90..4HC,5F198808-199501

T=1.3

main41361-40021iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

T=1.6

main41362-40021iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

T=1.7

main41363-40021iRN80..4F;RN12#,VZN120,85,90..CBU,IV3198808-199511

T=1.8

42110HOUSING ASSY, REAR AXLE

main42110-35350iVZN85,95..WT198808-199308

main42110-35370iRN8#,90..4HC,5F198808-198908

main42110-35380iRN80..STD..USA;VZN85,90..HLF..(CBU,IV3)198808-198908

main42110-35400iVZN85..10T;VZN85..ST..IV6198808-199208

main42110-35450iRN12#,VZN120198904-199511

main42110-35470iRN8#,90..4HC,5F198908-199501

main42110-35480iRN80..4F;VZN85,90..HLF..CBU198908-199501

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iRN8#,90,VZN120,90198808-199511

main90341-18049iRN12#,VZN120198904-199406

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iRN12#,8#,90,VZN120,85,9#198808-199511

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iRN12#,8#,90,VZN120,85,9#198808-199511

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iRN12#,8#,90,VZN120,85,9#198808-199511

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18040iVZN85,95199210-199308

main90341-18057iRN12#,8#,90,VZN120,85,9#198808-199511

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-30010iRN8#,90..4HC,5F198808-199501

main42139-35020iVZN85..10T;VZN85..ST..IV6198808-199409

sub42139-35050

main42139-35030iVZN90199409-199501

main42139-40010iRN12#,VZN120198904-199511

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30020iRN8#,90..4HC,5F198808-199501

main42181-60020iRN80..4F;RN12#,VZN120,85,9#198808-199511

9017008194

main90170-08194

9017008204

main90170-08204

9111150814

main91111-50814

9161160814

main91611-60814

9451200800

main94512-00800

9453101200

main94531-01200

42 parts on this diagram · 2 diagrams in section
