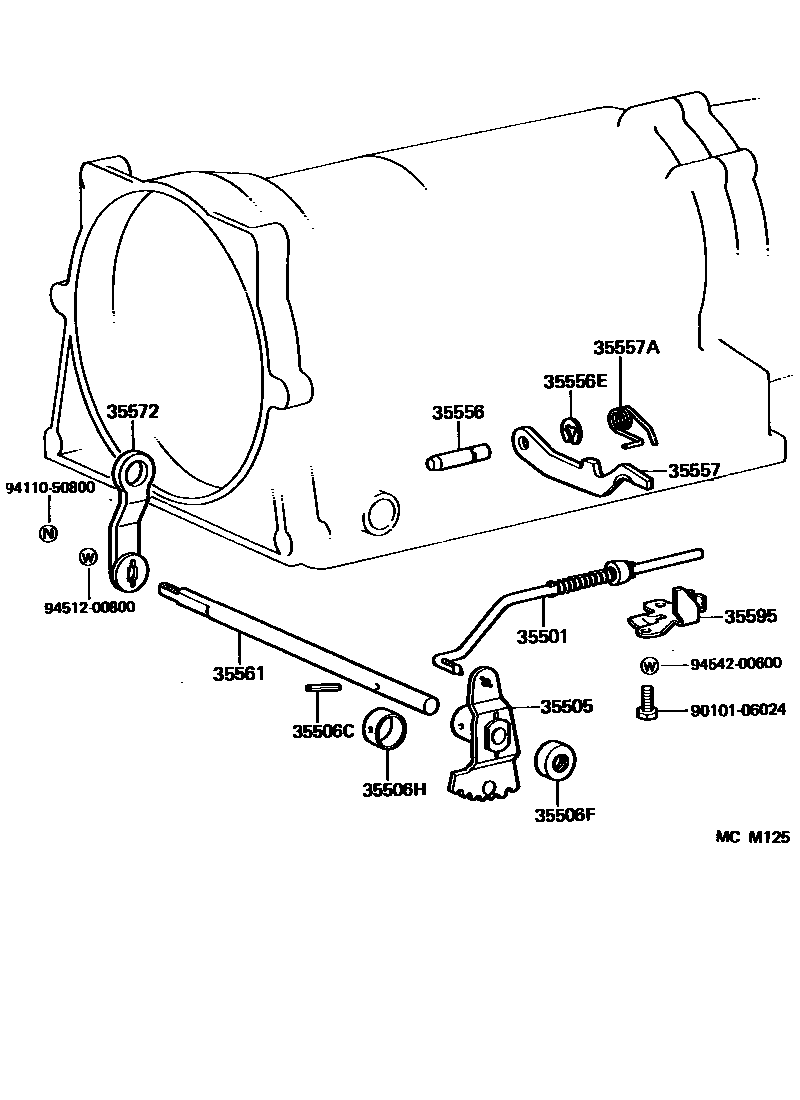

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1 0004 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-22020iRN12#,8#,90..ATM198808-199501

main35501-30010iVZN120,85,9#..ATM198808-199511

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22040iRN12#,8#,90..ATM198808-199108

main35505-28010iRN8#,90..4HC199010-199501

main35505-30020iVZN120,85,9#..ATM198808-199511

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001iRN12#,8#,90..ATM198808-199012

sub90311-11003

main90311-11003iRN12#,8#,90..ATM199012-199501

main90311-12002iVZN120,85,9#..ATM198808-199511

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iRN12#,8#,90..ATM198808-199501

sub90560-20025

main90560-20006iVZN120,85,9#..ATM198808-199511

35556SHAFT, PARKING LOCK PAWL

main35556-26010iRN12#,8#,90..ATM198808-199501

main35556-30020iVZN120,85,9#..ATM198808-199511

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

35557PAWL, PARKING LOCK

main35557-26010iRN12#,8#,90..ATM198808-199501

sub35557-26020

main35557-30020iVZN120,85,9#..ATM198808-199511

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iVZN120,85,9#..ATM198808-199511

main90508-25001iRN12#,8#,90..ATM198808-199501

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iRN8#,90..4HC198808-199501

main35561-30070iVZN120,90..4FC198808-199511

main35561-35010iVZN85,9#..4HC198808-199501

main35561-40010iRN12#..4FC198904-199108

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-35010iRN8#,90..4HC198808-199501

main35572-35020iRN12#,VZN120,90..4FC198808-199511

main35573-35010iVZN85,9#..4HC198808-199501

35595BRACKET, PARKING LOCK PAWL

main35595-30010iVZN120,85,9#..ATM198808-199511

main35595-40010iRN12#,8#,90..ATM198808-199501

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 4 diagrams in section
