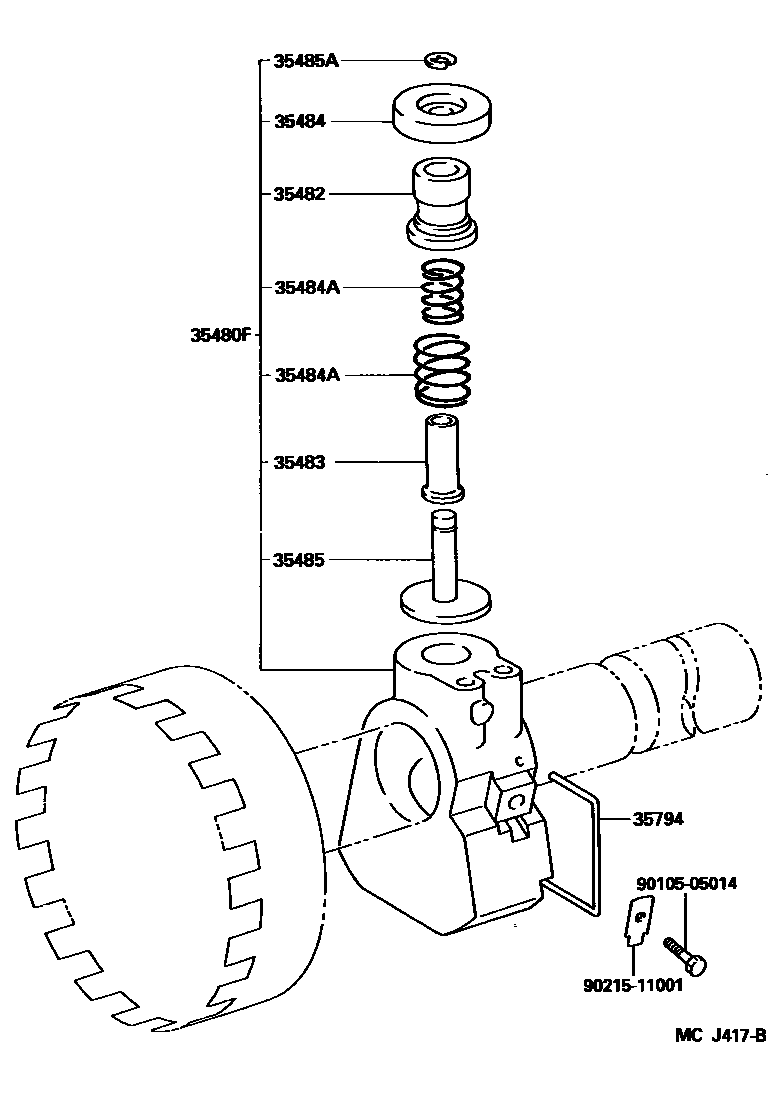

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-28020iRN12#..4FC198904-199108

main35480-30060iRN8#,90..4HC198808-199501

35482VALVE, GOVERNOR

main35482-22010iRN8#,90..4HC198808-199501

main35482-28020iRN12#..4FC198904-199108

35483WEIGHT, GOVERNOR, INNER

main35483-14010iRN12#..4FC198904-199108

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iRN12#,8#,90..ATM198808-199501

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09049iRN12#..4FC198904-199108

INNER

main90501-09065iRN12#..4FC198904-199108

OUTER

main90501-09673iRN8#,90..4HC198808-199501

35485SHAFT, GOVERNOR VALVE

main35485-14010iRN12#..4FC198904-199108

main35485-22010iRN8#,90..4HC198808-199501

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iRN12#,8#,90..ATM198808-199501

35794RING, GOVERNOR RETAINING

main35794-22010iRN12#,8#,90..ATM198808-199501

9010505014

main90105-05014

9021511001

main90215-11001

10 parts on this diagram · 1 diagram in section
