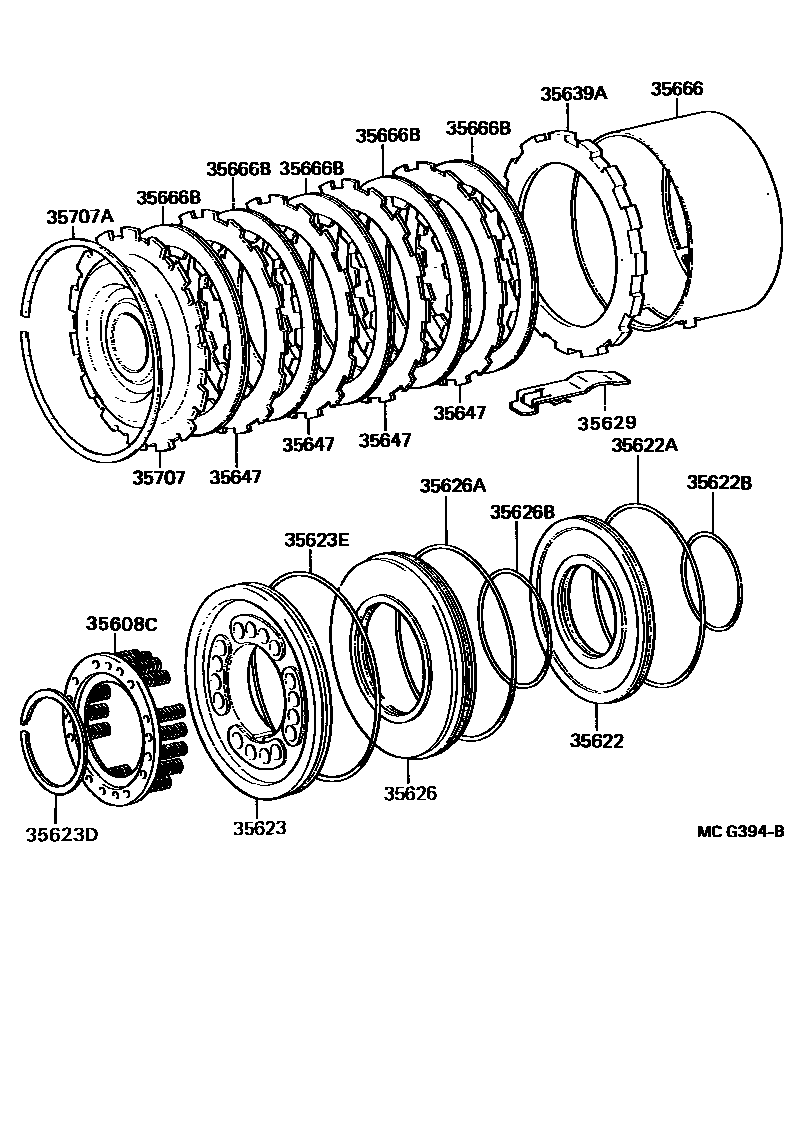

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1 0002 1

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iRN12#,8#,90..ATM¥1,060198808-199501

35622PISTON, BRAKE, NO.2

main35622-22010iRN12#,8#,90..ATM¥1,850198808-199501

main35622-30010iVZN120,85,9#..ATM¥2,500198808-199511

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iRN12#,8#,90,VZN120,85,9#..ATM¥800198808-199511

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iRN12#,8#,90,VZN120,85,9#..ATM¥630198808-199511

35623PISTON, BRAKE, NO.3

main35623-22010iRN12#,8#,90..ATM¥2,330198808-199501

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iRN12#,8#,90..ATM¥240198808-199501

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99192iRN8#,90..4HC¥800198808-199501

35626SLEEVE, BRAKE REACTION

main35626-22010iRN12#,8#,90..ATM¥2,100198808-199501

main35626-30020iVZN120,85,9#..ATM¥3,150198808-199511

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iRN12#,8#,90..ATM¥800198808-199501

sub90301-99109¥190

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iRN12#,8#,90,VZN120,85,9#..ATM¥630198808-199511

sub90301-67005¥190

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iRN12#,8#,90..ATM¥270198906-199501

main35629-22020iVZN120,85,9#..ATM¥320198808-199511

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iRN12#,8#,90..ATM¥3,250198808-199501

35647PLATE, CLUTCH, NO.2

main35647-22010iRN12#,8#,90..ATM¥1,670198808-199501

35666TUBE, BRAKE APPLY

main35666-30010iRN12#,8#,90..ATM¥2,460198808-199501

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050iRN12#,8#,90..ATM¥2,640198808-199109

sub35633-30060¥2,630

main35633-30060iRN8#,90..4HC¥2,630199109-199501

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30030iRN8#,90..4HC¥13,600198808-199501

main35707-30040iRN12#..4FC¥14,400198904-199108

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iRN12#,8#,90..ATM¥520198808-199501

17 parts on this diagram · 2 diagrams in section
