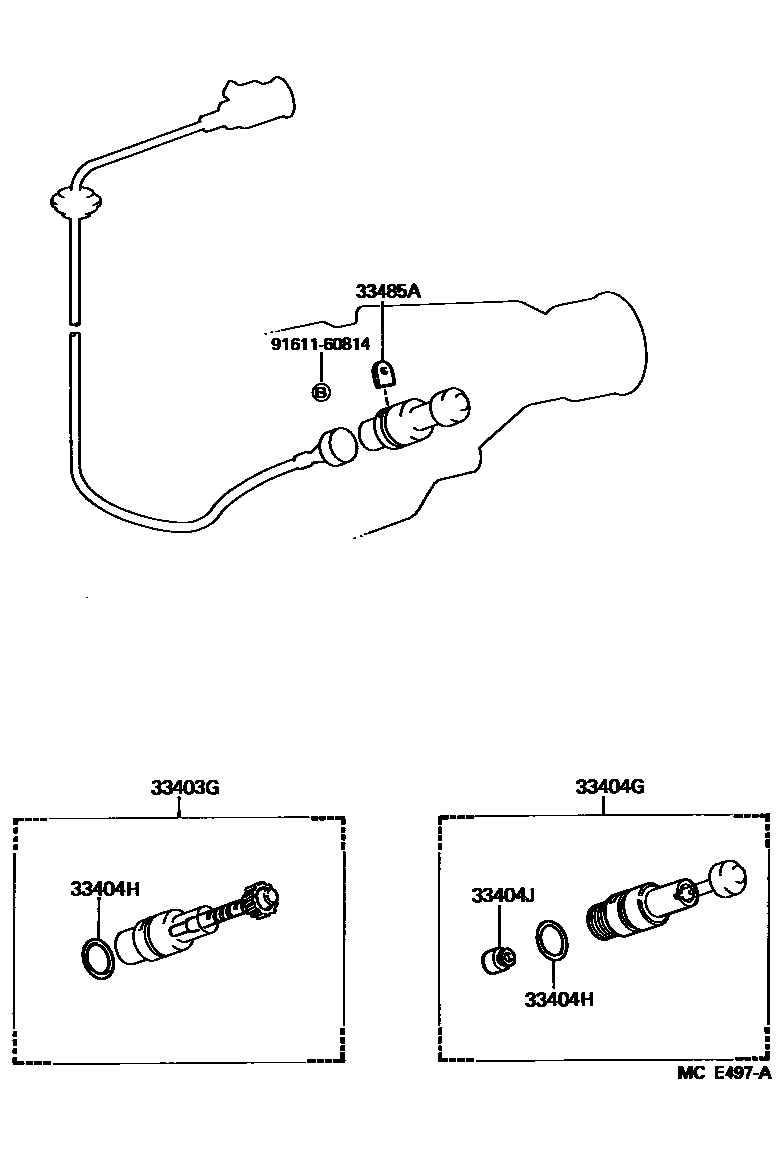

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0003 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29235iRN12#..4FC198808-199108

N=20,MARK 20:6

main33403-39185iVZN95..4HC199008-199108

N=17,MARK 17:5

main33403-69135iVZN85..4HC..IV6198808-199108

N=19,MARK 19:6

main33403-69175iVZN85,90..HLF..ATM..(CBU,IV3)198808-199108

N=16,MARK 16:6

main33403-69185iVZN120198808-199511

N=17,MARK 17:6

main33403-69195iRN8#..4HC;RN90..EFI..CND198808-199108

N=18,MARK 18:6

main33482-29205iVZN85..4HC..IV6199108-199308

N=19,MARK 19:6

main33482-39375iVZN95..4HC199108-199308

N=17,MARK L

sub33482-39901

main33482-39405iVZN90..ATM199108-199501

N=16,MARK 16:6

sub33482-39900

main33482-59015iRN90,VZN120..ATM199108-199501

N=17,MARK 17:6

main33482-59025iRN8#,VZN85..4HC..CBU199108-199501

N=18,MARK 18:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

9161160814

main91611-60814

6 parts on this diagram · 2 diagrams in section
