EXTENSION HOUSING (ATM)

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iRN12#,8#,90..ATM198808-199501

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iRN12#,8#,90..ATM198808-199501

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-30010iVZN120,85,90..ATM..CBU198808-199411

sub33146-30020

main33146-30020iRN8#,90,VZN85,95..HLF..4HC199108-199511

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-20060iRN12#,8#,90..ATM198808-199108

main35108-24021iVZN120,85,9#..ATM198808-199511

main35108-35020iRN8#,90..4HC199108-199501

sub35108-35040

main35108-35030iVZN90..ATM199108-199501

sub35108-35050

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38032iRN8#,90..4HC199108-199501

main90311-40001iVZN120,85,9#..ATM198808-199511

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iRN12#,8#,90..ATM198808-199501

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iRN12#,8#,90,VZN120,85,9#..ATM198808-199012

sub35182-28010

main35182-28010iVZN120,85,9#..ATM199008-199511

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

9011910232

main90119-10232

9011910233

main90119-10233

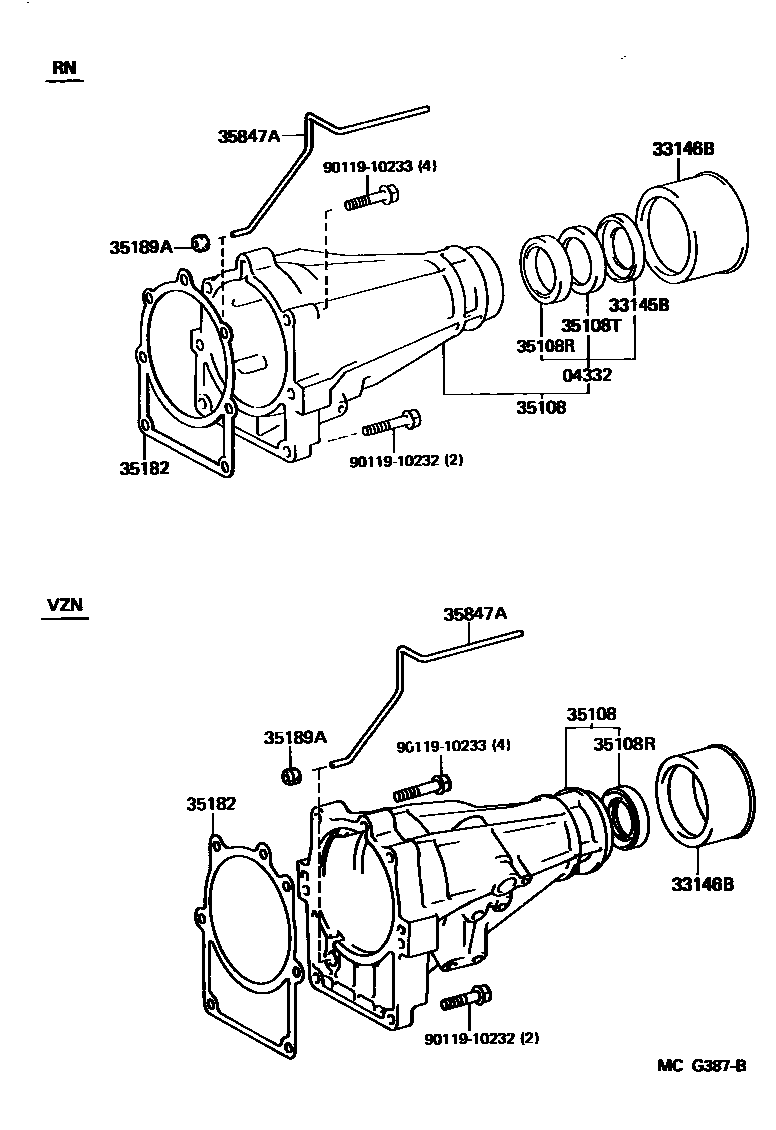

11 parts on this diagram · 1 diagram in section
