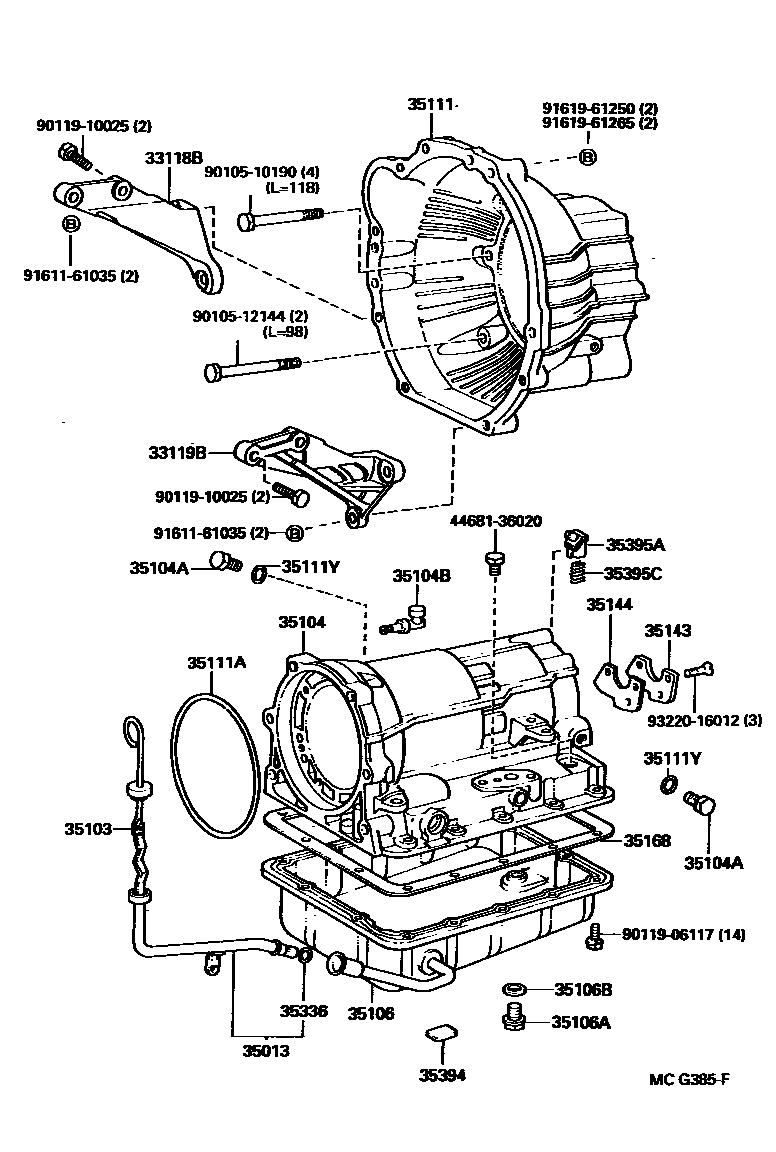

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

33118BPLATE, STIFFENER, RH(ATM)

main33118-22030iRN12#,8#,90..ATM198808-199501

main33118-35040iVZN120,85,9#..ATM198808-199511

33119BPLATE, STIFFENER, LH(ATM)

main33119-22022iRN12#,8#,90..ATM198808-199501

main33119-35030iVZN120,85,9#..ATM198808-199511

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-35140iRN12#..4FC198904-199108

main35013-35160iRN8#,90..4HC198808-198903

sub35013-35161

main35013-35161iRN8#,90..4HC198903-199501

main35013-35180iVZN85,9#..ATM198808-198903

main35013-35181iVZN85,9#..ATM198903-199501

main35013-35190iVZN120198904-199511

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-35090iRN8#,90..4HC198808-199501

main35103-35160iVZN85,9#..ATM198808-198903

main35103-35161iVZN85,9#..ATM198903-199501

main35103-35180iVZN120198904-199511

main35103-35210iRN12#..4FC198904-199108

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iRN12#,8#,90..ATM198808-199501

main35104-30133iVZN120,85,9#..ATM198808-199511

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30050iRN12#..4FC198904-198911

sub35106-30051

main35106-30051iRN12#..4FC198911-199108

main35106-30060iRN8#,90..4HC198808-198911

sub35106-30061

main35106-30061iRN8#,90..4HC198911-199501

main35106-35031iVZN85,9#..ATM198808-198911

sub35106-35032

main35106-35032iVZN85,9#..ATM198911-199501

main35106-35040iVZN120198904-198911

sub35106-35041

main35106-35041iVZN120198911-199511

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35022iRN12#,8#,90..ATM198808-199501

main35111-35051iVZN120,85,9#..ATM198808-199511

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iRN12#,8#,90..ATM198808-199501

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iRN12#,8#,90,VZN120,85,9#..ATM198808-199511

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iRN12#,8#,90..ATM198808-199501

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iRN12#,8#,90..ATM198808-199012

sub35144-28010

main35144-28010iRN12#,8#,90..ATM199012-199501

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iRN12#,8#,90..ATM198808-199501

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iVZN120,85,9#..ATM198808-199511

main90301-09173iRN12#,8#,90..ATM198808-199501

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iVZN120,85,9#..ATM198808-199511

35395ASTRAINER, GOVERNOR OIL

main35395-40010iRN12#,8#,90..ATM198808-199501

35395CSPRING, COMPRESSION (FOR GOVERNOR STRAINGER)

main90501-03005iRN12#,8#,90..ATM198808-199501

4468136020PLUG, BOOSTER

main44681-36020

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011910025

main90119-10025

9161161035

main91611-61035

9161961250

main91619-61250

9161961265

main91619-61265

9322016012

main93220-16012

29 parts on this diagram · 2 diagrams in section
