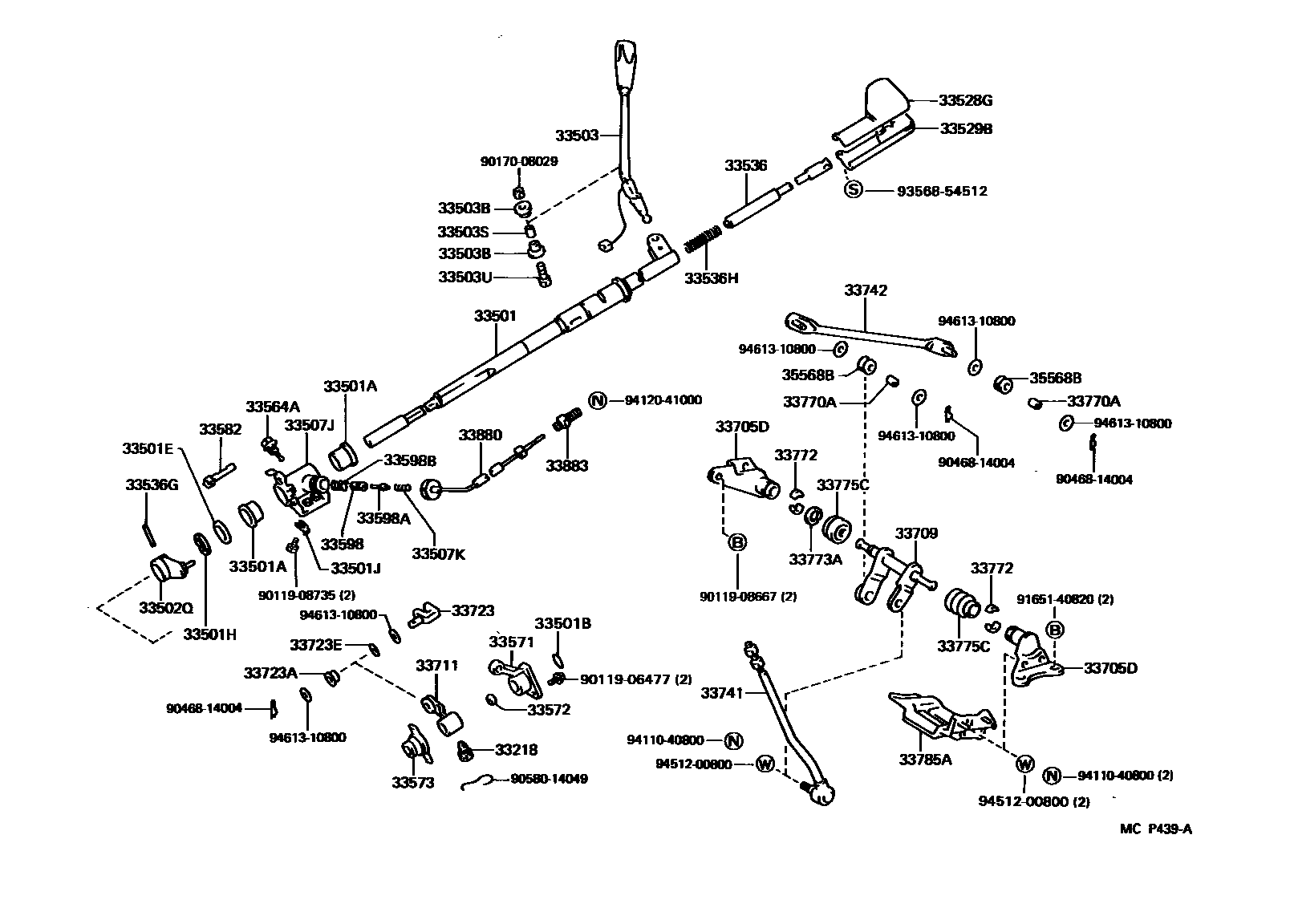

CONTROL SHAFT & CROSSSHAFT

33218BOLT, SHIFT LEVER LOCK

main33218-35010iRN8#,90,VZN85,9#..4HC¥360198808-199501

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-35270iRN8#,90,VZN85,9#..4HC¥8,200198808-199501

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-28002iRN8#,90,VZN85,9#..4HC¥200198808-199501

33501BRING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER)

main96711-19028iRN8#,90,VZN85,9#..4HC¥170198808-199501

33501EWASHER, PLATE (FOR COLUMN SHIFT CONTROL SHAFT)

main90201-28012iRN8#,90,VZN85,9#..4HC¥140198808-199501

T=1.2

main90201-28013iRN8#,90,VZN85,9#..4HC¥140198808-199501

T=1.4

main90201-28014iRN8#,90,VZN85,9#..4HC¥140198808-199501

T=1.6

33501HRING, SNAP (FOR COLUMN SHIFT CONTROL SHAFT)

main96152-00280iRN8#,90,VZN85,9#..4HC¥170198808-199501

33501JSHIM (FOR COLUMN SHIFT CONTROL SHAFT)

main90565-09007iRN8#,90,VZN85,9#..4HC¥130198808-199501

T=0.3

main90565-09008iRN8#,90,VZN85,9#..4HC¥130198808-199501

T=0.4

main90565-09009iRN8#,90,VZN85,9#..4HC¥130198808-199501

T=0.5

33502QPLATE SUB-ASSY, SHIFT LEVER

main33502-35160iRN8#,90,VZN85,9#..4HC¥1,650198808-199501

33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)

main33055-35060iVZN85,9#..4HC¥3,710199108-199501

main33055-35070iRN8#,90..4HC¥3,710199108-199501

main33503-35100iRN8#,90,VZN85,9#..4HC¥10,500198808-198908

main33503-35110iRN8#,90,VZN85,9#..4HC¥10,800198908-199108

main33503-35120iRN8#,90..4HC¥7,900199010-199108

33503BBUSH(FOR SHIFT LEVER SUB-ASSY)

main90386-11014iRN8#,90,VZN85,9#..4HC¥200198808-199501

33503SCOLLAR(FOR SHIFT LEVER)

main90387-08094iRN8#,90,VZN85,9#..4HC¥200198808-199501

33503UBOLT, HEXAGON(FOR COLUMN SHIFT LEVER)

main90101-08128iRN8#,90,VZN85,9#..4HC¥140198808-199501

33507JSUPPORT SUB-ASSY, CONTROL SHAFT (FOR COLUMN SHIFT)

main33507-35020iRN8#,90..4HC¥5,900198808-199211

sub33507-35021¥5,900

main33507-35021iRN8#,90..4HC¥5,900199211-199501

main33507-35030iVZN85,9#..4HC¥5,900198808-199211

sub33507-35031¥5,900

main33507-35031iVZN85,9#..4HC¥5,900199211-199501

33507KSPRING, COMPRESSION (FOR CONTROL SHAFT SUPPORT)

main90501-10137iRN8#,90,VZN85,9#..4HC¥140198808-199501

33528GCOVER, CONTROL SHAFT, UPER

main33528-35010iRN8#,90,VZN85,9#..4HC¥470198808-199501

33529BCOVER, CONTROL SHAFT, LOWER

main33529-35010iRN8#,90,VZN85,9#..4HC¥470198808-199501

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-35030iRN8#,90,VZN85,9#..4HC¥1,740198808-199501

33536GPIN, SLOTTED SPRING (FOR COLUMN CONTROL SELECT LEVER)

main90254-04025iRN8#,90,VZN85,9#..4HC¥130198808-199501

33536HSPRING, COMPRESSION (FOR COLUMN CONTROL SELECT LEVER)

main90501-14118iRN8#,90,VZN85,9#..4HC¥240198808-199501

33564ALINK, SHIFT LOCK RELEASE (FOR COLUMN SHIFT)

main33564-35020iRN8#,90,VZN85,9#..4HC¥500198808-199501

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-35110iRN8#,90,VZN85,9#..4HC¥1,260198808-199501

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-36010iRN8#,90,VZN85,9#..4HC¥480198808-199501

33573COVER, CONTROL SHAFT DUST, LOWER

main33573-35040iRN8#,90,VZN85,9#..4HC¥540198808-199501

33582STOPPER, SHIFT LOCK PLATE (FOR COLUMN SHIFT)

main33582-35010iRN8#,90,VZN85,9#..4HC¥1,070198808-199501

33598HOLDER, SELECT SHATT LOCK PIN (FOR COLUMN SHIFT)

main33598-35010iRN8#,90,VZN85,9#..4HC¥480198808-199501

33598APIN (FOR COLUMN SHIFT SELECT SHAFT LOCK PIN HOLDER)

main90249-06106iRN8#,90,VZN85,9#..4HC¥180198808-199501

33598BSPRING, COMPRESSION (FOR SELECT SHAFT LOCK PIN HOLDER)

main90501-05020iRN8#,90,VZN85,9#..4HC¥140198808-199501

33705DSUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)

main33705-35030iRN8#,90,VZN85,9#..4HC¥2,320198808-199501

LH

main33705-35040iRN8#,90..4HC¥1,620198808-199501

RH

main33705-35050iVZN85,9#..4HC¥2,250198808-199501

RH

33709SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)

main33709-35140iRN8#,90..4HC¥2,910198808-199501

main33709-35150iVZN85,9#..4HC¥2,910198808-199501

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33711-35060iRN8#,90..4HC¥2,320198808-199501

main33711-35070iVZN85,9#..4HC¥2,320198808-199501

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-35020iVZN85,9#..4HC¥1,510198808-199501

main33723-35030iRN8#,90..4HC¥680198808-199501

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90389-08008iRN8#,90,VZN85,9#..4HC¥240198808-199501

33723EWASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)

main90206-08016iRN8#,90,VZN85,9#..4HC¥190198808-199501

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-35150iRN8#,90..4HC¥2,170198808-199501

main33710-35160iVZN85,9#..4HC¥2,370198808-199501

33742ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)

main33742-35120iVZN85,9#..4HC¥950198808-199501

main33742-35140iRN8#,90..4HC¥590198808-199501

33770ABUSH (FOR CROSS SHAFT)

main90389-08005iRN8#,90,VZN85,9#..4HC¥140198808-199501

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010iRN8#,90,VZN85,9#..4HC¥370198808-199501

33773ARING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

main96151-01600iRN8#,90,VZN85,9#..4HC198808-199501

33775CCOVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)

main33775-20050iRN8#,90,VZN85,9#..4HC¥660198808-199501

LH

main33775-30020iRN8#,90,VZN85,9#..4HC¥310198808-199501

RH

33785AINSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIFT)

main33785-35010iRN8#,90..4HC¥1,430198808-199501

main33785-35020iVZN85,9#..4HC¥1,550198808-199501

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-35010iRN8#,90,VZN85,9#..4HC¥1,540198808-199004

sub33880-35011¥1,530

main33880-35011iRN8#,90,VZN85,9#..4HC¥1,530199004-199501

33883HOLDER, CABLE END ROD

main33883-35010iRN8#,90,VZN85,9#..4HC¥920198808-199003

sub33883-35020¥920

main33883-35020iRN8#,90,VZN85,9#..4HC¥920199003-199501

35568BGROMMET (FOR SHIFTING ROD, 2ND)

main90480-17001iRN8#,90,VZN85,9#..4HC¥240198808-199501

CROSS SHAFT SIDE

main90480-17177iRN8#,90,VZN85,9#..4HC¥190198808-199501

TRANSMISSION SIDE

9011906477

main90119-06477¥160

9011908667

main90119-08667¥160

9011908735

main90119-08735¥120

9017008029

main90170-08029¥120

9046814004

main90468-14004¥80

9058014049

main90580-14049¥200

9165140820

main91651-40820¥90

9356854512

main93568-54512¥70

9411040800

main94110-40800¥120

9412041000

main94120-41000¥80

9451200800

main94512-00800¥80

9461310800

main94613-10800¥90

55 parts on this diagram · 1 diagram in section
