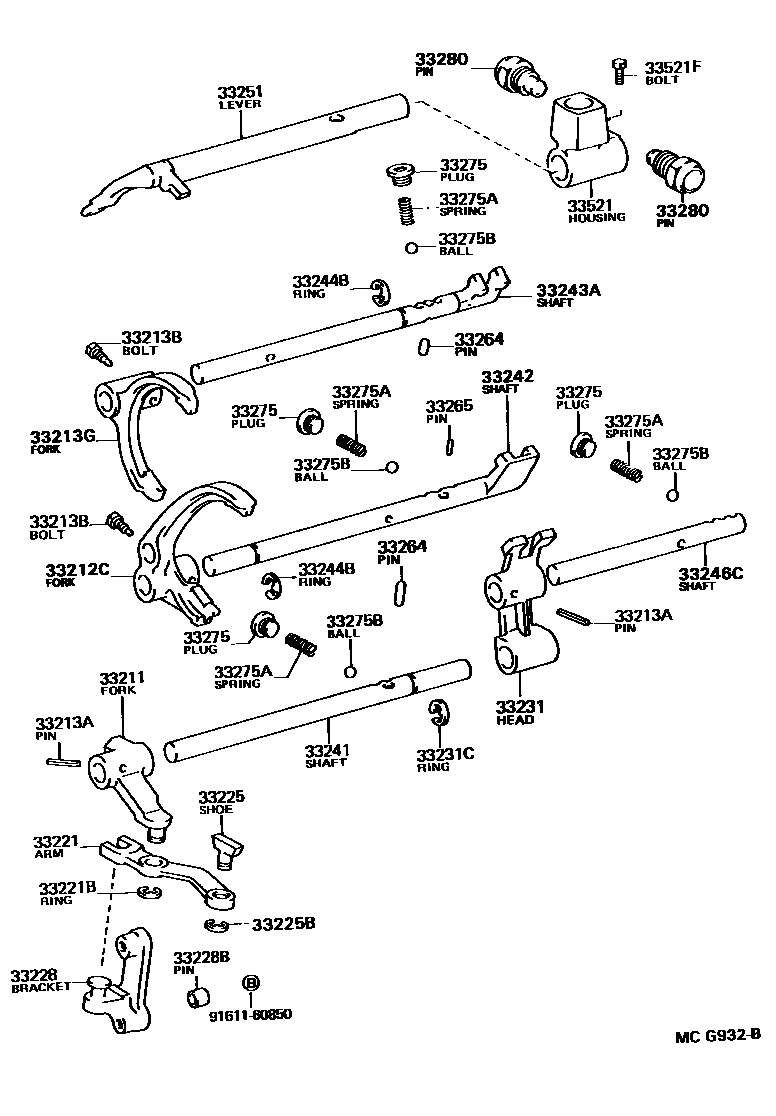

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33212CFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231HEAD, REVERSE SHIFT
33231CRING(FOR REVERSE SHIFT HEAD)
33241SHAFT, REVERSE SHIFT FORK
sub33244-60040
33242SHAFT, GEAR SHIFT FORK, NO.1
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33246CSHAFT, GEAR SHIFT FORK, NO.5
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8,PIN
L=11.5,OD=4.8
OD=9.52,STEEL,BALL
L=21.6,PIN
L=21.6,PIN,PIN
L=13.6,OD=9.5,PIN
L=13.6,OD=9.5
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
L=13.6,OD=6
L=11.1,OD=4.8
L=8.6,OD=6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=34.5
L=20.2
L=20.2,SHIFT HEAD SIDE
L=31
L=31,SHIFTFORK SHAFT SIDE
L=33.8
33275BBALL, SHAFT DETENT
33280PIN ASSY, REVERSE RESTRICT
RH
LH
RH
LH
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
9161160850
main91611-60850
28 parts on this diagram · 7 diagrams in section
