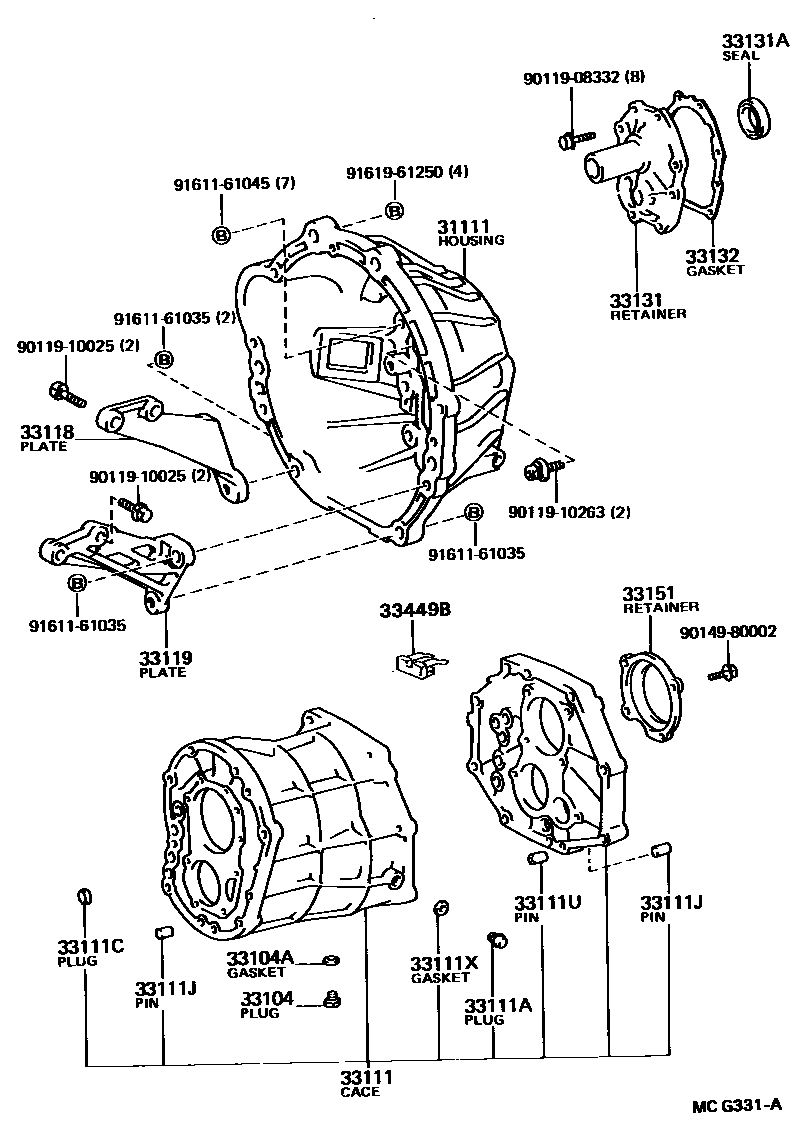

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G40,57 0002 1W46,55 0003 1W55 0004 1R150

31111HOUSING, CLUTCH

main31111-20171iRN121,8#,90..MTM198808-199501

main31111-35050iVZN85,9#..R198808-199501

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iVZN85,9#..R198808-199501

main90341-18057iRN8#,90..W198808-199408

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRN121,8#,90,VZN85,9#..MTM198808-199501

33111CASE, MANUAL TRANSMISSION

main33101-22031iRN8#,90..W198808-198904

sub33101-22032

main33101-22032iRN121,8#,90..W198904-199108

sub33101-30070

sub33242-30080

main33101-30070iRN8#,90..W199108-199501

main33101-35030iVZN85,9#..R198808-199108

sub33101-35031

sub90341-16014

main33101-35031iVZN85,9#..R199108-199405

sub33101-60030

main33101-35050iRN8#,90..G198808-199008

sub33101-35051

main33101-35080iVZN90..R199405-199501

sub33101-60050

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRN8#,90..W198808-199408

main90341-18006iRN8#,90,VZN90..5F198808-199501

main90341-18026iVZN85,9#..R198808-199405

sub90341-18019

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iRN121,8#,90..W198808-199501

OD=14

main90331-17004iRN8#,90..W199108-199110

OD=17,OD=17

main96411-41800iVZN90..R199405-199501

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iRN8#,90..W198808-199501

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iVZN85,9#..R198808-199501

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iRN8#,90,VZN90..5F198808-199501

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRN121,8#,90..MTM198808-199501

main33118-35040iVZN90..R198808-199501

33119PLATE, STIFFENER, LH(MTM)

main33119-22022iRN121,8#,90..MTM198808-199501

main33119-35030iVZN85,9#..R..USA198808-199501

33131RETAINER, BEARING, FRONT(MTM)

main33131-22021iRN121,8#,90..W198808-199110

main33131-26020iRN8#,90..G198808-199008

main33131-30080iRN8#,90..W199110-199501

main33131-35030iVZN85,9#..R198808-199008

sub33131-35031

main33131-35031iVZN85,9#..R199008-199501

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iRN8#,90..G198808-199007

sub90311-30014

main90311-30014iRN8#,90..CBR199007-199501

main90311-30115iRN121,8#,90..W198808-199110

main90311-32012iVZN85,9#..R198808-199501

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iRN8#,90..G198808-199008

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iRN121,8#,90..W198808-199110

main33107-30020iRN8#,90..W199110-199501

main33151-35020iVZN85,9#..R198808-199501

main33151-35030iRN8#,90..G198808-199008

33449BMAGNET, TRANSMISSION

main33449-26010iRN8#,90..CBR198908-199008

main33449-30010iRN8#,90..W199110-199501

RR

main33449-30020iRN8#,90..W199110-199501

FR

main33449-35010iVZN85,9#..R198808-199405

main33449-35030iVZN90..R199405-199501

9011908332

main90119-08332

9011910025

main90119-10025

9011910263

main90119-10263

9014980002

main90149-80002

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

23 parts on this diagram · 4 diagrams in section
