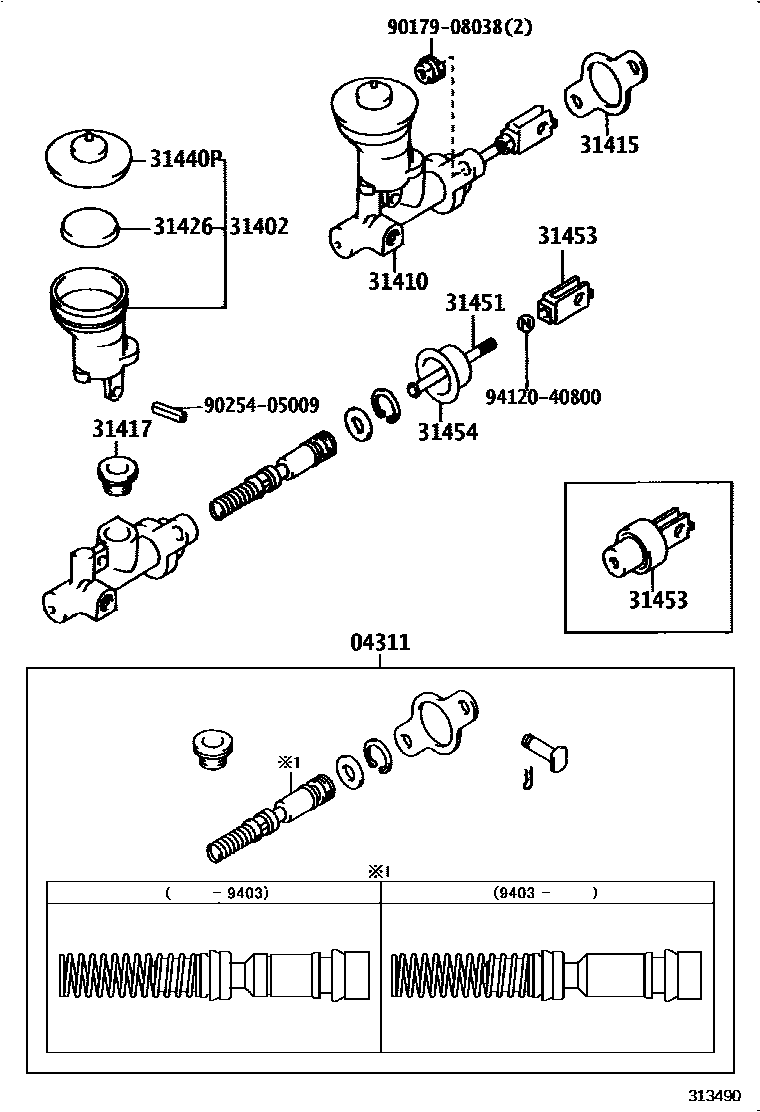

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iRN121,8#,90,VZN85,9#..MTM198904-199112

sub04311-12080

main04311-12080iRN8#,90,VZN85,9#..5F199112-199403

main04311-22040iRN8#,90,VZN85,9#..MTM198808-198904

sub04311-12080

main04311-60150iRN8#,90,VZN90..5F199403-199501

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35030iRN8#,90,VZN85,9#..MTM198808-198904

main31402-35070iRN8#,90..MTM198904-199501

sub31402-35030

main31402-35080iRN121,VZN85,9#..5F198904-199501

sub31402-35030

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35250iRN8#,90..MTM198808-199501

sub31410-35360

main31410-35260iRN121,VZN85,9#..5F198808-199501

sub31410-35271

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iRN121,8#,90,VZN85,9#..MTM198808-199501

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iRN8#,90,VZN90..5F198808-199501

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRN8#,90,VZN90..5F198808-199501

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iRN8#,90,VZN90..5F198808-199501

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iRN8#,90..MTM198808-199501

main31451-35080iRN121,VZN85,9#..5F198808-199403

main31451-36040iVZN90..R199403-199501

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-35010iVZN85,9#..R198808-198809

sub31404-35011

main31404-35011iRN121,VZN85,9#..5F198809-199501

sub31404-35013

main31453-35010iRN8#,90..MTM198808-199501

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iRN8#,90,VZN85,9#..5F199204-199501

main31454-24010iRN121,8#,90,VZN85,9#..MTM198808-199204

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
