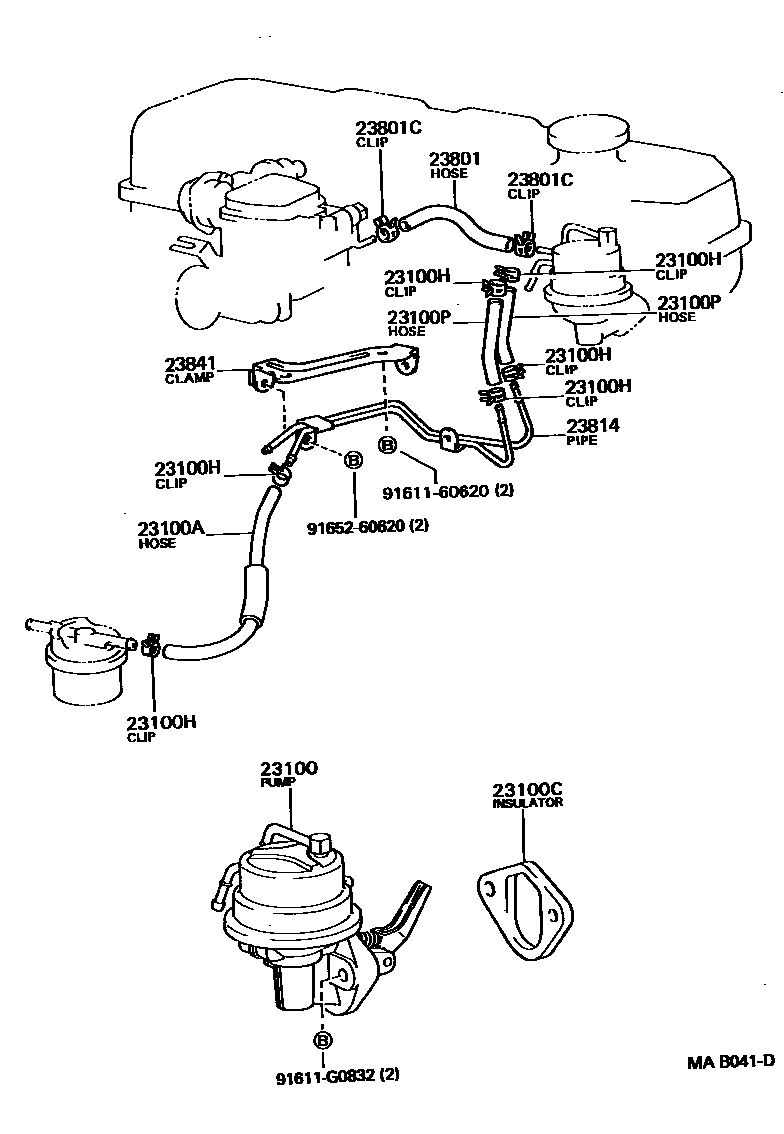

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-39336i22R..RN8#,90¥11,300198808-199008

23100AHOSE, FUEL

main23271-35070i22R..RN8#,90¥910198808-199008

23100CINSULATOR, FUEL PUMP

main90923-06010i22R..RN8#,90¥570198808-199008

23100HCLIP(FOR FUEL HOSE)

main96132-41100i22R..RN8#,90¥160198808-199008

FUEL FILTER TO PIPE

sub96132-51100¥120

main96132-41100i22R..RN8#,90¥160198808-199008

FUEL PUMP IN OUT

sub96132-51100¥120

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95333-06020i22R..RN8#,90¥480198808-199008

sub95337-06020¥570

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95333-06020i22R..RN8#,90¥480198808-199008

L=200

sub95337-06020¥570

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-41100i22R..RN8#,90¥160198808-199008

sub96132-51100¥120

23814PIPE, FUEL DELIVERY

main23814-35110i22R..RN8#,90¥4,050198808-199008

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35060i22R..RN8#,90¥740198808-199008

9161160620

main91611-60620¥90

91611G0832

main91611-G0832¥170

9165260620

main91652-60620¥110

12 parts on this diagram · 1 diagram in section
